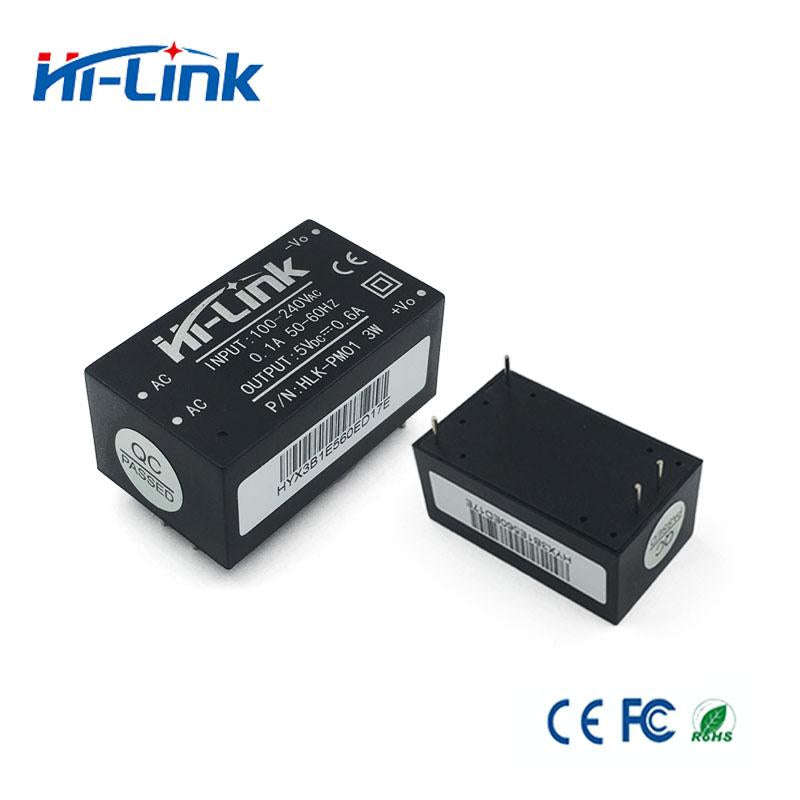

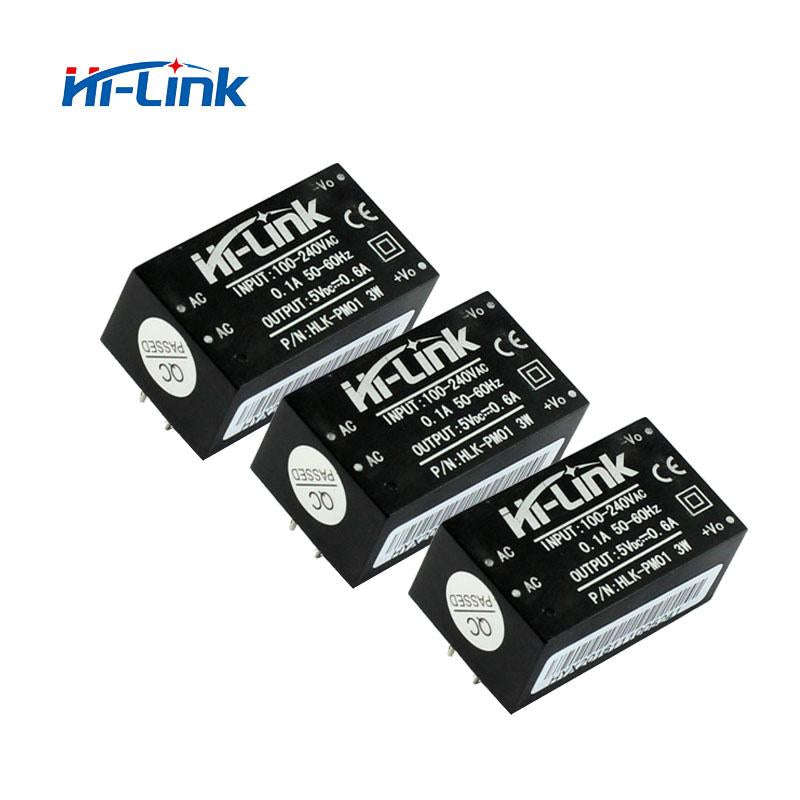

Hi-Link AC to DC Power Module 5V 3W
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Product code
C08-HL5V
Bob Shop ID
594514749
Description
These little power supplies are super handy for your new design. It's mains power (220VAC from your electrical plug) in and you have a 5V DC output (0.6A Max). They're also super compact. Take a look we also have a 12V version of the module.
Specifications
Model: HLK-PM01
| Item Name | Technical Criteria | Unit |
| Operation Temperature | -20+60 | |
| Store Temperature | -40+80 | |
| Relative humidity | 595 | % |
| Cooling way | Cooling by radiation | |
| Atmospheric pressure | 80106 | Kpa |
| Sea level elevation | 2000 | m |
| Vibration | Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes |
1.Input characteristics (test at room temperature 20 ).
| Item Name | Technical Criteria | Unit |
| Rated input voltage | 100-240 | VAc |
| Input voltage range | 90-264 | VAc |
| Maximum input current | 0.2 | A |
| Input current surge | 10 | A |
| maximum input voltage | 270 | VAc |
| Enter slow start | 50 | mS |
| Input Low Voltage Efficiency | Vin=110VAcOutput full-load69 | % |
| Input High Voltage Efficiency | Vin=220VAcoutput full-load70 | % |
| Long-term reliability | MTBF100000 | h |
| Load rated output voltage | +50.1 | VDc |
| Full rated output voltage | +50.2 | VDc |
| Short-term maximum output current | 1000 | mA |
| The maximum output current for a long time | 600 | mA |
| Voltage Regulation | 0.2 | % |
| Load Regulation | 0.5 | % |
| Output ripple and noise (mVp-p) | 50 Rated input voltage, full load. Using 20MHz of bandwidth, The load side 10uF and 0.1uF capacitor to be tested. | mV |
| Switch overshoot amplitude | (Rated input voltage and output load plus 10%)5 | %VO |
| Output over-current protection | 150-200% of the output maximum load | A |
| Output short circuit protection | Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal |

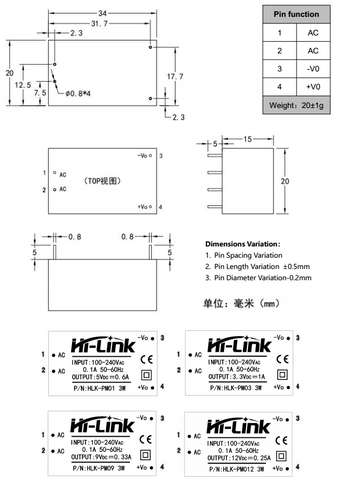

Weight and Dimensions
