HiFi Audio Digital-to-Analog Converter

HiFi Audio Digital-to-Analog Converter

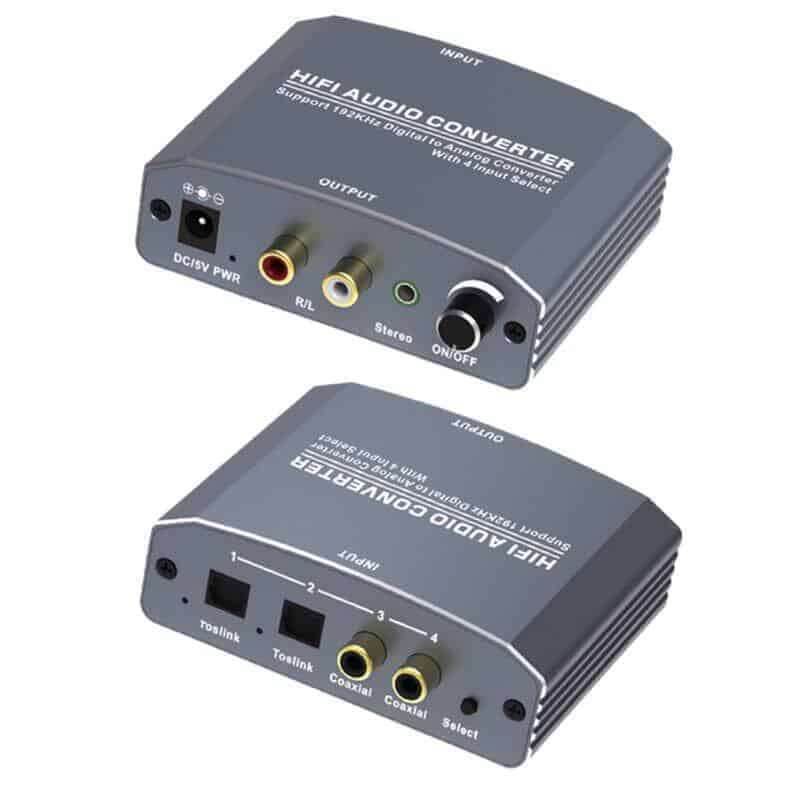

This compact HiFi Audio Digital-to-Analog Converter is an audiophile-grade, plug-and-play solution designed to bridge the gap between modern digital audio sources and classic analog sound systems. It seamlessly converts high-resolution digital signals via Toslink or coaxial inputs into pristine, hum-free analog stereo audio, output through a standard 3.5mm headphone jack or dual RCA ports.

Product features

• Lossless high-res sampling: supports audio sampling rates at 32-to-192kHz, delivering ultra-low distortion and retaining the fine musical details often lost by standard factory headphone jacks.
• Dual digital inputs: equipped with both Toslink and coaxial inputs, letting you easily switch between devices.
• Dual analog outputs: features a dedicated 3.5mm stereo headphone jack and gold-plated left/right RCA outputs that can be used simultaneously to drive both headphones and an amplifier.
• Active noise reduction: built-in anti-static circuitry and electromagnetic shielding eliminate ambient hiss, ground-loop hum, and audio lag, ensuring a dark, quiet background between tracks.

Specifications

• Input power: 5VDC, 1A
• Maximum power consumption: 0.5W
• Input audio: Coaxial or Toslink
• Output audio: RCA or 3.5mm audio jack

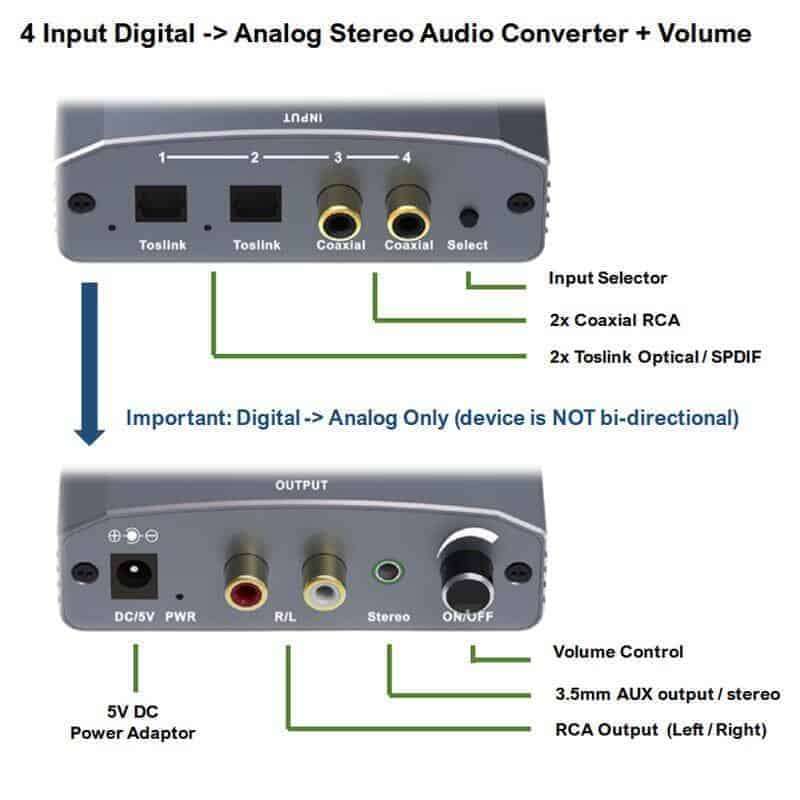

• Input audio connector:
  • 2 x Toslink
  • 2 x Coaxial
• Output audio connector:
  • 2 x RCA
  • 1 x 3.5mm audio jack
• Sampling rate: 32kHz, 44.1kHz, 48kHz, 96kHz, and 192kHz @ 24-bit
• Operating temperature: 0°C~+70°C
• Operating humidity: 10%~85% RH (no-condensation)
• Storage temperature: -10°C~+80°C
• Storage humidity: 5%~90% RH (no-condensation)
• Dimensions: 90 x 61 x 23 (L x W x H in mm)

Typical applications (not limited to)

• Upgrading smart TV audio to legacy audio systems: modern flat-screen TVs have dropped analog RCA and 3.5mm outputs entirely, leaving only Optical (Toslink) or HDMI eARC. This DAC bridges that gap seamlessly.
• Low-latency gaming with studio headphones: modern consoles like the PlayStation 5 or Xbox Series X/S do not feature native analog audio ports, and connecting headphones directly to a wireless controller can introduce compressed audio and battery drain.
• High-fidelity desktop PC/laptop audio: internal computer sound cards are surrounded by heavy electromagnetic interference (EMI) from the CPU, GPU, and power supply, which often manifests as a faint background hiss or buzzing through your speakers.
• Professional AV distribution and zone mixing: in commercial environments like sports bars, restaurants, or fitness centers, audio needs to be routed from a centralized digital media matrix into localized, zone-specific analog mixing desks.

What is in the box?

• 1 x HiFi Audio Digital-to-Analog Converter
• 1 x Power supply
• 1 x Instruction manual
