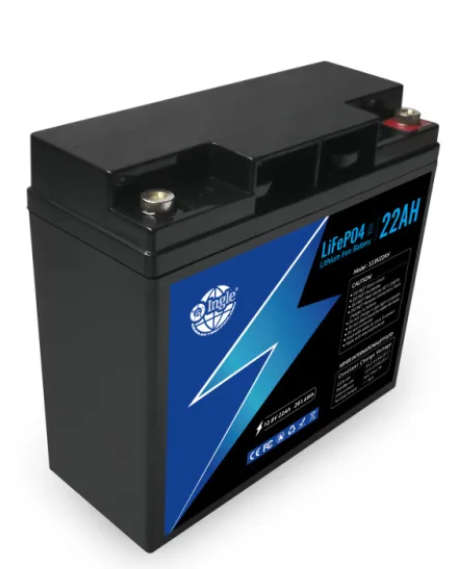

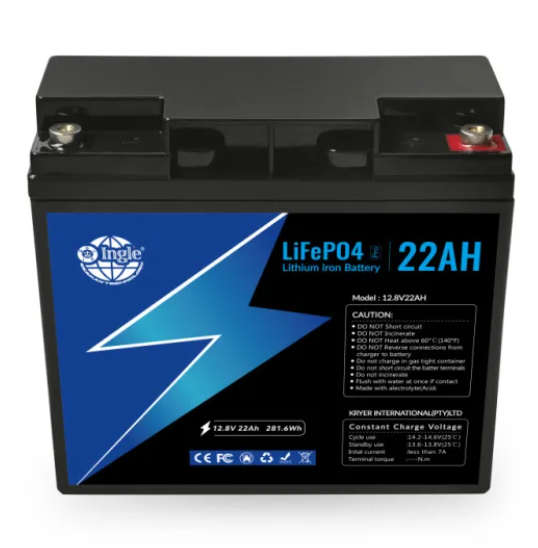

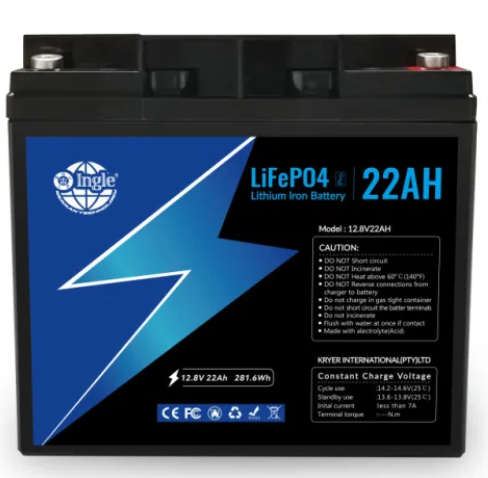

High-Cycle Lithium 12.8V 22AH LifeP04-Pack - Ingle

12.8v 22ah Ingle Lithium Battery

12V 22Ah LiFePo4 Single Battery Module
Nominal Voltage 12.8V
Charge cut-off voltage 14.6v
Discharge cut-off voltage 10v
Max Discharge Current 22A
Discharge Pulse Current 66A
Design Life: -/+ 3-5 Years
Charging working temperature 0-45C
Dimensions (LxWxH): 181 X 77 X 167 MM
Weight: Approx. 1.58kg
Can Be Connected in Series & Parallel
4 series 4 parallel
3000 cycles @ 50% Depth Of Discharge (DOD)

Warranty: 24 Months Repair

Warranty Condition:

A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
