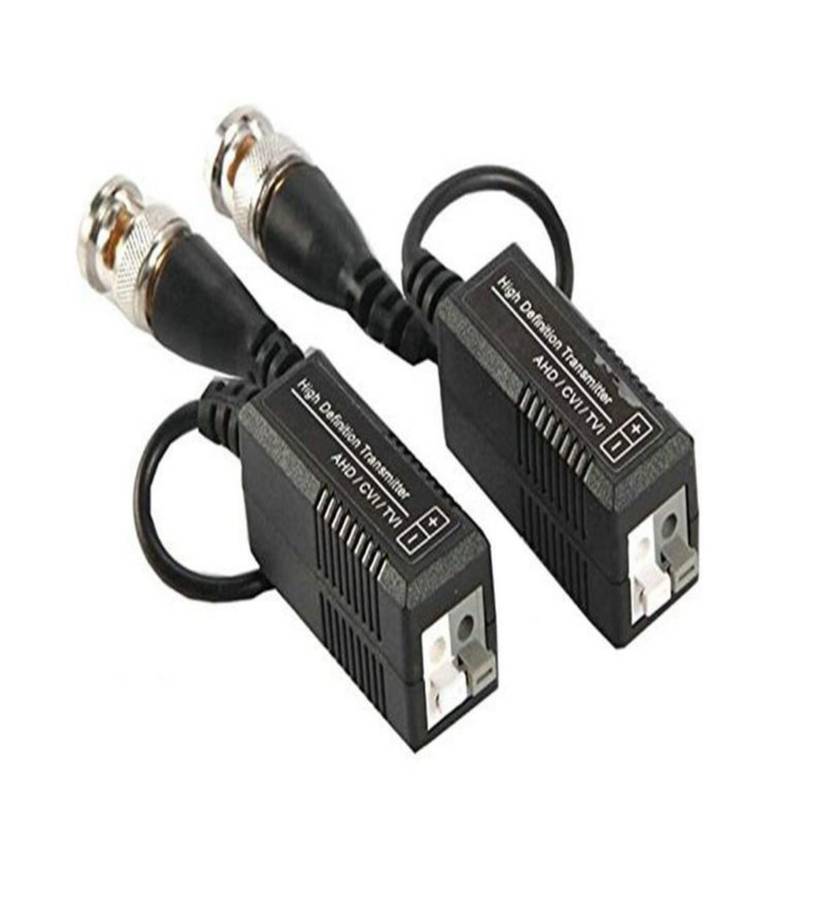

High definition 5Mp passive HDCVI single channel transceiver

No power required
AHD/HDCVI/HDTVI video format compatible
Real time transmission
Exceptional interference rejection
Wave Filter Design,Anti-Static Design
Long-distance transmission and high-quality image
Compact size and easy installation

cost-effective

Specifications:

ITEMS SPECIFICATION
Transmission Distance
HDCVI 720P:600m
AHD 960H/1080P:300m
HDTVI 720P/1080P:200m
Video
Compatible Format AHD/CVI/TVI
Resolution 720P/960H/1080P
Operating Frequency DC to 6MHz
Common-mode/Different-mode rejection 15KHz to 5MHz 60 dB typ
Attenuation 1.5dB typ Max
Impedance Male BNC:75
Terminal:100
Wire type
Network Wiring One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm)
Category Type 5 or better
Impedance 100`b120ohms
DC Loop Resistance 52 ohms per 1000ft(18 ohms per 100m)
DC Loop Resistance Different Capacitance
Power
External power required No
Protection
Surge Protection Renewable solid state surge protection
Video Input 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)
Video Output 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)
Connector
Video input/output Male BNC / Push terminal
Mechanical
Housing ABS engineering plastic
Body Color Black
Environment
Operating Temperature -20-70
Relative Humidity 0-95%(non-condensing)
Storage Temperature -40-80

1 Channel passive video transceiver.
Receiving and transmitting video signals over UTP cable without using the power supply.
Video transmission via UTP CAT5 cable.
Excellent noise interference rejection and built-in transient protection.
Cost-effective point-to-point transmission.
High quality image.
Twisted Pair Video Baluns, for sending video signals up to 600m (B/W) / 300m(Color)
1 Channel passive video transceiver.

What's in the box
1X High-Definition 5MP Passive HDCVI Single Channel Transceiver
