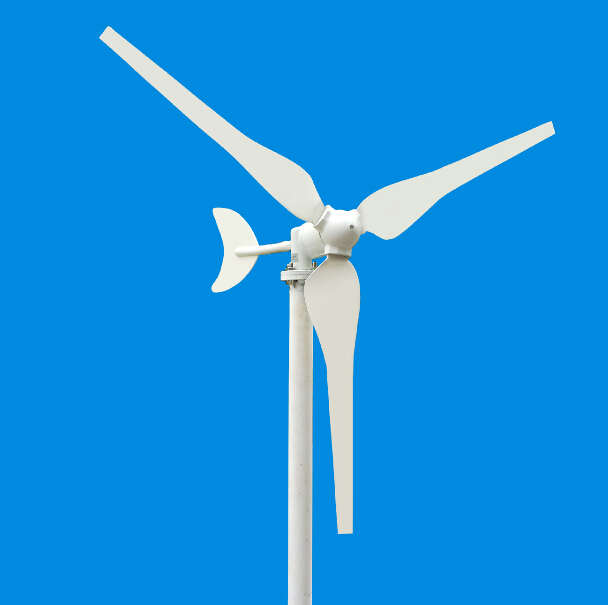

High Efficiency 100W DC12V/24V 3 Blades Wind Turbine Generator



High Efficiency 100W DC12V/24V 3 Blades Wind Turbine Generator

Wind is in nature inexhaustible energy, but also is one of the energy not pollute the environment.
Changing the wind energy to power energy is used in industry production and normal life, which is human ideal of the energy acquisition modes.This wind turbine generator includes a high efficiency motor to get the most from the turbine. This turbine comes with one of the best warranties in the industry.

This wind generator turbine is small yet versatile turbine and can produce up to 100 Watts Max.
It features a special coating that protects the generator, making it suitable for locations.
The turbine begins to supply power in wind speeds as low as 3m/s.

Features :

1. High efficiency, low volume and low weight.
2. Carbon fiber baldes, high efficiency of anti-wind ability.
3. Blades with the ability of automatically stall protection under strong wind.
4. Can connect with solar panel togther.
5. Can produce two types : DC and AC


Details specification :

Model	100W
Name	Hyacinth :)
Rated power	100W
Rated DC voltage	DC 12V/24V for option
Rated current	8.8A/4.4A
Rated speed	860r/m
Max power	115W
Number of blade	3 pcs
Starting wind speed	3 m/s
Cut-in wind speed	3.5m/s
Cut-out wind speed	15m/s
Security wind speed	45m/s
Rated wind speed	12m/s
Engine	Three-phase permanent magnel generator
Rotor diameter	1050mm
Blade material	Carbon fiber reinforced plastics, about 500mm length
Output line anti-winding device	Overall three-phase commutator
Over-speed wind protection	Tip stall protection + turned protection + Electromagnetic brake
Life span	10 years
Equipment surface protection	Galvanization plastic coating
Working temperature	-40C~70C
N.W.	2.8kg
Packing material	Carton box and foam material
packing dimension	645*280*240mm
G.W.	3.5kg
