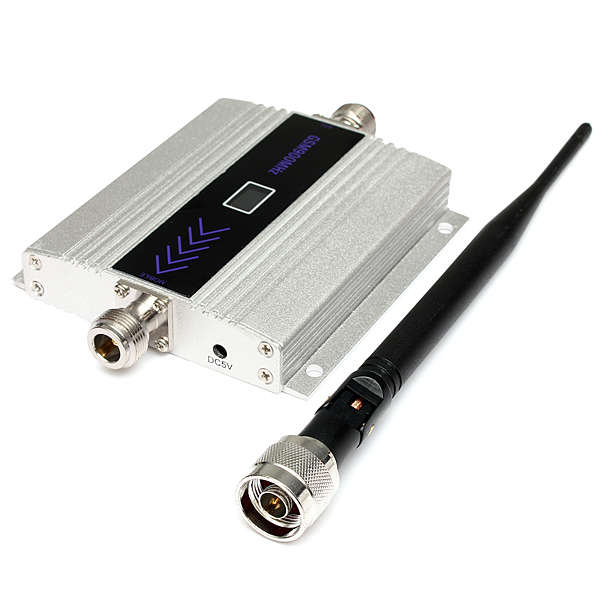

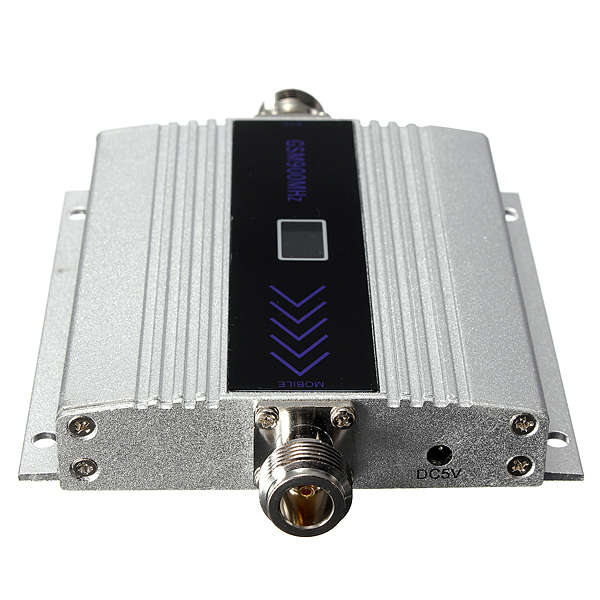

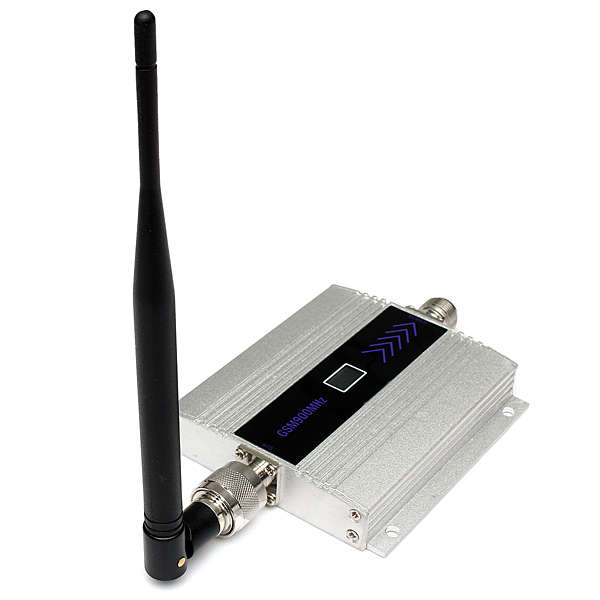

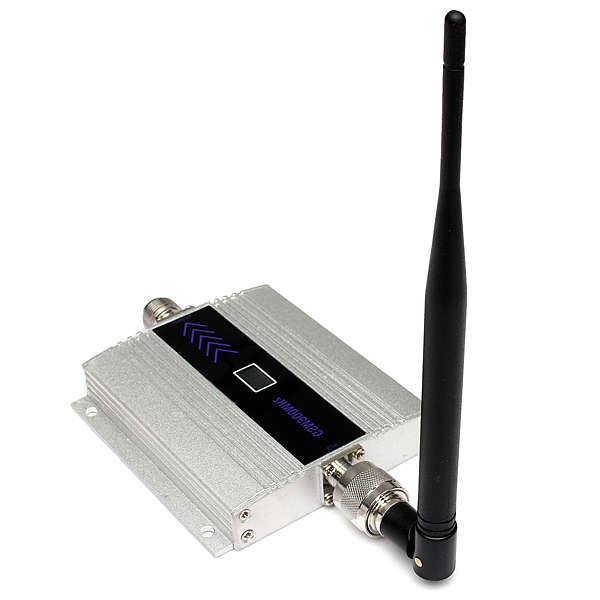

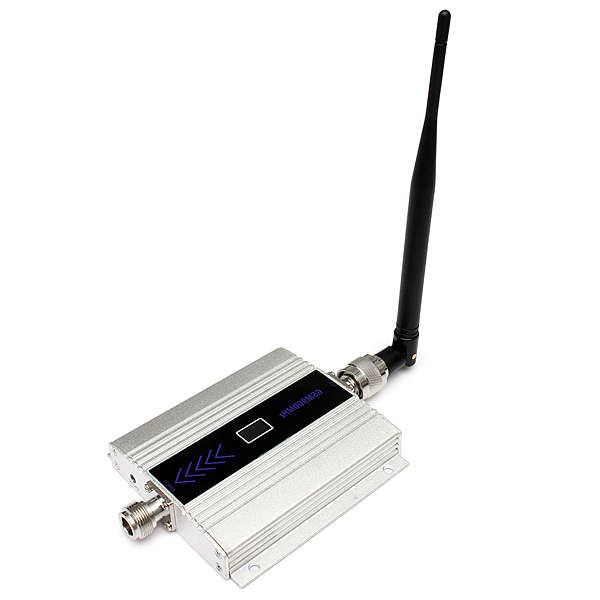

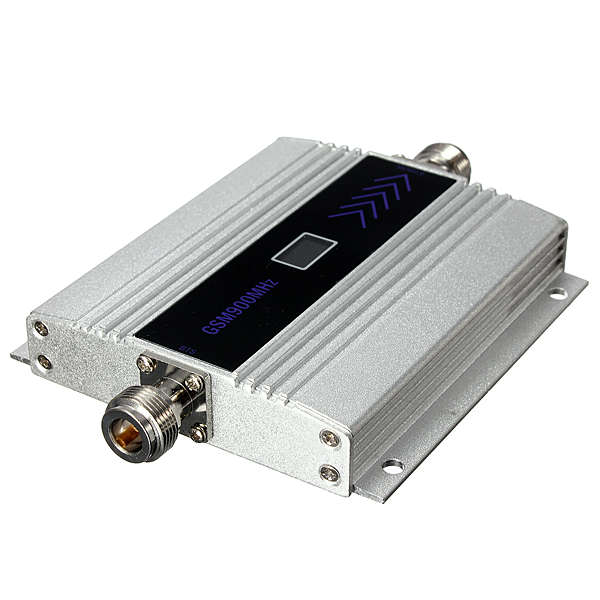

High Gain GSM 900Mhz Signal Booster Amplifier with Cable + Antenna



High Gain GSM 900Mhz Signal Booster Amplifier RF Repeater with Cable + Antenna

This mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals.
It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. It is ideal for house, home, office use.

Features :

1. High gain, fully integrated 900 MHz antenna system
2. Powerful amplifier enables up to + 85 dB of signal gain including cable loss
3. Intelligent signal processing and real time adaptive operation
4. Automatically adjusts power levels as needed to ensure a consistent coverage footprint
5. Reprogrammable (in the field) enabling spectrum or carrier reconfigurations as needed
6. Auto-Track LED diagnostics displays aid install and operation
7.  Not interfere with other wireless frequencies or radio devices
8. Dependability stand by GB6993-86 standard
9. Compatiblity of electromagnetism according with ETS300 609-4

Specifications :

1. Frequency range : Up link GSM 890-915
                                   Downlink GSM 935-960
2. Gain(dB) GSM Up link : 55
3. GSM Downlink : 60
4. Gain adjustable range : MGC 30dB
5. Output power(dBm) :   20
6. Pass band ripple GSM : 4dB
7. Guard band rejection : GSM(BW-60dB) 42 MHz (BW-70dB) 45 MHz
8. I/O impedance : 50/N Connector
9. I/O return loss : ≤-10dB
10. Noise igure : ≤-8dB
11. Intermodulation attenuation (Po=13dBm) : ≥40dBc
12. Transmission Delay : ≤0.5us
13. Ambient temperature : -10~50
14. Power supply : AC110-220V±10% 45~55Hz
15. Size : 14 x 10 x 2cm(L x W x H)

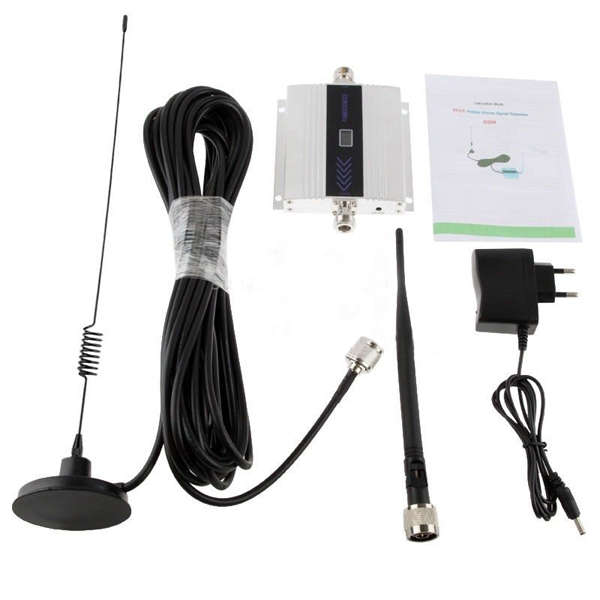

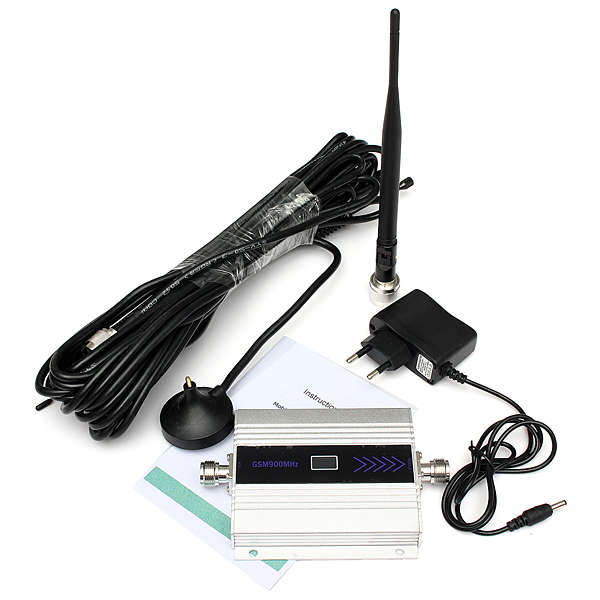

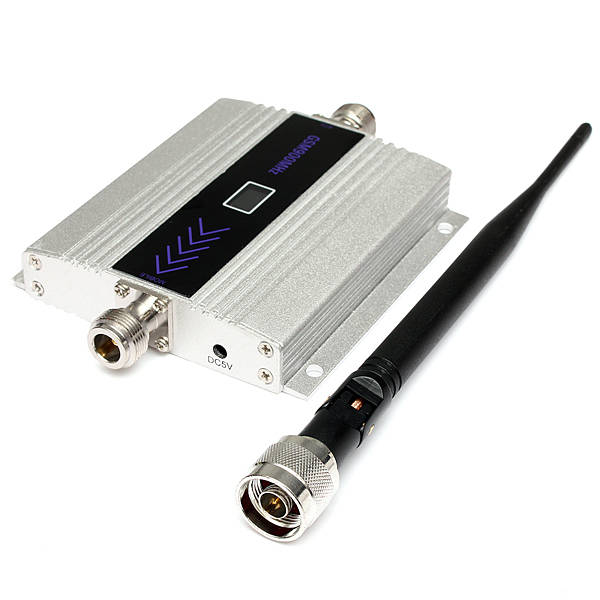

Package includes :

1 x GSM Signal Booster
1 x Indoor antenna

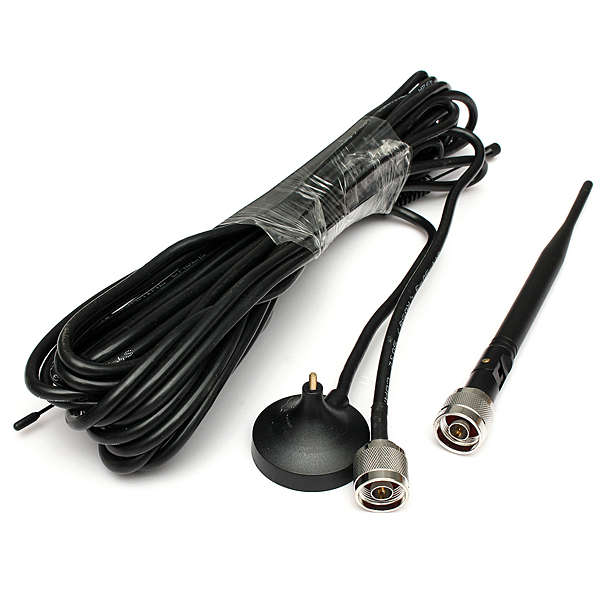

1 x Outdoor sucker antenna (comes with 10m cable)
1 x Power adapter (Comes with a mini plug adapter according to your country :)
1 x User Manual
