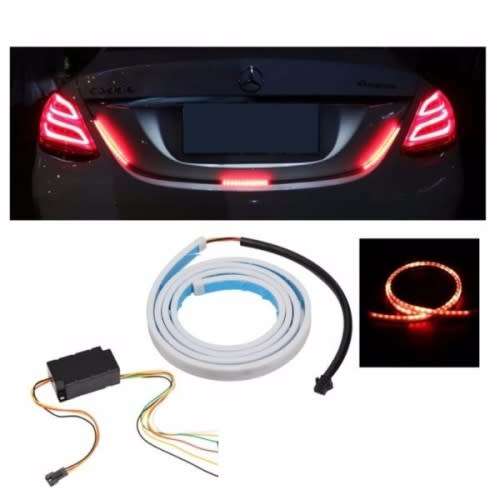

This 5050SMD LED tailgate lighting bar you can mount them along the tailgate as taillights, left/right turn signal lights, brake lights, and backup reverse lights.
Function as tail light, left/right turn signal light, brake light and backup reverse light.

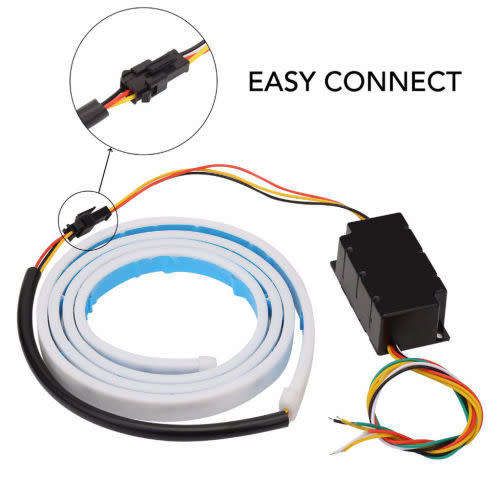

Plug and play connectivity with flat 3-pin trailer connection harness for tail/brake/signal.
With 3m sticker, easy to use, professional installation is highly recommended (No instruction is included).
Overload protection, short circuit protection and over temperature protection. Waterproof, universal fit for most car
Specification:
Type: LED Tailgate light bar
Material: Silica gel, plastic
Item Quantity: 1 pcs
LED Type: 5050SMD
Voltage: DC 12V
Power: 22W
Waterproof:IP65
Light Length : Approx. 1.2m
Functions:
Running: multi light
Brake: Flowing red light
Turn left: Flowing left direction red light
Turn right: Flowing right direction red light
Hazards: Flowing double direction red light
Installation:
Red line: ACC or connect to the battery Positive
Black line: GND or connect to the battery Negative
Yellow line L: Turn left light line
Yellow line R: Turn right light line
Green line: Connect to the small light’s line (12V), it works on multi light
White line: Break light line

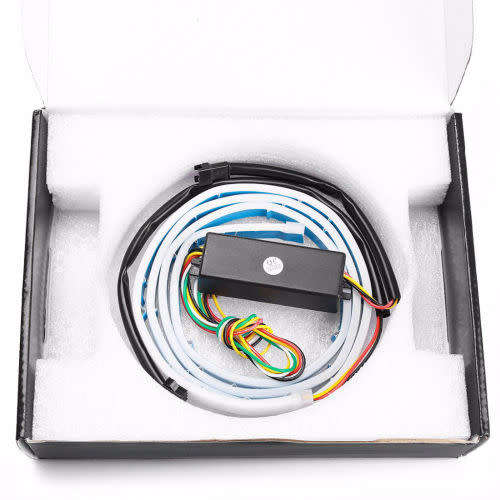

Package:
1 x 120cm LED Tailgate light bar
