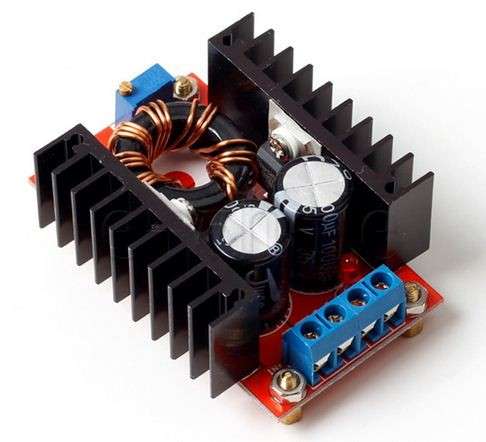

Name: High Power ADJ DC Boost Module 150W 10A
SKU: POW-00083
Price: 95.35 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

High Power ADJ DC Boost Module 150W 10A

2 were available / new

R95.35

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Netram Technologies677

98.45 % Positive ratings

Get it now, pay later

Condition

New

Location

South Africa

Customer ratings:

1 ratings

Product code

POW-00083

Bob Shop ID

580781927

Features:

Properties: non-isolated step-up module
Size: Length 65MM * High 23MM * (W 56.5MM including heatsink)
Input: IN + input positive level, IN-input negative
Output: OUT + output positive level, OUT-output negative
Wiring: free soldering terminals
Input voltage :10-32V
Output voltage: adjustable (12-35V)
Output Current: 6A (MAX)
Input Current: 10A (MAX) (Please enhance heat dissipation than 10A)
Output power: natural cooling 100W (MAX), plus fan 150W (MAX)
Easy to drive 65W — 90W dual-core laptops, using battery to boot 19V 3.42A laptop, the temperature of the module is only 45^oC
Conversion efficiency: 94% (input 16V output 19V 2.5A when measured) (for reference only)
Operating temperature: Industrial grade (-40 to +85 ) (ambient temperature exceeds 40 degrees, lower power use, or add a fan)
Full load temperature rise: 45
Non-Load Current: 25mA typical
Short Circuit Protection: None (Please install overcurrent protection devices)
Input Reverse Polarity Protection: None, at the input diode in series
Weight: 70G

Applications:

DIY an output adjustable vehicle power supply, only need access to your 12V power input, the output voltage can (12-35V) continuously adjust, but the output voltage can not be lower than the input voltage.
Universal on-vehicle laptop power supply. Input connector on your 12V power supply, the output voltage is adjusted to your laptop to work.
Boost charger, you can use the 12V power supply is higher than 12V battery charging, for example, 24V battery.
Power for your electronic devices, as long as the voltage and current of the voltage regulator to your needs can not exceed the rated current is working properly.
Primary front level system power supply, when you do a project at the time of 10-18V input when the system board and you need to supply 24V and about its great power, with ordinary DC-DC module power is too small , then you choose this module we will be your best choice, do not debug directly on the machine to work, easy to do and efficient power boost.
