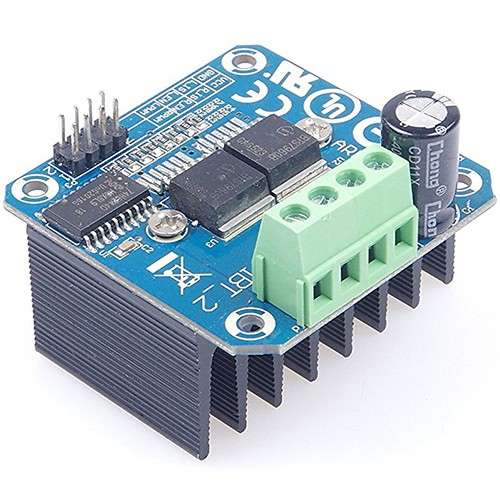

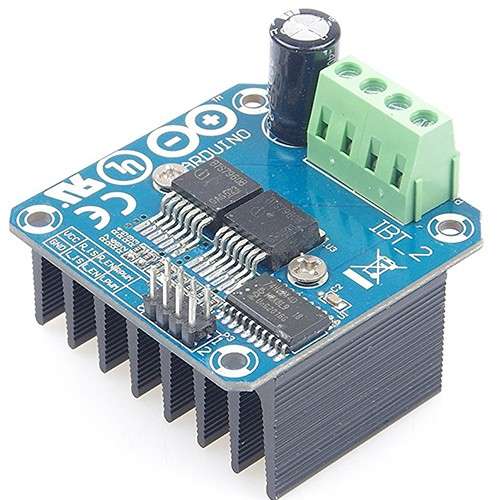

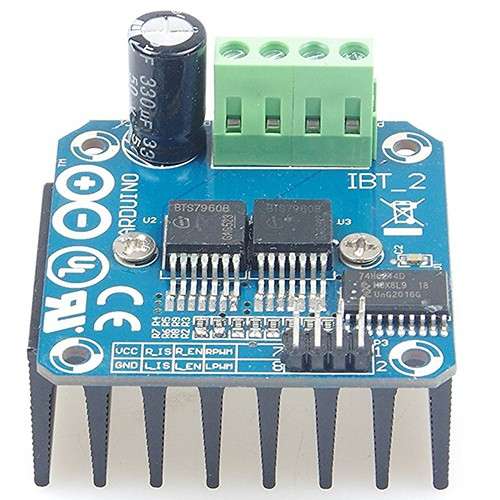

High-Power Motor Drive Module - BTS7960

Introducing our High-Power Motor Drive Module - BTS7960, the ultimate solution for robust and reliable motor control in a variety of applications. Engineered with precision and packed with features, this module ensures superior performance and safety in high-current environments.

Key Features:

• Utilizes Infineon's BTS7960 H-bridge driver IC for exceptional reliability
• Dual BTS7960 ICs support a full H-bridge driver circuit, enabling strong drive and braking capabilities
• Incorporates overtemperature and overcurrent protection for enhanced safety
• Uses a 74HC244 IC to effectively isolate the microcontroller and motor drive signals and supplies
• Supports high currents up to 43A for demanding applications

Applications:

• Current diagnostic
• Slope adjustment
• Dead time generation
• Overtemperature, overvoltage, undervoltage, overcurrent protection
• Short circuit protection

Specifications:

• Motor Drive Input Voltage: 6V - 27V
• Model: IBT-2
• Maximum Current: 43A
• Signal Input Level: 3.3V - 5V
• Control Mode: PWM or level controlled
• Duty Cycle: 0% - 100% supported

Whether you're working on robotics projects, industrial automation systems, or smart car applications, the High-Power Motor Drive Module - BTS7960 delivers unmatched performance and versatility. Experience precise motor control and unparalleled reliability with our advanced motor drive module.
