SELECTED OPTION:
TYPE: 1000M/220V
Note:

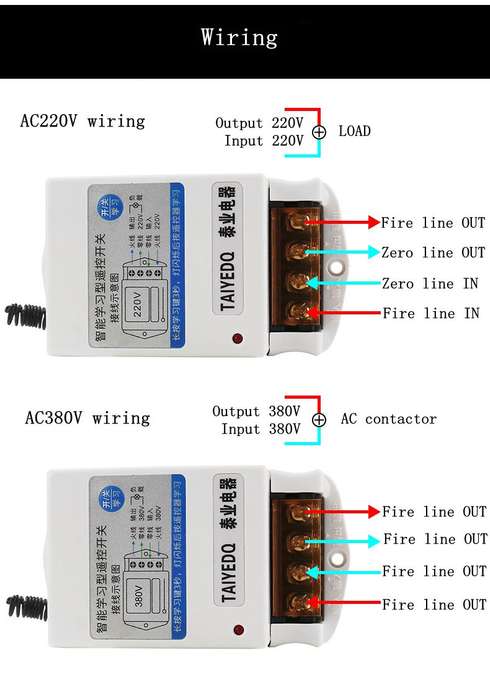

380V must have a contactor 0-4KW choose CJX2-1810 11KW-20KW choose CJX2-6511 220V contactor is selected according to the your application (resistive load, slowly heating and luminous lamps, heating wires, etc.) No contactor is required for less than 5KW. If it is exceeded, it is required. (Inductive loads, motors with large currents, water pumps, etc.) No contactor is required for less than 1.5KW. If it is exceeded, it is required.
Feature:
Product specifications: 220V/380V (optional) Rated voltage: single-phase 220V/380V (optional) Load type: motor, water pump, fluorescent lamp, energy saving lamp, etc. Remote control battery model: 23A 12V Product configuration: isolation voltage transformer, 30A relay Remote control distance: 1000-5000 meters (optional) Control current: When using 220V, it should be used within <=30A, and the motor is recommended to be used within 3KW. AC contactor is required for more than 3KW.when 380V is used, it needs to be loaded with AC contactor.
Product function description: 1: Press on and off: you can switch the product manually 2: How to pair the code: Press and hold the on button for three seconds, the power indicator will flash, and then press the on or button on the remote control, the power indicator will stop flashing, indicating that the code is successfully paired. 3: How to clear the code: Press and hold to learn to build for 6 seconds, the power indicator flashes at intervals, indicating that the clearing is successful.
Package includes: (optional)

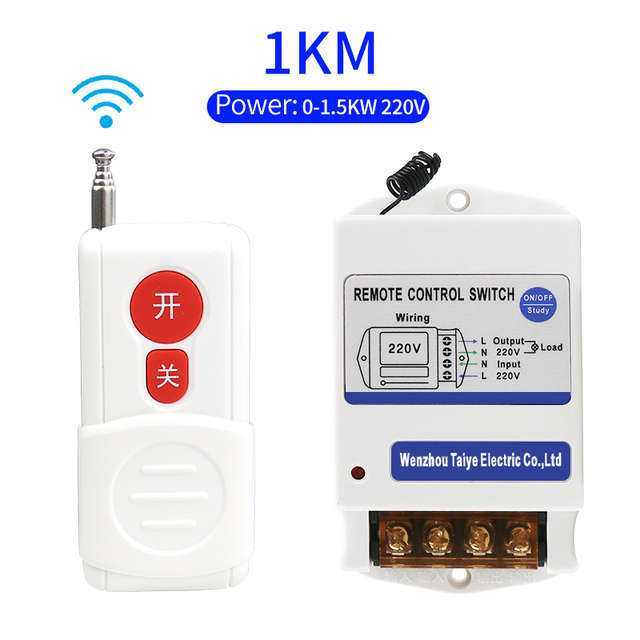

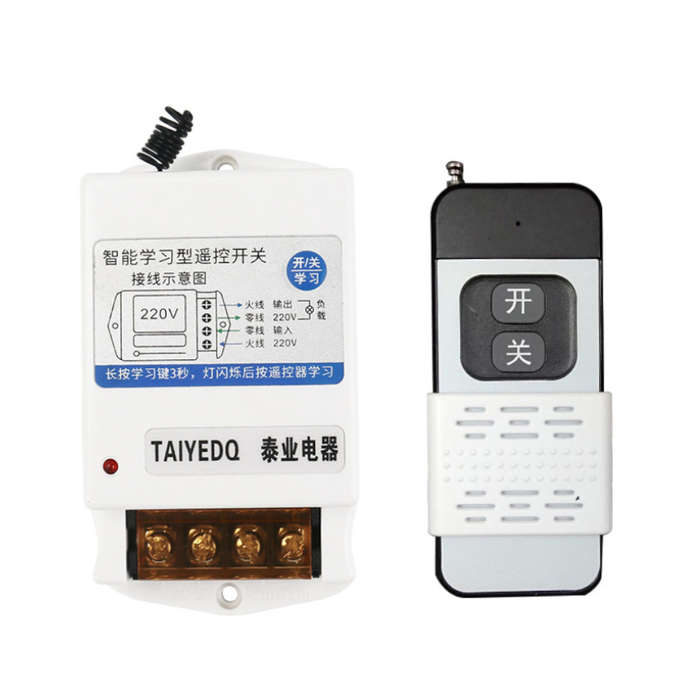

1000m/220V version: 1 xController 1 xRemote Control (battery not includes)

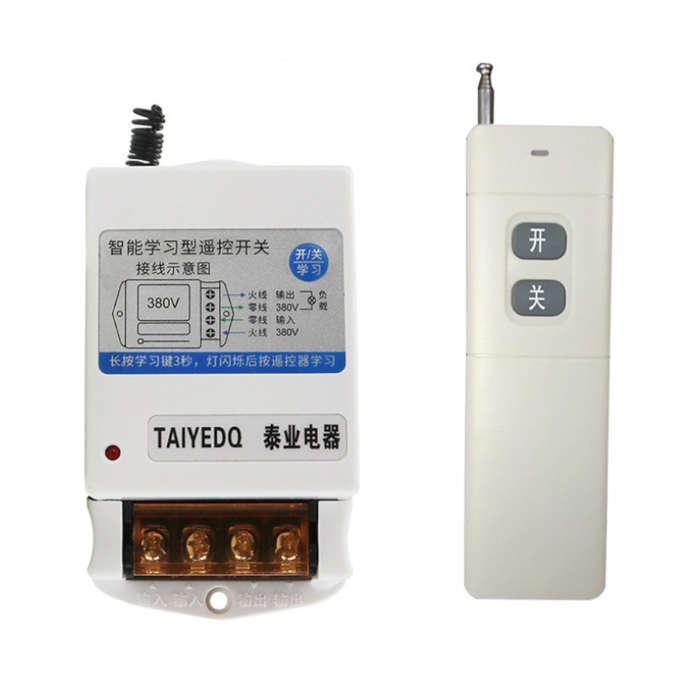

1000m/380V version: 1 xController 1 xRemote Control (battery not includes)
3000m/220V version: 1 xController 1 xRemote Control (battery not includes)
3000m/380V version: 1 xController 1 xRemote Control (battery not includes)
5000m/220V version: 1 xController 1 xRemote Control (battery not includes)
5000m/380V version: 1 xController 1 xRemote Control (battery not includes)
1000m Remote Control version: 1 xRemote Control (battery not includes)
3000m Remote Control version: 1 xRemote Control (battery not includes)
