HIGH QUALITY 1/3 SONY 600TVL WATERPROOF CCTV CAMERA CCD

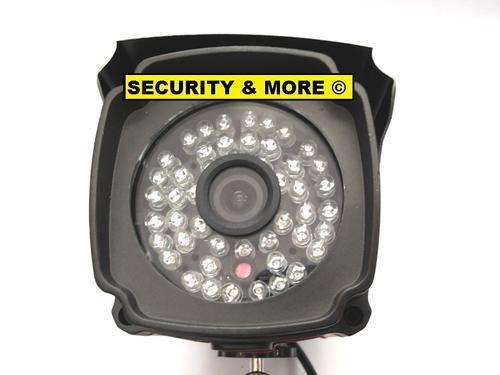

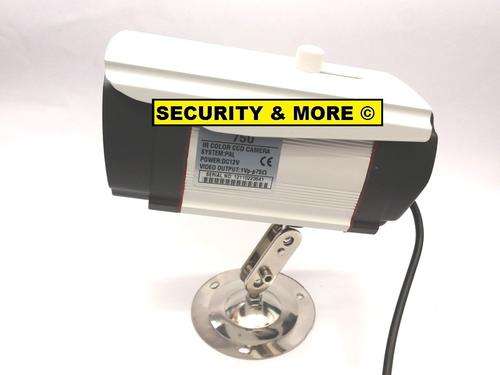

HIGH QUALITY SONY 700TVL WATERPROOF CCTV COLOUR CAMERA CCD

Features:

CCD BOARD Model Sony 4140+673
DSP+CCD CXD4140GG+D5148GG+673
Exposure Electronic exposure
Image Sensor 1/3 Sony 960H CCD Sensor
Signal System PAL/NTSC
Pixels PAL: 1020H× 596V (610000 pixel) NTSC: 1020H× 508V (520000 pixel)
Effective Pixels PAL: 976H× 582V (570000pixel) NTSC: 976H× 494V (480000pixel)
Definition 650/700TVL(BW) 650/700TVL(BW)
Minimum illumination 0.01Lux/F 1.2
Video Output 1.0Vp-p75Ω
Sync Internal Synchronization
Shutter speed 1/50(1/60) ~1/100, 000(s)
AGC(automatic gain control) +18dB maximum

Gain Control Auto
DNR (Digital Noise Reduction): 2DNR Support 0~15 16 grade adjustable
Wide dynamic Digital wide dynamic 0-60
OSD support
Automatic gain control 0.25/0.50/0.75/1.00
Aperture control yes
Backlight compensation HLC / Backlight Compensation
Backlight compensation Auto
SNR 52dB(minimum) / 60dB(Maximum)(AGC automatic closing)
Gamma correction 0.45/1.0
White Balance On / OFF switch
Power DC12V± 5%
Ambient temperature -20 to +60
Lens: 4mm

Package Includes:

• SONY 700TVL WATERPROOF CCTV COLOUR CAMERA CCD
• Mounting Base with screws
• Power supply
