Features:

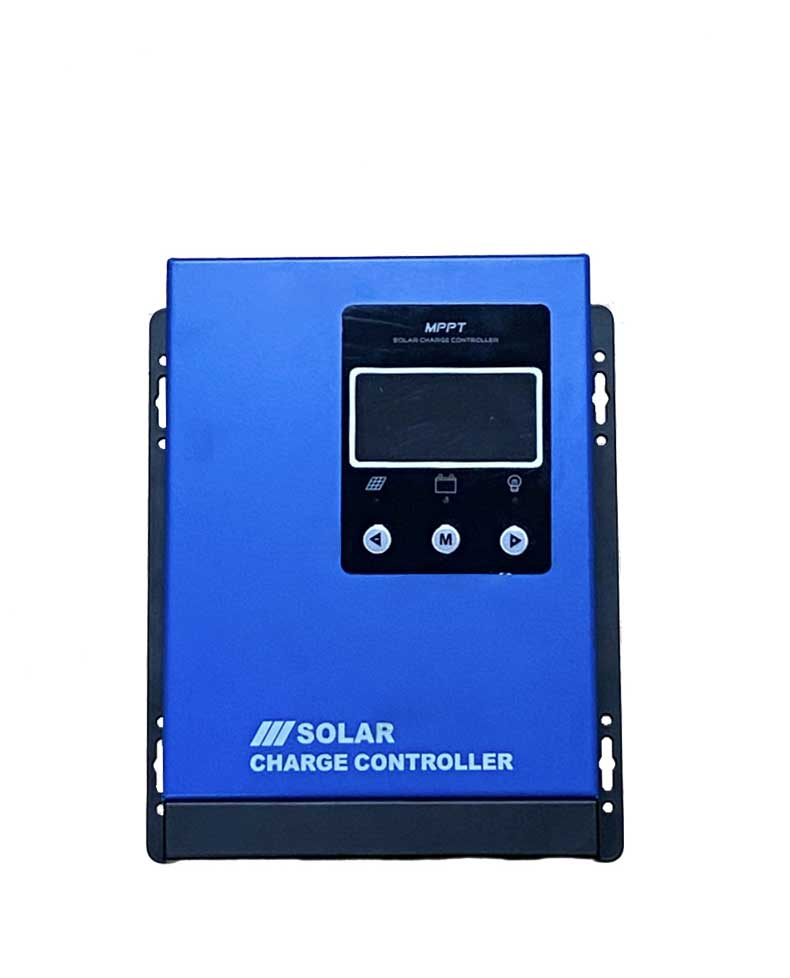

60A MPPT Solar Charge Controller
Specifications
Max. Charge Current: 60A
System Voltage: 12V / 24V / 36V / 48V Flexible
Max. PV Voltage(Voc): 145Vdc
Solar Operating Voltage:
-20 - 145Vdc - 12V
-36 - 145Vdc - 24V
-48 - 145Vdc - 36V
-64 - 145Vdc - 48V
-PV Input Power:
-12V : 780W
-24V : 1560W
-36V : 2340W
-48V : 3120W
Operation Temperature: -25 ~ 60°C
Innovative MPPT algorithm, tracking accuracy up to 99%, significantly improve the
efficiency of photovoltaic power generation;
Intelligent battery charging management to extend the service life of battery;
The LCD + LED display interface enables users to know the operation status of
the system in real time;
The charging procedures of sealed, colloidal and open lead-acid batteries and
lithium batteries are optional, which is convenient and flexible:
Excellent heat dissipation design and intelligent control cooling fan
What's in the box
1 x Solar charge controller
1 x Temperature sensor
1 x Manual
