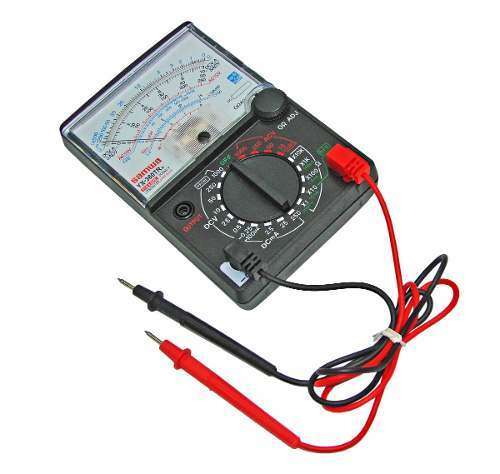

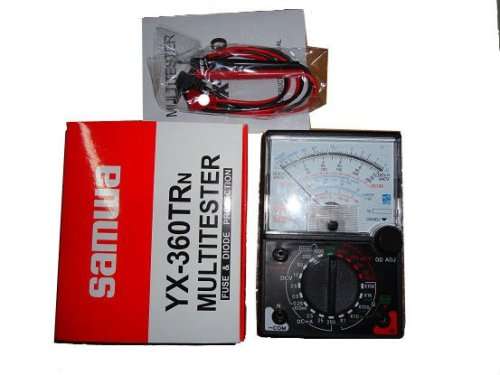

High quality SUNWA Brand YX 360TRN Analog Multimeter

                               XP ELECTRONICS

                         WHATSAPP 0628058899

Measure AC&DC voltage, DC current, resistance, AF level, transistor parameter, load current, load voltage, capacitance,      inductance Excellent DC resolution factor of 2mV and expanded resist-ance measurement from 0.2Ω to 20MΩ Series capacitor terminal (OUTPUT) blocks DC to enable measurement of only AC components   A large and bright meter with a scale length of 80mm and ifs sensitivity of 44uA at full scale Fuse and Diode protection

Measures hFE to 1000 using optional TR connector   DCV: 100m/500m/2.5/10/50/250V/1000V ± 4%f. S. ACV: 10/50/250V/1000V ± 5%f. S.   DCA: 100u/2.5m/25m/250mA ±4%f. S. OHM: 2K/20K/200K/2M/20MΩ ± 4% of arc. dB: -10~+62dB L1: 150u/1.5m/15m/150mA HFE: 0~1000(with TR connector)

Power supply: R6 (1.5V)*2, 622F 9V*1 Size weight: 148*100*35mm
