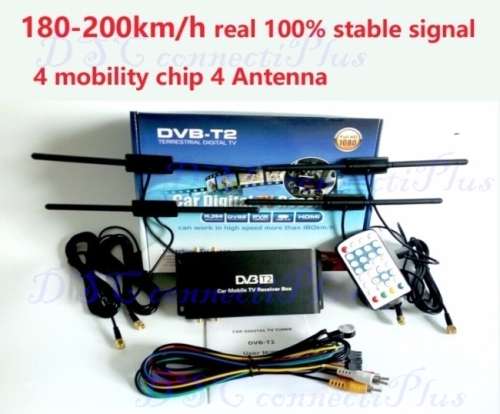

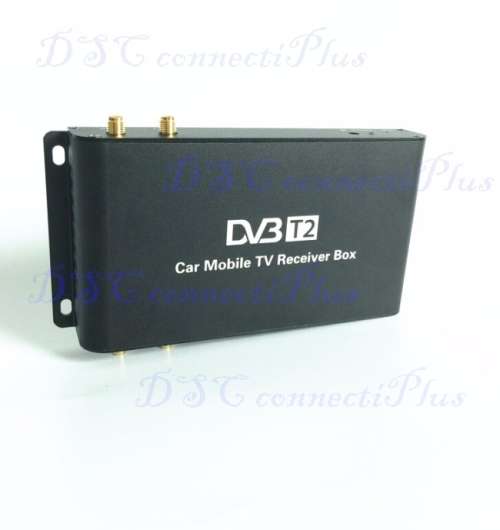

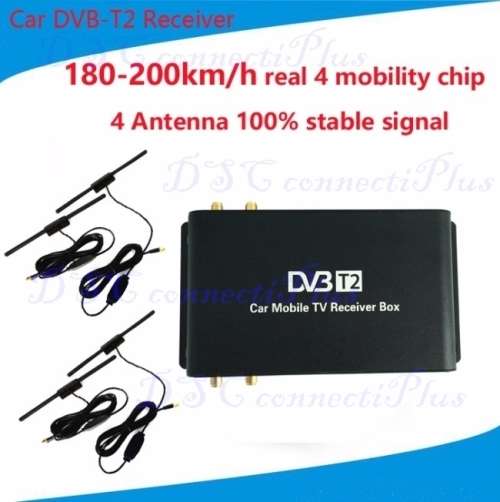

High Speed 180-200km/h 4x Antenna 4x Mobility Chip HD 1080P Car Digital DVB-T/T2 TV Tuner Receiver w/ Remote Control (Black)..!
Product Information
FEATURES & SPECIFICATIONS
Resolution: Full HD tuner DVB-T2, support up to 1080P
PAN/NTSC: Automatic PAL/NTSC conversion
Scan: Auto and manually scan all available TV and radio channels
Channels Number: 1000 channels memory
Aspect Ratio 16:9 and 4:3
OSD Language: Multilanguage
EPG: Small window screen picture with EPG graphic menu, 7-Day EPG function
Channel Search: Auto search & Manual search function
Software upgrade: Software upgrade via USB
Teletext: Support teletext / subtitle / audio language selection, VBI Teletext, Teletext / Bit Map subtitle
Control: Parental control
Channel Save: Automatic save for last channel
LCN: Support Logic Channel Number (LCN)
USB: USB2.0 Front Panel
Item Size: 16 x 8 x 2.5cm
Color: Black
1. Main Chipsets
Flash Memory: 32MB Serial Flash
DDR2 Memory: 512MB
2. Tuner
Input Frequency: VHF: 174~230MHz, UHF: 470~862MHz
RF Input Level: -20 ~ -83dBm
IF Bandwidth: 6MHz-7MHZ and 8MHZ
Modulation: QPSK, 16QAM, 64QAM, 256QAM
3. USB Decode
DVR Support: Stereo / MONO / Left / Right
Media Support: USB2.0 Port, Playback the media in USB flash disk or USB HDD
USB2.0 HOST: DVR with USB HDD, Time shifting with USB HDD
4. Multimedia
Music: MP3, WMA
Photo: JPEG, BMP, PNG
5. Video Decode
Decode Format: MPEG-2 MP@HL, MPEG-4 SP, DIVX1 3.11 (Optional), 4.X, 6.X, FLV Format,
H.264MP@HL, VC-1, RM&RMVB (Optional)
Output Format: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Aspect Ratio: 4:3 / 16:9 / Letterbox / selectable
Output Port: (V1.3C), YPbPr, CVBS
Speed: 180-200 km/h
6. Audio Decode
Decode Format: MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Optional), E-AC-3 (Optional), AAC-LC, HE-AAC 5.1
Audio Output: S/PDF (Coaxial), RCA x2 (L/R)
7. AV Output
Video Bandwidth: 5.5MHz (-3dB)
Video Impedance: 75
Video Voltage Level: 1.0 Vp-p
Audio Freq. Range: 20~20KHz
Guard Internal: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128
Pilot Pattern: PP1-PP7
Work Voltage: DC (6V-36V)

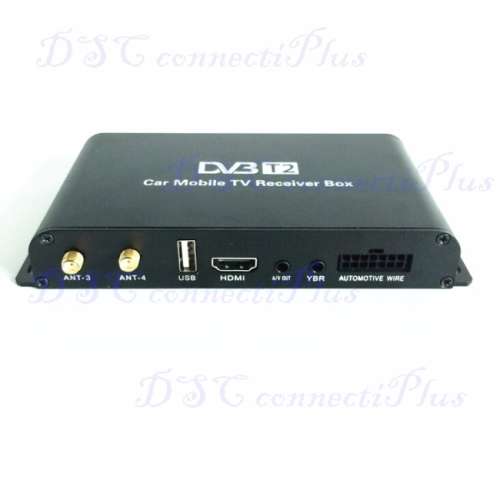

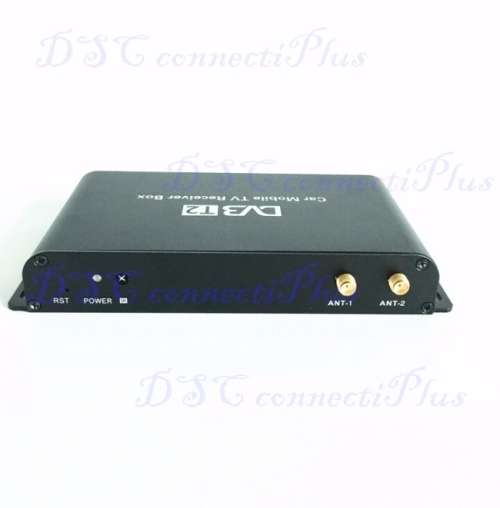

Hardware interface: Vehicle computer data cable port, DC input, RF input port2piece,
USB2.0, HDMI1.3, Power Indicator, IR Receiving port
Audio format: ISO/IEC14496-30, AAC, AAC+
FFT: 1K, 2K, 4K, 8K, 16K, 32K
Power: 2W
Video Resolution: 576i, 576p, 720p, 1080i and 1080p
Audio Impedance: 600
Audio Voltage Level: 2V RMS (5.6Vp-p)
Speed: 180-200 km/h
PACKAGING DETAILS
Unit Type: Set
Package Weight: 1.25kg (2.76lb.)
Package Size: 25 x 22 x 5cm (9.84 x 8.66 x 1.97in)
