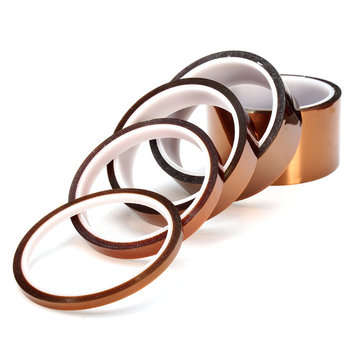

High Temperature Polyimide Film Heat Resistant Tape 5 Size

High Temperature Polyimide Film Heat Resistant Tape 5 Size

Feature:

5 Size for you to choose: 5mm, 10mm, 20mm, 30mm, 50mm
Longth: About 28m
Color: AMBER
Thickness: 0.055mm
Elongation: 50%
Tensile strength: ? 42N/25mm
Peel strength: ? 26N/25mm
Tack: 24#
Adhesive strength: 48H
(Note: the data is the General test values, for reference only)

Product Performance:

The color is brown (amber), Goldfinger tape sticky is good, obedient, high temperature, solvent, no seepage tin and no adhesive residue
Products with excellent electrical performance:
Short-term temperature 300 ?, long-term temperature 250 ?;
High insulation, high temperature, low temperature, acid, low electrolysis, good mechanical properties, abrasion and tear;
Special agent treatment, adhesion strength, after tear the surface without leaving any remnants.

The main uses:

Mainly used for paint, sealing, footwear, packaging fixed, construction and decoration industries;
Widely used as the electronics industry in transformers, motors, coils, capacitors and variable frequency power supply and other high-temperature insulation wound;
Suitable for printed circuit board (PCB), SMT tin stoves, wave soldering process masking Goldfinger;
High-grade electrical insulating protection and fixed lithium battery positive and negative effects;
Suitable for solder protection;
Cell phone lithium battery manufacturing strapping.

Package included:

1 x High Temperature Tape

<
<

<

<

<
