High Voltage DC-DC 2mA To 20mA Boost Converter Input 5V Output 280V-1200V

20 available / new

R504.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3478

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641125825

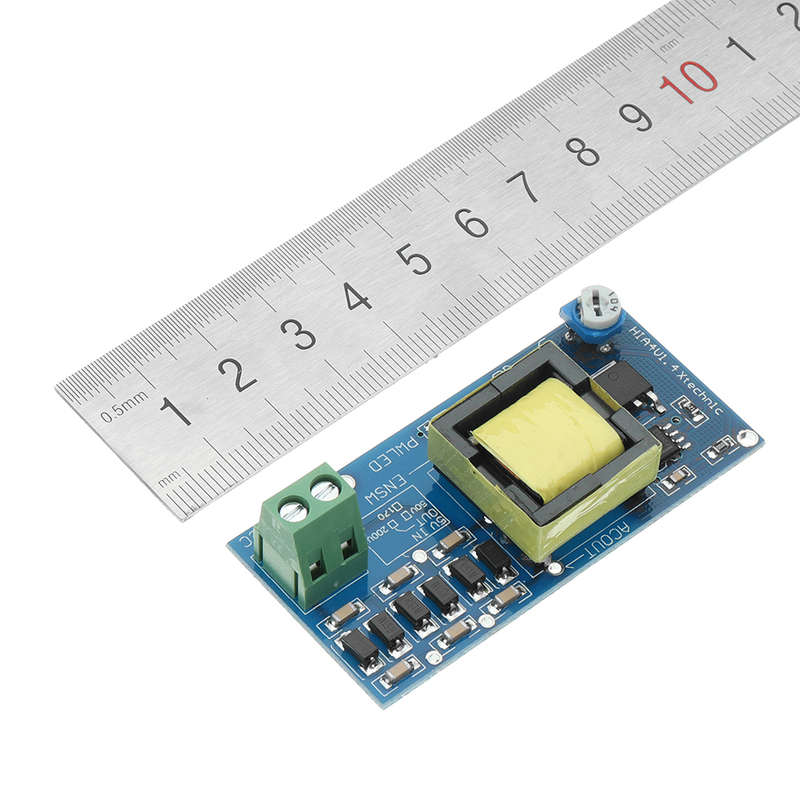

Features: Support for multiple voltage DC output when 5V input Size: about 48*25mm (length*width) Output current: 2~20mA (if you want to add current, please put insurance below the transformer replaced the 0-ohm resistor, maximum 50mA, but does not recommend increased.) When the input voltage is 5V, the output voltage can be adjusted in 280~1200V. When the input voltage is 6~12V, the output voltage can be adjusted in 400~1200V. Notes: 1. The capacitor can be charged, but charging speed is somewhat slow. 2. As the module power output module, it is not possible for the sensor. 3. Corresponding products description: this module is used on security products, stability is fairly good. 4. This module with AC output, the output about AC 75V, but can't be adjusted. Product test pattern: New products output are generally stable, of course, if you test the output voltage is unstable, you can add a limiting current resistor for testing, usually this problem does not occur.

Package included:

1 XHigh voltage DC-DC boost converter
