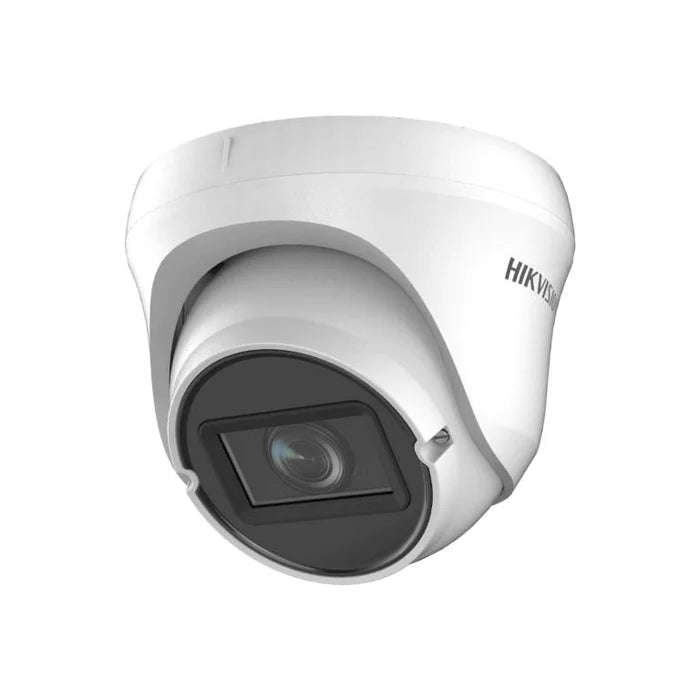

HIK 1080P VARIFOCAL TURRET 40M IR 2.7-13.5MM

Features

• High quality imaging with 2 MP, 1920 × 1080 resolution

• 2.7 mm to 13.5 mm varifocal lens

• Up to 40 m IR distance for bright night imaging

• One port for four switchable signals (TVI/AHD/CVI/CVBS)

• Water and dust resistant (IP67)

Specification

Camera

• Image Sensor: 2 MP CMOS

• Signal System: PAL/NTSC

• Resolution: 1920 (H) × 1080 (V)

• Frame Rate: TVI: 1920 × 1080 @ 30 fps, 1080P @ 25 fps ; AHD: 1920 × 1080 @ 30 fps, 1080P @ 25 fps ; CVI: 1920 × 1080 @ 30 fps, 1080P @ 25 fps ;

• CVBS: PAL/NTSC

• Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

• Lens: 2.7 mm to 13.5 mm varifocal lens

• Field Of View: Horizontal FOV: 100° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 34.5°

• Lens Mount: 14

• Day & Night: Color & ICR

• WDR (Wide Dynamic Range): Digital WDR

• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°


• Day/Night Mode: Auto/Color/BW (Black and White)

• Image Mode: STD/HIGH-SAT

• AGC: Yes

• White Balance: Auto/Manual

• AE (Auto Exposure) Mode: BLC;HLC;Global;DWDR

• Noise Reduction: 2D DNR

• Language: English

• Function: Brightness;Contrast;Smart IR;Sharpness;Saturation;Mirror
