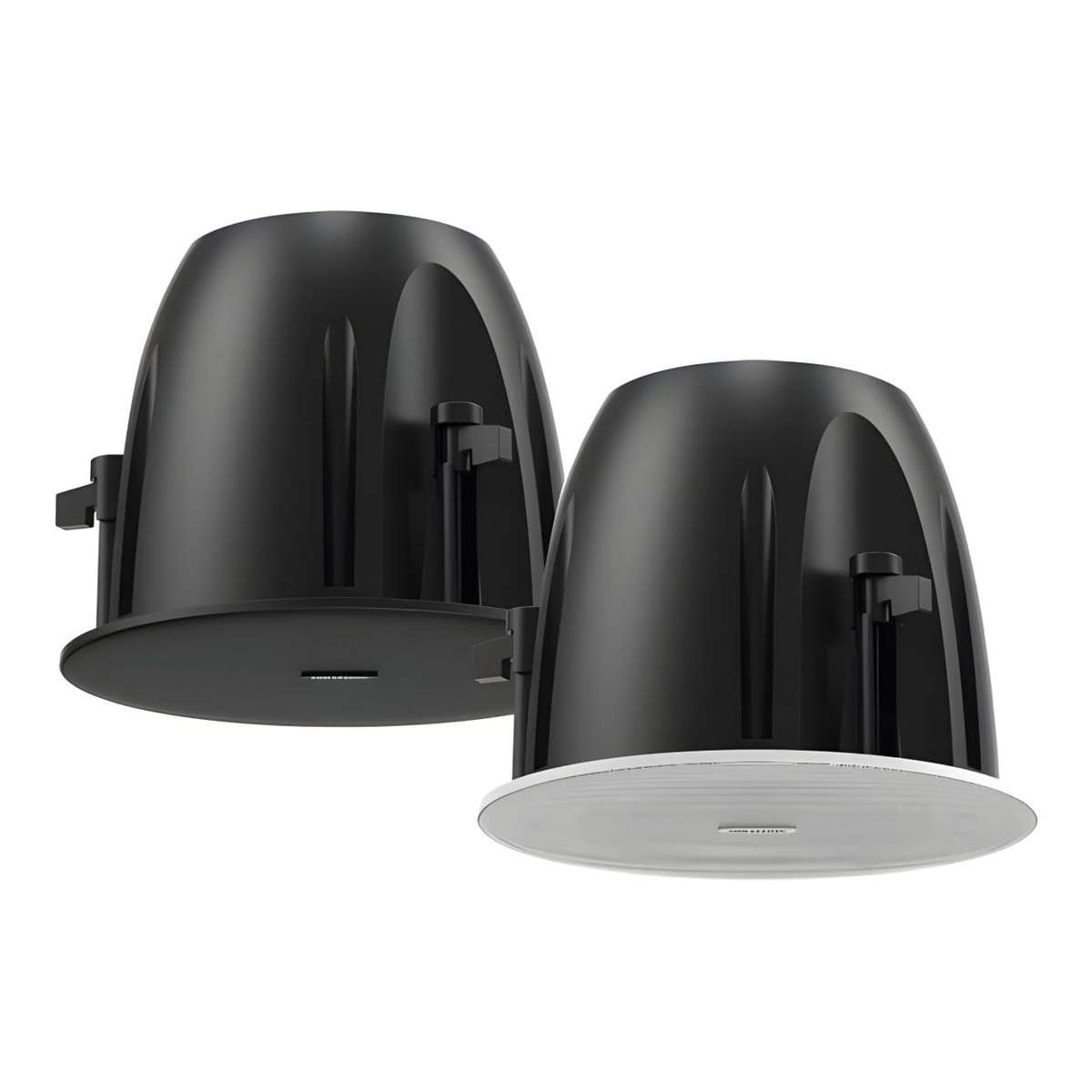

Hikvision 10W Analog Frameless Ceiling Speaker DS-QAZ0610G1

Features:

• 1 × 1.0-inch tweeter and 1 × 6.5-inch woofer
• Rated Power: 100V: 10W/5W/2.5W, 70V：10W/5W/2.5W/1.25W
• Sensitivity(1 m, 1 W): 89 dB
• Max. SPL: 98 dB
• Frequency Response: 120 Hz to 20 kHz
• White or black appearance optional

Technical Specifications:

Speaker

Impedance
8

Rated Power
10 W

Total Harmonic Distortion (THD)
1%

Sensitivity (1 m, 1 W)
89 dB

Maximum Acoustic Pressure
98 dB

Frequency Response
120 Hz To 20 kHz (-10 dB)

Speaker Unit

• 1 × 1.0-Inch Tweeter
• 1 × 6.5-Inch Woofer

Coverage Angle
Conical Coverage: 88°

Interface

Audio Input

• Constant Voltage Input: 100 V
• Constant Voltage Input: 70 V
• Constant Impedance Input: 8

Voltage Input Power Taps

100 V

• 10 W
• 5 W
• 2.5 W

70 V

• 10 W
• 5 W
• 2.5 W
• 1.25 W

8 Input
Supported

General

Material

• Main Body: PC
• Base: ABS

Dimensions
Ø242.78 × 192.7 mm

Weight
Approx. 2.7 kg

Supported Languages

• English
• French
• Spanish
• German
• Italian

Package Dimensions
305 × 305 × 315 mm

Package Weight
Approx. 2.9 kg

Operating Temperature
-10 °C To 45 °C

Operating Humidity
90% (Non-Condensing)

What's in the Box:

• Analog Frameless Ceiling Speaker × 1
• Regulatory Compliance And Safety Information × 1
