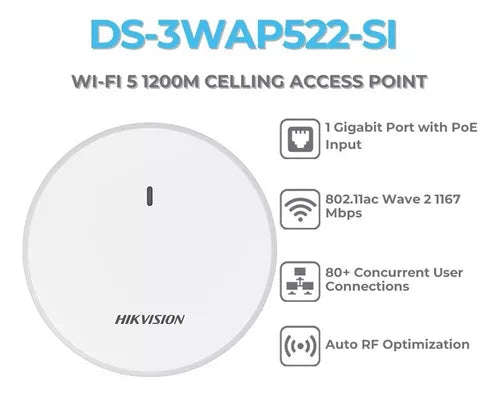

Hikvision 1200Mbps Smart Managed Access Point
DS-3WAP522-SI is an indoor 802.11ac AP product with dual-frequency four-flow design, which meets the wireless coverage
requirements of small, medium and micro enterprises
1 Gigabit Port with PoE Input
802.11ac Wave 2 1167 Mbps
80+ Concurrent User Connections
Auto RF Optimization
Support Intelligent Fast Roaming
WLAN Parameters
- Maximum Number of Clients: 256
- Recommended Number of Clients: 80
- Maximum Number of SSIDs: 8
- Working Frequency Band: radio 1: 5G(11a/an/ac), radio 2: 2.4G(11b/g/gn)
- Wi-Fi Standards: Wi-Fi 5
- Wi-Fi Speed: 2.4 G: 300 Mbps,5 G: 867 Mbps
- Spatial Streams: 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
- Channel Width: 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/M
- Number of Antennas: 2.4 GHz:2 5 GHz:2
- Antenna Type: Built-in omnidirectional antennas
- Antenna Gain: 2.4 GHz: 3 dBi,5 GHz: 4 dBi
- Transmit Power: 20 dBm
- Modulation Technology: OFDM:BPSK@6/9Mbp QPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mbps; DSSS:DBPSK@1Mbps DQPSK@2Mbps [email protected]/11Mbps; MIMO-OFDM 11n :MCS 0-15; MIMO-OFDM 11ac :MCS 0-9
Software Specifications
- WLAN Security: WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support SSID and VLAN binding,Support 802.11i
- Management & Maintenance: Centralized AC management
- Version Upgrade: upgrade on Web
Hardware Specifications
- Interface: 1 × Gigabit RJ45 uplink port
- Power Supply: IEEE 802.3af/at POE,12 VDC 1.5 A
- LED Indicator: Yellow/green/blue for different working states, flashing mode
- Reset Button: Hardware Resetting Button
General
- Weight: 0.4 kg (0.88 lb)
- Installation Mode: Desk-Mounted,Wall-Mounted,Ceiling Mounting
- Working Temperature: 0 C to 40 C (32 F to 104 F)
- Working Humidity: 5% to 95% (no condensation)
- Storage Temperature: -40 C to 70 C (-40 F to 158 F)
- Storage Humidity: 5% to 95% (no condensation)

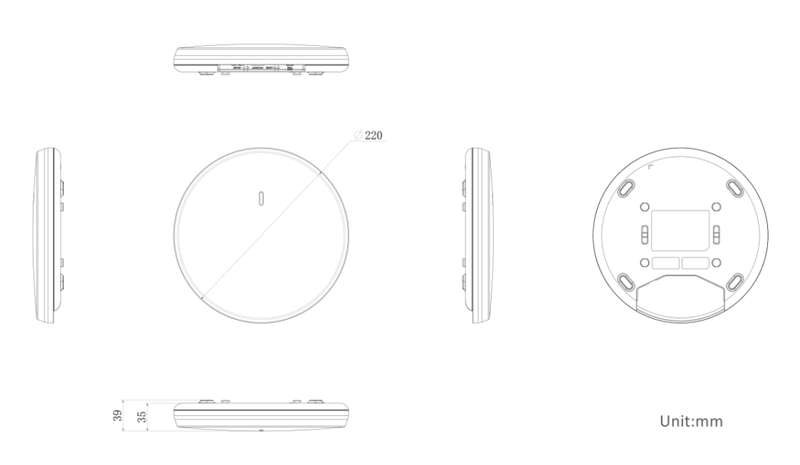

- Product Dimensions (W × H × D): 220 mm × 220 mm × 35 mm (8.66'' × 8.66'' × 1.37'')
What's in the box :
1 x 1200 Mbps Access Point
1 x Screw Pack & Bracket
1 x Quick Start Guide
1 x Compliance and Safety Information
