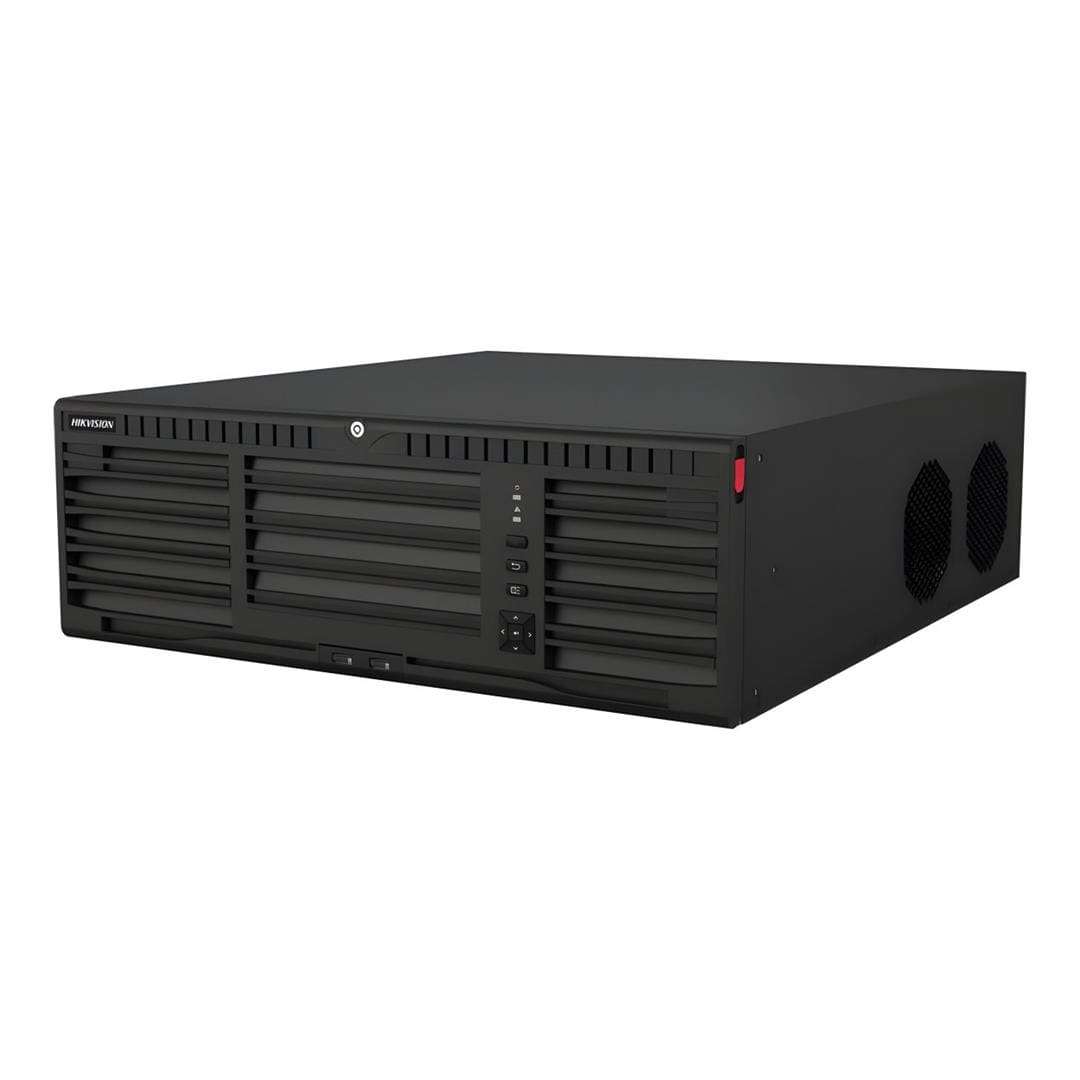

Hikvision 128-Channel 3U 4K NVR DS-96128NI-M16/R

Available: Mon—Fri, 08:00—17:00 | Closed on weekends & public holidays

Discover 22,000+ In-Stock Products | https://www.bobshop.co.za/store/FirstShop

Brand New & Sealed with Manufacturer Warranty

Hikvision 128-Channel 3U 4K NVR DS-96128NI-M16/R

Features:

• Up to 128-ch IP camera inputs
• Up to 2-ch-32 MP/2-ch-24 MP/4-ch-12 MP/8-ch-8 MP/16-ch-4 MP/32-ch-1080p decoding capacity
• Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
• 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
• Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
• Redundant power supply
• Up to 8-ch IP speakers can be connected

Technical Specifications:

Video And Audio

IP Video Input
128 Channels

Incoming Bandwidth
400 Mbps

Outgoing Bandwidth
400 Mbps

HDMI 1 Output Resolutions

• 7680 × 4320 - 30 Hz (8K)
• 3840 × 2160 - 60 Hz
• 3840 × 2160 - 30 Hz
• 2560 × 1440 - 60 Hz
• 1920 × 1080 - 60 Hz
• 1600 × 1200 - 60 Hz
• 1280 × 1024 - 60 Hz
• 1280 × 720 - 60 Hz
• 1024 × 768 - 60 Hz

HDMI 2 Output Resolutions

• 3840 × 2160 - 60 Hz
• 3840 × 2160 - 30 Hz
• 2560 × 1440 - 60 Hz
• 1920 × 1080 - 60 Hz
• 1600 × 1200 - 60 Hz
• 1280 × 1024 - 60 Hz
• 1280 × 720 - 60 Hz
• 1024 × 768 - 60 Hz

HDMI Output Notes
When HDMI 1 Output Resolution Is 8K, The Maximum HDMI 2 Output Resolution Is 1080p

VGA 1 Output Resolutions

• 1920 × 1080 - 60 Hz
• 1280 × 1024 - 60 Hz
• 1280 × 720 - 60 Hz
• 1024 × 768 - 60 Hz

VGA 2 Output Resolutions

• 1920 × 1080 - 60 Hz
• 1280 × 1024 - 60 Hz
• 1280 × 720 - 60 Hz
• 1024 × 768 - 60 Hz

Video Output Mode

• HDMI 1 And VGA 1 Provide Simultaneous Video Output (Main Output)
• HDMI 2 And VGA 2 Provide Simultaneous Video Output (Auxiliary Output)

CVBS Output

• 1 Channel, BNC (1.0 Vp-p, 75 )
• PAL: 704 × 576
• NTSC: 704 × 480

Audio Input
1 Channel, RCA (2.0 Vp-p, 1 K)

Audio Output
2 Channels, RCA (Linear, 1 K)

Two-Way Audio
1 Channel, RCA (Using Audio Input)

Decoding

Decoding Formats
H.265+, H.265, H.264+, H.264

Recording Resolutions

• 32 MP
• 24 MP
• 12 MP
• 8 MP
• 7 MP
• 6 MP
• 5 MP
• 4 MP
• 3 MP
• 1080p
• UXGA
• 720p
• VGA
• 4CIF
• DCIF
• 2CIF
• CIF
• QCIF

Synchronous Playback
16 Channels

Decoding Capability

• 2 Channels - 32 MP (30 fps)
• 2 Channels - 24 MP (30 fps)
• 4 Channels - 16 MP (30 fps)
• 8 Channels - 8 MP (30 fps)
• 16 Channels - 4 MP (30 fps)
• 32 Channels - 2 MP (30 fps)

Audio Compression
G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2, PCM

Network

Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Version 2.2), OTAP

Network Interface

• 2 × RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Ports

Camera Access Protocol
ONVIF (Version 2.5), RTSP

Storage And RAID

RAID Types
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

SATA Interfaces

• 16 × SATA Interfaces (Hot-Plug Supported)

eSATA Interface
1 × eSATA

Maximum Storage Capacity
Up To 16 TB Per Disk

Auxiliary Interfaces

Serial Interfaces

• 1 × RS-485 (Full-Duplex)
• 1 × RS-232

Alarm Input / Output
16 Inputs / 9 Outputs

USB Interfaces

• Front Panel:
  • 2 × USB 2.0
• Rear Panel:
  • 2 × USB 3.0

Control 12V Output
Controllable 12 VDC, 1 A Power Output For External Alarm Device

DC 12V Output
12 VDC, 1 A Power Output

General

Power Supply
100 To 240 VAC, 50 To 60 Hz, Redundant Power Supply

Power Consumption
50 W (Without HDD)

Operating Temperature
-10°C To 55°C

Operating Humidity
10% To 90%

Chassis Type
3U Chassis

Dimensions (W × D × H)
445 × 496 × 150 mm

Weight
12.5 kg (Without HDD)

Certifications

Certifications Obtained
CE, FCC

FCC Compliance
Part 15 Subpart B, ANSI C63.4-2014

CE Compliance
EN 55032:2015
EN 61000-3-2
EN 61000-3-3
EN 50130-4
