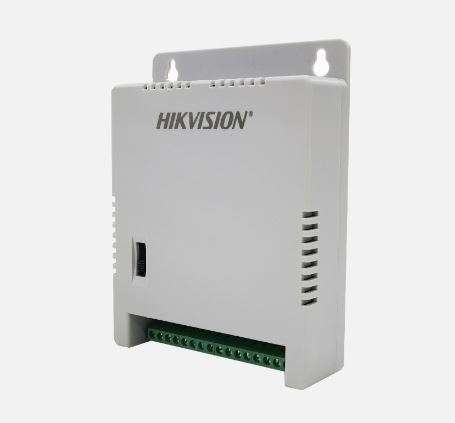

Hikvision 12VDC 10Amp 8 Channel CCTV Power Supply Input:110-220VAC, output: 12VDC 10A/8ch, PTC 1m AC cord with SA plug, Retail Box, 1 Year Warranty
Highlights
Multi-channel SMPS
60 W, 12 VDC/1 A per channel
Over current/short circuit/over voltage protection
Good EMC performance
Compact size; applicable to cameras
150 to 285 VAC wide voltage input
Specifications
Stock Code: DS-2FA1205-C8(EUR)
Description: Hikvision 12VDC 10Amp 8 Channel CCTV Power Supply Input:110-220VAC
Parameters
Appearance: White
Dimension: 144 mm × 109.5 mm × 33 mm (5.67" × 4.31" × 1.30")
Operating Conditions: 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
LED Indicator: Green
Input: 150 to 285 VAC, 47 Hz to 63 Hz
Output: 12 VDC/1 A per channel
Ripple & Noise 150 MVp-P: 0.15 Vp-p (150 mV)
AC Input Connector: C8
DC Output Connector: DC Plug: grid terminal
Storage Conditions: -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Cable Length Compensation:
Normal: 12 VDC
Long: 13.5 VDC
Ex-Long: 15 VDC
