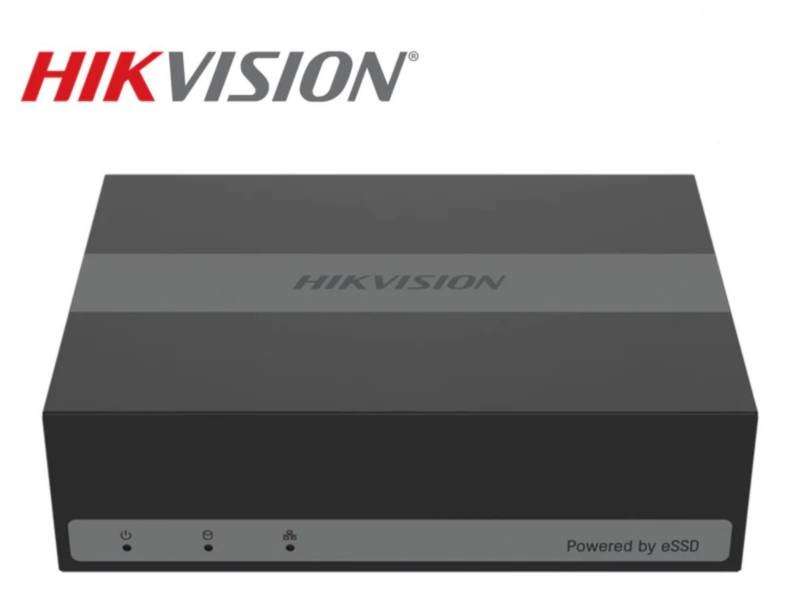

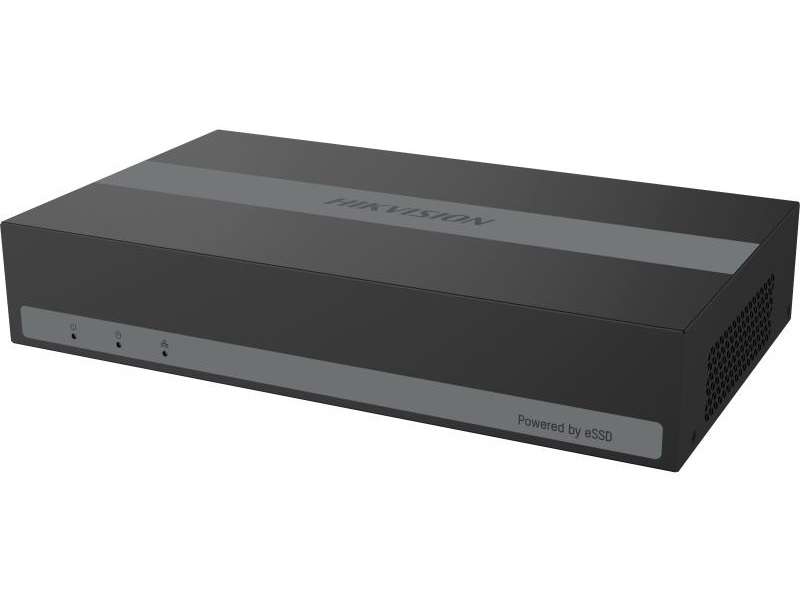

HIKVISION DS-E16HGHI-B 16-ch 1080pLite 1U H.265 eSSD DVR
Enhance your surveillance system with the HIKVISION DS-E16HGHI-B DVR, powered by cutting-edge eSSD technology for enhanced performance and reliability. This 16-channel DVR features deep learning-based motion detection, scene-adaptive bitrate control, and low power consumption, making it an ideal solution for efficient and intelligent video recording.
Key Features
eSSD Technology: Ensures superior performance and reliability.
Deep Learning Motion Detection 2.0: Classifies human and vehicle targets, significantly reducing false alarms from non-relevant objects.
Scene-Adaptive Bitrate Control: Optimizes video compression for stable recording.
Low Power Consumption: Energy-efficient operation.
1080p Lite Encoding: Up to 15 fps for clear and detailed video.
Motion Detection 2.0
Human/Vehicle Analysis: Utilizes deep learning for accurate target classification and reduced false alarms.
Quick Search: Supports searching by object or event type for faster retrieval.
Video and Audio
IP Video Input: 2 channels, up to 5 MP resolution, supports H.265+/H.265 IP cameras.
Analog Video Input: 16 channels, BNC interface, supports coaxitron connection.
Supported Input Types:
HDTVI: 1080p25, 1080p30, 720p25, 720p30
AHD: 1080p25, 1080p30, 720p25, 720p30
HDCVI: 1080p25, 1080p30, 720p25, 720p30
CVBS: Supported
HDMI Output: 1 channel, up to 1920 `d7 1080/60 Hz
VGA Output: 1 channel, up to 1920 `d7 1080/60 Hz
Audio Input/Output: 16 channels via coaxial cable, 1 channel via HDMI
Recording
Video Compression: H.265 Pro/H.265
Encoding Resolution: 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
Frame Rate:
Main Stream: 1080p Lite/720p/WD1/4CIF@25 fps (P)/30 fps (N)
Sub-Stream: For 1080p and 720p stream access: CIF/QVGA@15 fps
Audio Compression: G.711u
Audio Bitrate: 64 Kbps
Network
Total Bandwidth: 96 Mbps
Remote Connections: Up to 128
Network Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP`99, HTTPS
Network Interface: 1 RJ45 10/100 Mbps self-adaptive Ethernet interface
Storage and Interface
Built-in Storage: 1024 GB eSSD (960 GB available), stores approximately 2 weeks of video for 16-ch analog cameras (default settings).
USB Interface: 2 `d7 USB 2.0 (rear panel)
Alarm In/Out: Not available
General Specifications
Power Supply: 12 VDC, 1 A
Power Consumption: 9.5 W (with eSSD)
Operating Temperature: -10 `b0C to 45 `b0C (14 `b0F to 113 `b0F)
Operating Humidity: 10% to 90%
Dimensions (W `d7 D `d7 H): 235 `d7 146.6 `d7 46.6 mm (9.25 `d7 5.77 `d7 1.83 inch)
Weight: 0.5 kg (with eSSD, 1.1 lb.)
