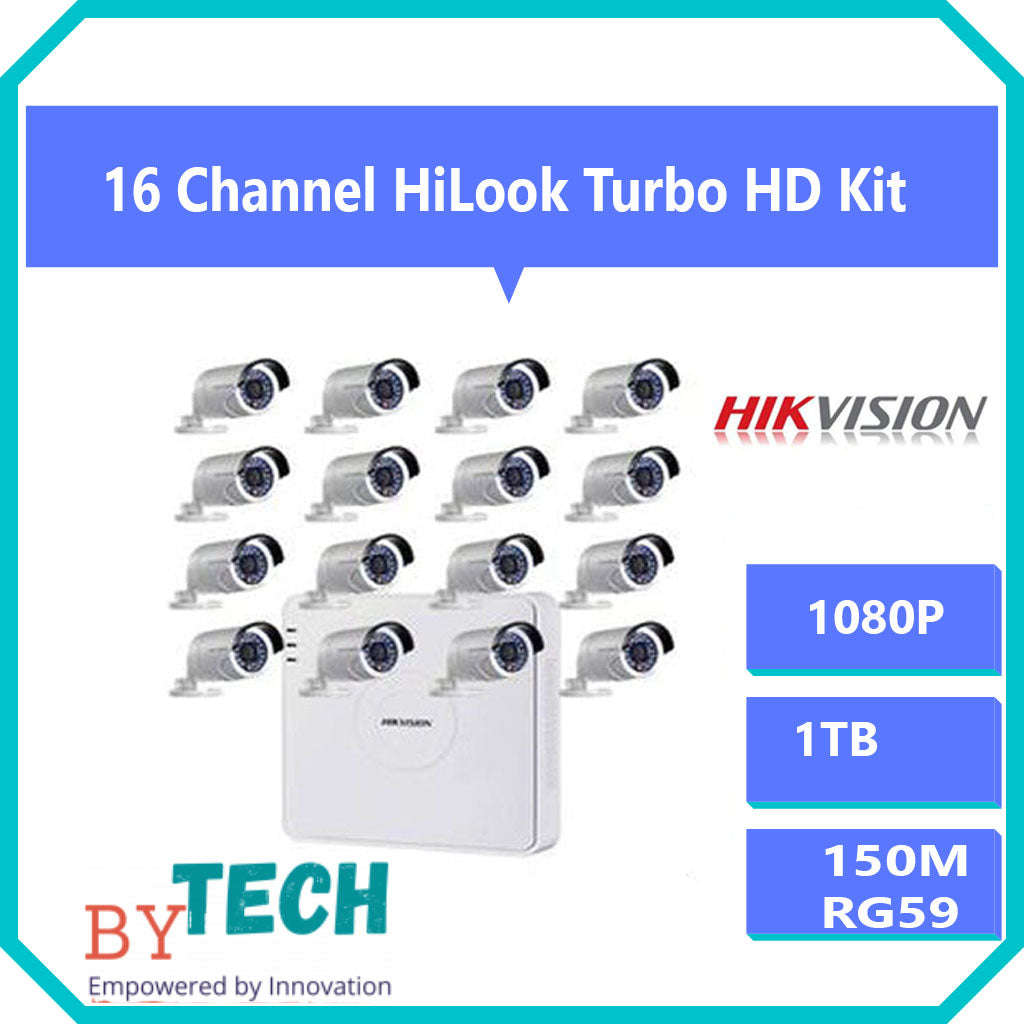

Kit Includes

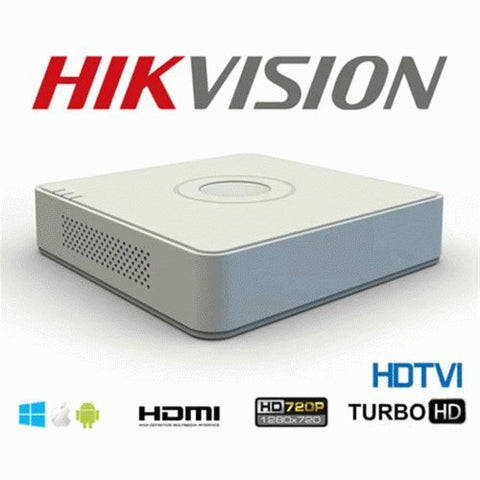

- 1 x Hikvision DS-7116HGHI-F1 16-Ch TURBO HD Embedded DVR. H.264, Analogue and HD-TVI video input, 1-Ch Audio input, HDMI and VGA output at up to 19201080P, 1x SATA interface, Mini 1U case, 12VDC, With Smartphone and PC viewing
- 16 x Hikvision DS-2CE16D0T HD1080P Turbo HD Bullet Camera. HD1080P Video Output, Adopt HDTVI Technology, True D/N, DNR, Smart IR, 20m IR Distance, IP661
- 1TB SATA Hard Drive
- 32 x BNC Plug 3Pcs
- 16 x DC plugs
- 1 x 12VDC 30A Power Supply
- 1 x 100m Cable RG59 Co-Axial
Key Features
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution True Day/Night, Smart IR
- Smart IR, up to 20m IR distance
- IP66 weatherproof
Angle of View: 82.2(3.6mm)
With Smartphone and PC remote viewing
H.264 /H.264+& Dual-stream video compression
Support both HD-TVI /analog and AHD cameras with
adaptive access
Full channel recording at up to 1080P lite resolution
HDMI and VGA output at up to 19201080P resolution
Long transmission distance over coax cable
Support 16-ch synchronous playback at 720P resolution
Video/Audio Input
Audio Input: | 1-ch
Video Compression: | H.264,H.264+
Analog and HD-TVI video input: | 16-ch BNC interface (1.0Vp-p, 75 )
Supported camera types: | Support HDTVI input: 1080p/25Hz, 1080p/30Hz, 720P/25Hz, 720P/30Hz,
Support AHD input: 720P/25Hz, 720P/30Hz,
support CVBS input
Audio Compression: | G.711u
Audio Input Interface: | RCA (2.0 Vp-p, 1 k)
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 K) (using audio input)
Video/Audio Output
HDMI/VGA Output: | 1920 1080 / 60 Hz,1280 1024 / 60 Hz, 1280 720 / 60 Hz, 1024 768 / 60 Hz
Recording resolution: | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate: | Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate: | 32 Kbps ~ 4 Mbps
Stream Type: | Video/Video&Audio
Audio Output: | 1-ch RCA(Linear, 1k)
Audio Bit Rate: | 64kbps
Dual Stream: | Support
Playback Resolution: | 1080p lite/720p/WD1/4CIF/VGA/CIF
Synchronous Playback: | 16-ch
Network management
Remote connections: | 128
Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Hard Disk Driver
Interface Type: | 1 SATA Interface
Capacity: | Up to 6 TB capacity for each disk
External Interface
Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: | 2 USB 2.0 Interfaces
