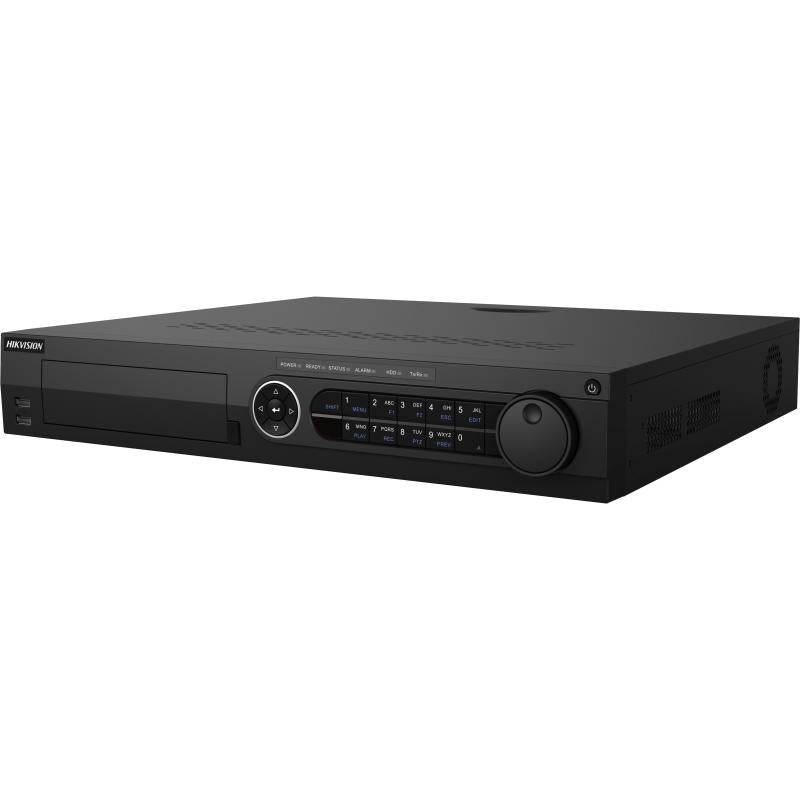

Hikvision 16 Channel Turbo Dvr

Hikvision 16 Channel Turbo Dvr Specifications

Recordings

Video Compression: H.264+/H.264

Encoding Resolution:

• When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
• When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF

Frame Rate :

Main Stream

• • When 1080p Lite mode not enabled:
  • For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
  • When 1080p Lite mode enabled:
  • 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream

• 4CIF/2CIF@6fps;
• CIF/QVGA/QCIF@25fps (P)/30fps (N)

Video Bit Rate: 32 Kbps to 4 Mbps
Dual Stream: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bit Rate: 64 Kbps

Video And Audio

IP Video Input : Up to 16-ch Up to 1080p resolution Support H.264+/H.264 IP cameras

Analog Video Input : 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Turbo HD Input : 1080p25, 1080p30, 720p25, 720p30

AHD Input : 1080p25, 1080p30, 720p25, 720p30

HDCVI Input : 1080p25, 1080p30, 720p25, 720p30

CVBS Input : Support

Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output : 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio : Reuse the first audio input

Synchronous Play back: 16-ch

VGA/HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

Remote Connections: 128
Network Protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface : 1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

SATA: SATA
Capacity: Up to 6 TB capacity for each disk
Alarm In/Out: N/A
USB Interface : Rear panel: 2 × USB 2.0
