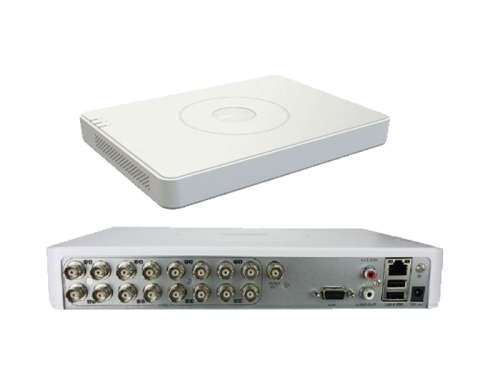

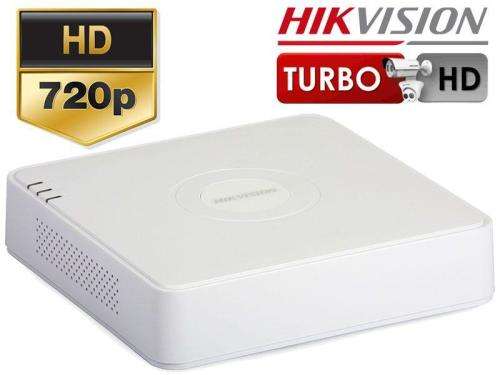

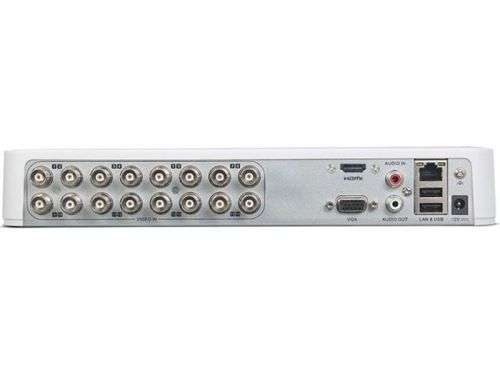

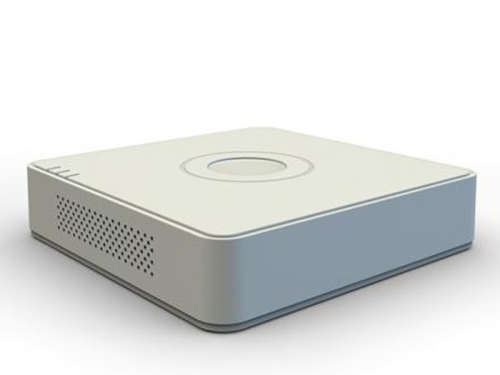

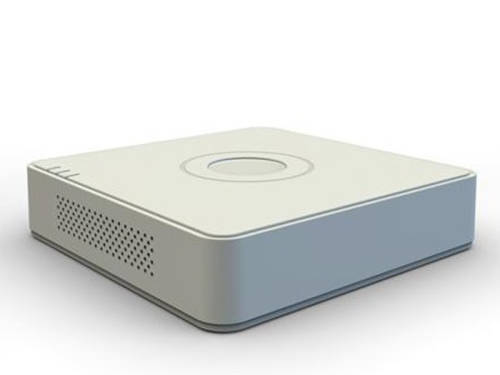

Hikvision 16Ch Turbo HD DVR (DS-7116HGHI-F1)
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
HikVision DS-7116HGHI-F1Turbo HD DVR is
Video/Audio Output
HDMI/VGA Output: 1920 `d7 1080 / 60 Hz,1280 `d7 1024 / 60 Hz, 1280 `d7 720 / 60 Hz, 1024 `d7 768 / 60 Hz
Recording resolution: When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate: Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps ~ 4 Mbps
Stream Type: Video/Video&Audio
Audio Output: 1-ch RCA(Linear, 1k`d9)
Audio Bit Rate: 64kbps
Dual Stream: Support
Playback Resolution: 1080p lite/720p/WD1/4CIF/VGA/CIF
Synchronous Playback: 16-ch
KEY FEATURES
H.264 /H.264+& Dual-stream video compression
Support both HD-TVI /analog and AHD cameras withadaptive access
Full channel recording at up to 1080P lite resolution
HDMI and VGA output at up to 1920`d71080P resolution
Long transmission distance over coax cable
Support 4/8/16-ch synchronous playback at 720P resolution
WHAT`S IN THE BOX
1 x HikVision DS-7116HGHI-F1 Turbo HD DVR
SPECIFICATIONS OF DS-7116HGHI-F1 TURBO HD DVR
SKU HI340EL0ZBOWSNAFAMZ
Size (L x W x H cm) 200 `d7 200 `d7 45mm (7.9 `d7 7.9 `d7 1.8 inch)
Weight (kg) 4
Main material Hardened PVC
