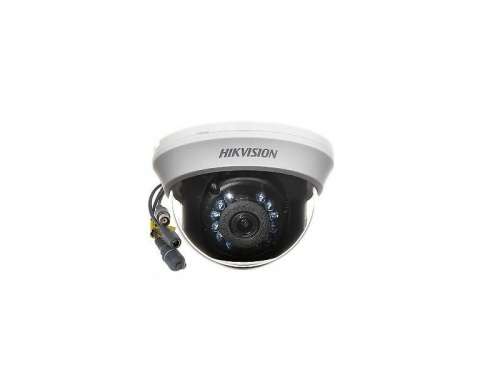

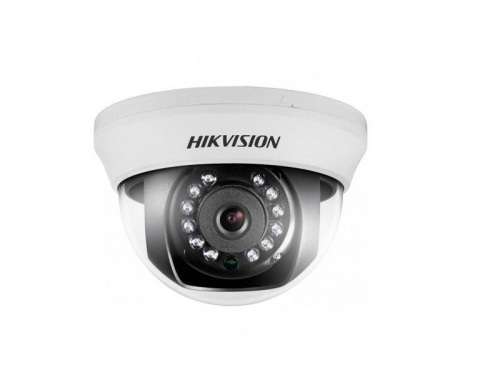

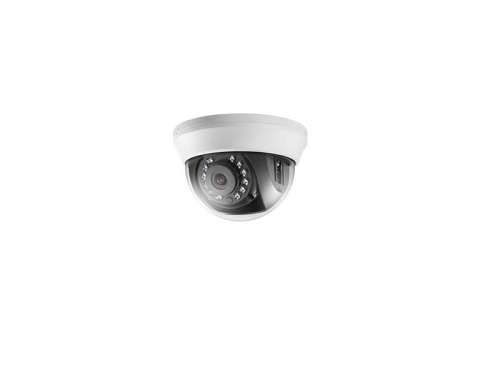

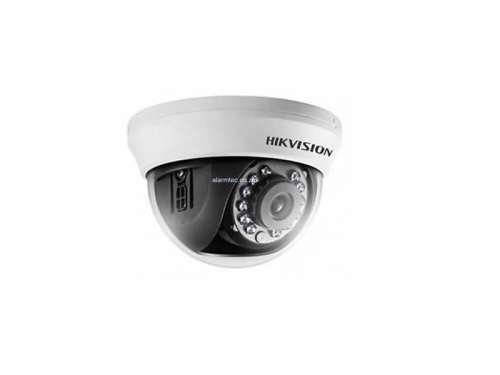

Hikvision 1MP 2.8MM Lens Dome Camera (DS-2CE56COT-IRMMF)

Camera

Image Sensor:

1MP CMOS Image Sensor

Signal System:

PAL/NTSC

Effective Pixels:

1296(H)x732(V)

Min. Illumination:

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time:

1/25(1/30) s to 1/50,000 s

Lens Mount:

M12

Adjustment Range:

Pan: 0 - 350`b0, Tilt: 0 - 70`b0, Rotation: 0 - 350`b0

Day& Night:

IR cut filter with auto switch

Video Frame Rate:

720p@25fps/720p@30fps

HD Video Output:

1 Analog HD output

Synchronization:

Internal Synchronization

S/N Ratio:

More than 62 dB

General

Operating Conditions:

-20 `b0C - 45 `b0C (-4 `b0F - 113 `b0F)

Humidity 90% or less (non-condensing)

Power Supply:

12 VDC`b115%

IR Range:

Up to 20m

Dimension:

`d6 98 x 65.4 mm (`f6 3.86 x 2.57)

Weight:

240 g
