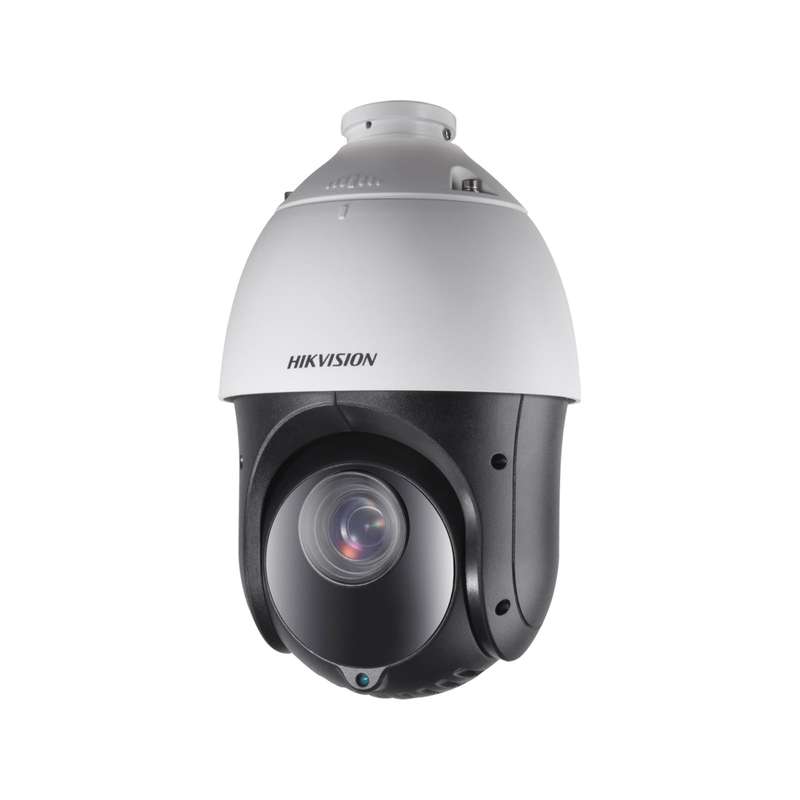

HIKVISION 2 MP IR TURBO 4-INCH SPEED DOME

Hikvision 2 MP IR Turbo 4-INCH Speed Dome

Description:

High quality imaging with 2 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
25 optical zoom allows for closer viewing of subjects in expansive areas
Up to 100 m IR range ensures safety at night
Water and dust resistant (IP66)

Specifications:

Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
1920 1080
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed
PAL: 1/1 s to 1/10,000 s

NTSC: 1/1 s to 1/10,000 s

Day & Night
IR cut filter
Zoom
25 optical, 16 digital
Lens
Focal Length
4.8 mm to 120 mm, 25 optical
FOV
Horizontal FOV: 57.6 to 2.5 (wide to tele)
Focus
Auto, semi-auto, manual
Aperture
F1.6 to F3.5
Zoom Speed
Approx. 3.2 s (optical, wide to tele)
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 100 m
PTZ
Movement Range (Pan)
360 endless
Movement Range (Tilt)
-15 to 90 (auto flip)
Pan Speed
Pan manual speed: 0.1 to 80 /s

Pan preset speed: 80 /s

Tilt Speed
Tilt manual speed: 0.1 to 80 /s

Tilt preset speed: 80 /s

Proportional Pan
Rotation speed can be adjusted automatically according to zoom multiples
Presets
256
Patrol Scan
10 patrols, up to 32 presets for each patrol
Pattern Scan
5 patterns, record time over 10 minutes for each scan
Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display
Yes
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-Off Memory
Yes
Video
Frame Rate
50 Hz: 25 fps @(1920 1080)

60 Hz: 30 fps @(1920 1080)

Network
Protocols
UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings
AGC, white balance
Wide Dynamic Range (WDR)
120 dB
Image Stabilization
EIS
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
8 programmable privacy masks
Regional Focus
Yes
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485
Half-duplex mode

Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

General
Power
12 VDC, max. 20 W (IR: 7 W)
Dimension
164.5 295 mm ( 6.47" 11.61")
Operating Condition
-30 C to 65 C (-22 F to 149 F). Humidity 90% or less
Language
English
