Hikvision 24-port GbE PoE Smart Managed Switch with 4x SFP ports

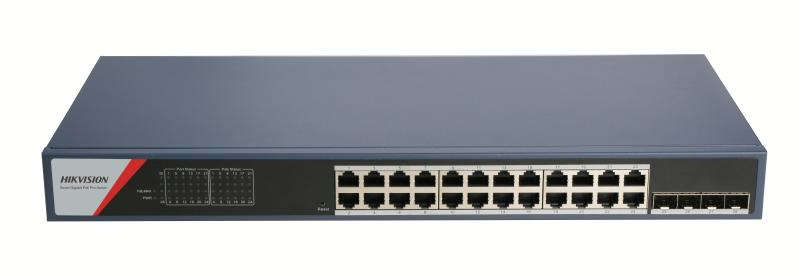

Hikvision 24-port GbE PoE Smart Managed Switch with 4x SFP ports DS-3E1528P-SI-24P4F

Smart managed switches are developed by Hikvision, featuring easy management and maintenance. You can easily deploy, monitor, and expand your video security system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network, and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.

Features

• Total PoE power budget 370 W
• Support DHCP snooping
• Support 802.1Q VLAN
• Support ACL List
• Support STP/ERPS loop prevention, storm control
• Support ARP Anti-Spoofing
• Support SNMP, QoS
• 6 kV surge protection

Technical Specification

Ports

• 24x Gigabit PoE port
• 4x Gigabit fiber optical port

MAC Address Table: 8 K

Switching Capacity: 56 Gbps

Packet Forwarding Rate: 41.66 Mpps

Internal Cache: 4.1 Mbits

PoE Power Supply

• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin: End-span: 1/2(-), 3/6(+)
• PoE Port: Ports 1 to 24
• Max. Port Power: 30 W

Surge Protection: 6 kV

Installation Mode: Rack (equipped with mounting ears)

Dimensions (W × H × D): 440 x 44 x 220.8 mm

Weight: 2.8 kg
