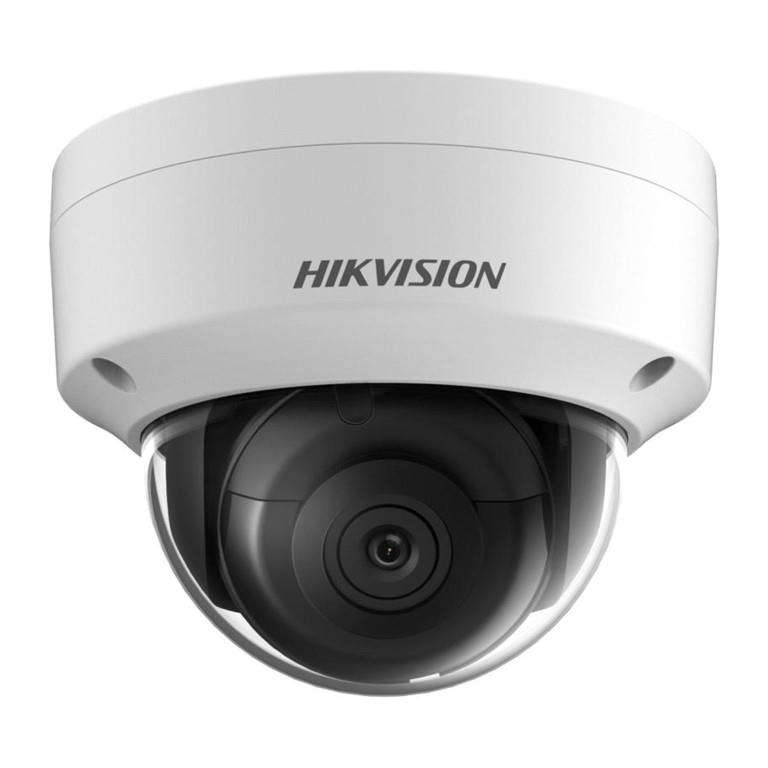

Hikvision 2MP 2.8mm Hybrid Light Fixed Dome Network Camera DS-2CD2121G0-LIU(2.8mm)

Available: Mon—Fri, 08:00—17:00 | Closed on weekends & public holidays

Discover 22,000+ In-Stock Products | https://www.bobshop.co.za/store/FirstShop

Brand New & Sealed with Manufacturer Warranty

Hikvision 2MP 2.8mm Hybrid Light Fixed Dome Network Camera DS-2CD2121G0-LIU(2.8mm)

Features

• High quality imaging with 2 MP resolution
• 1920 x 1080 Resolution
• 2.8mm Fixed focal lens
• Horizontal FOV: 98°, Vertical FOV: 54°, Diagonal FOV: 114°
• D: 63 m, O: 25 m, R: 12 m, I: 6 m
• Up to 30m IR, White Light
• 850nm IR Wavelength
• Smart Hybrid Light: advanced technology with long range
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67) and vandal resistant (IK08)
• Efficient H.265+ compression technology
• 1x RJ45 10/100Mbps self-adaptive Ethernet port
• 12 VDC ; PoE
• *Power supply is not included

Technical Specifications:

Camera

Image Sensor
1/2.9" Progressive Scan CMOS

Max. Resolution
1920 × 1080

Min. Illumination
Color: 0.005 Lux - (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Time
1/3 s to 1/100,000 s

Day & Night
IR cut filter

Angle Adjustment
Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

Lens Mount
M12

Iris Type
Fixed

Aperture
F1.6

DORI
2.8 mm: D: 45 m, O: 18 m, R: 9 m, I: 4 m
4 mm: D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator
Supplement Light Type
IR, White Light

Supplement Light Range
Up to 30 m

Smart Supplement Light
Yes

IR Wavelength
850 nm

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bit Rate
32 Kbps to 8 Mbps

H.264 Type
Baseline Profile, Main Profile, High Profile

H.265 Type
Main Profile

Bit Rate Control
CBR, VBR

Region of Interest (ROI)
1 fixed region for main stream

Audio
Audio Type
Mono sound

Environment Noise Filtering
Yes

Audio Sampling Rate
8 kHz/16 kHz

Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate
64 Kbps (G.711 ulaw), 64 Kbps (G.711 alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32—160 Kbps (MP2L2), 16—64 Kbps (AAC-LC)

Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View
Up to 6 channels

API
ISAPI, SDK, Open Network Video Interface (Profile S, Profile T)

Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP

User/Host
Up to 32 users, 3 user levels: administrator, operator, user

Client
iVMS-4200, Hik-Connect

Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)
Digital WDR

SNR
52 dB

Day/Night Switch
Day, Night, Auto, Schedule

Image Enhancement
BLC, HLC, 3D DNR

Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Privacy Mask
4 programmable polygon privacy masks

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone
Yes

Event
Basic Event
Video tampering alarm, exception, motion detection

Linkage
Notify surveillance center, send email, trigger capture

General
Power
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 7.5 W

Material
Metal & Plastic

Dimension
Ø121.4 mm × 97.7 mm (Ø4.8" × 3.8")

Package Dimension
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight
Approx. 550 g (1.2 lb.)
With Package Weight: Approx. 800 g (1.8 lb.)

Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language
English, Ukrainian

General Function
Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7

Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014 + A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
LOA: IEC/EN 60950-1

Environment
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
REACH: Regulation (EC) No 1907/2006

Protection
IP67: IEC 60529-2013, IK08: IEC 62262:2002
