Brand New & Sealed with Manufacturer Warranty

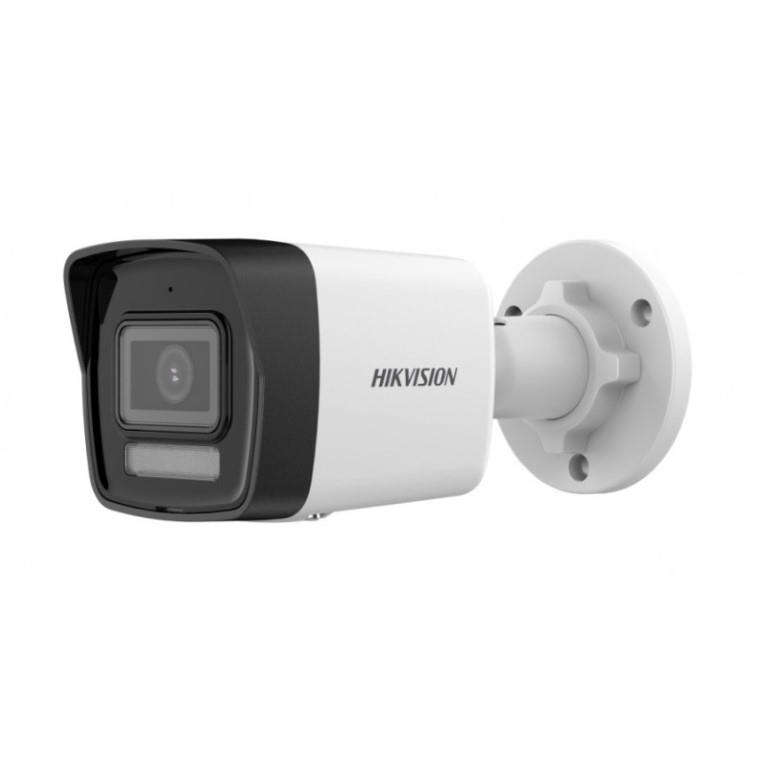

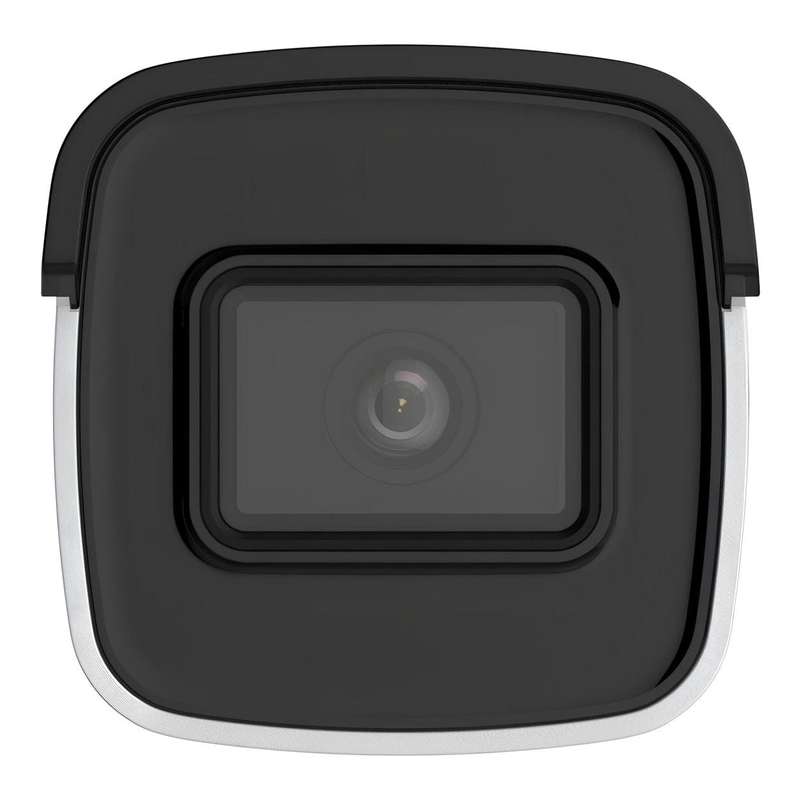

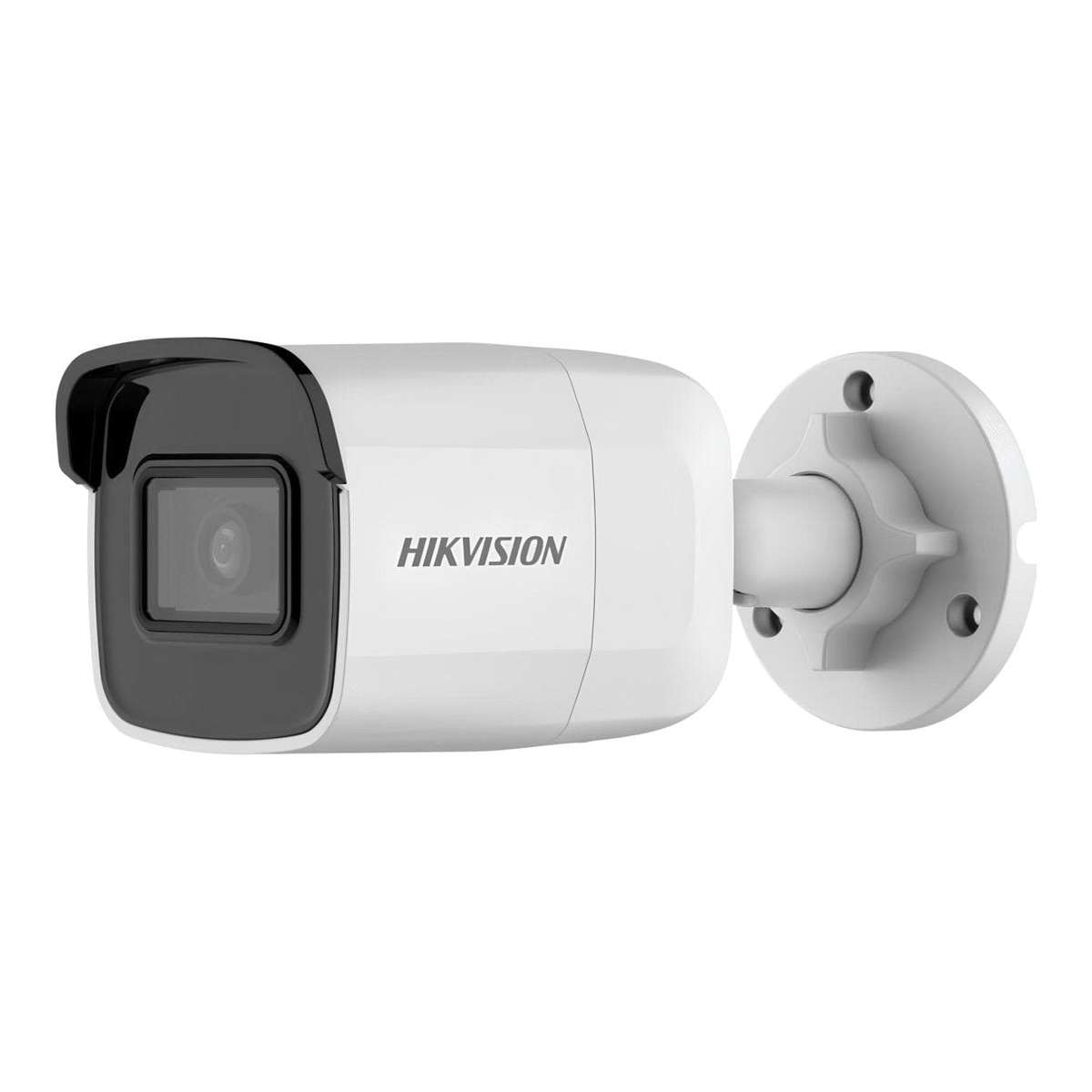

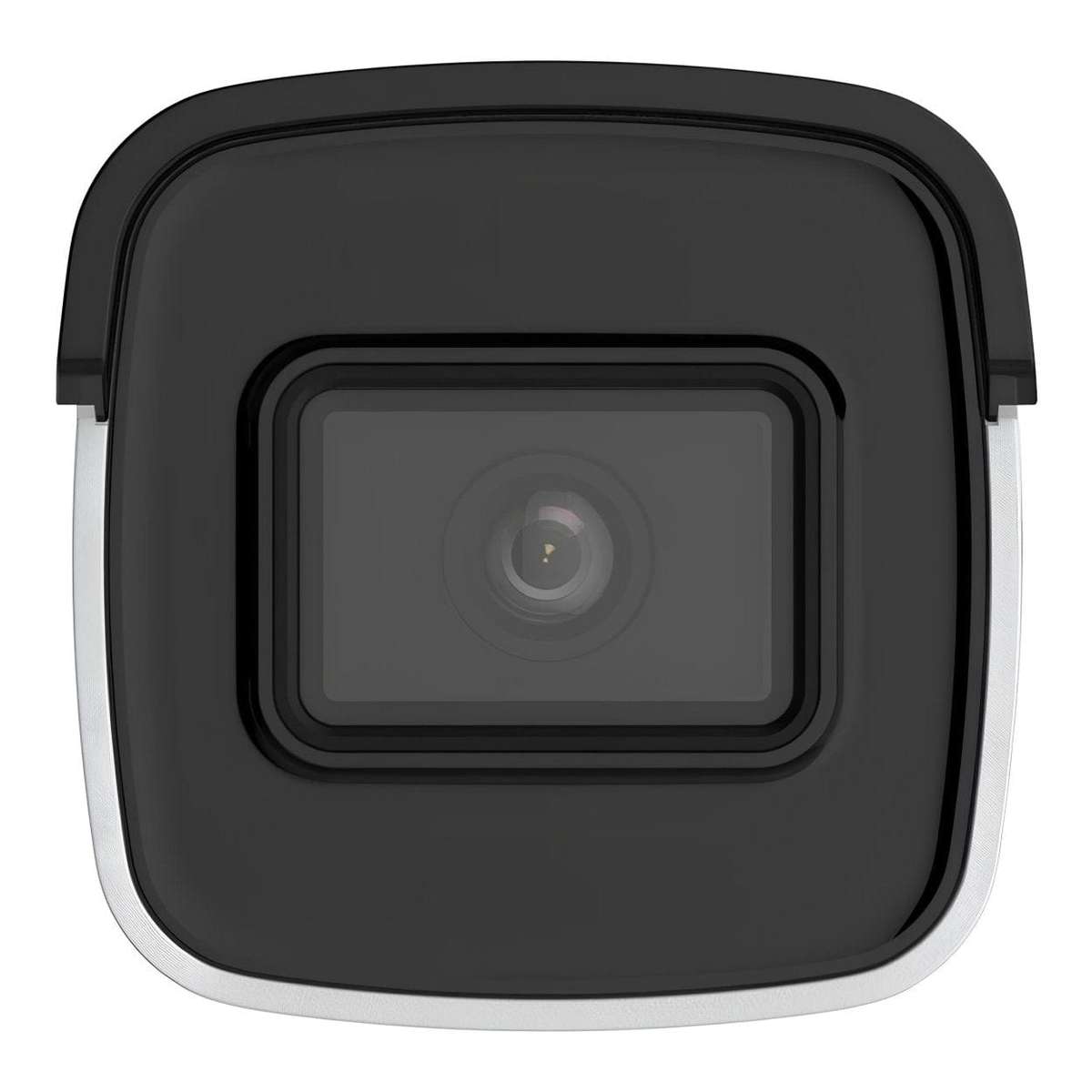

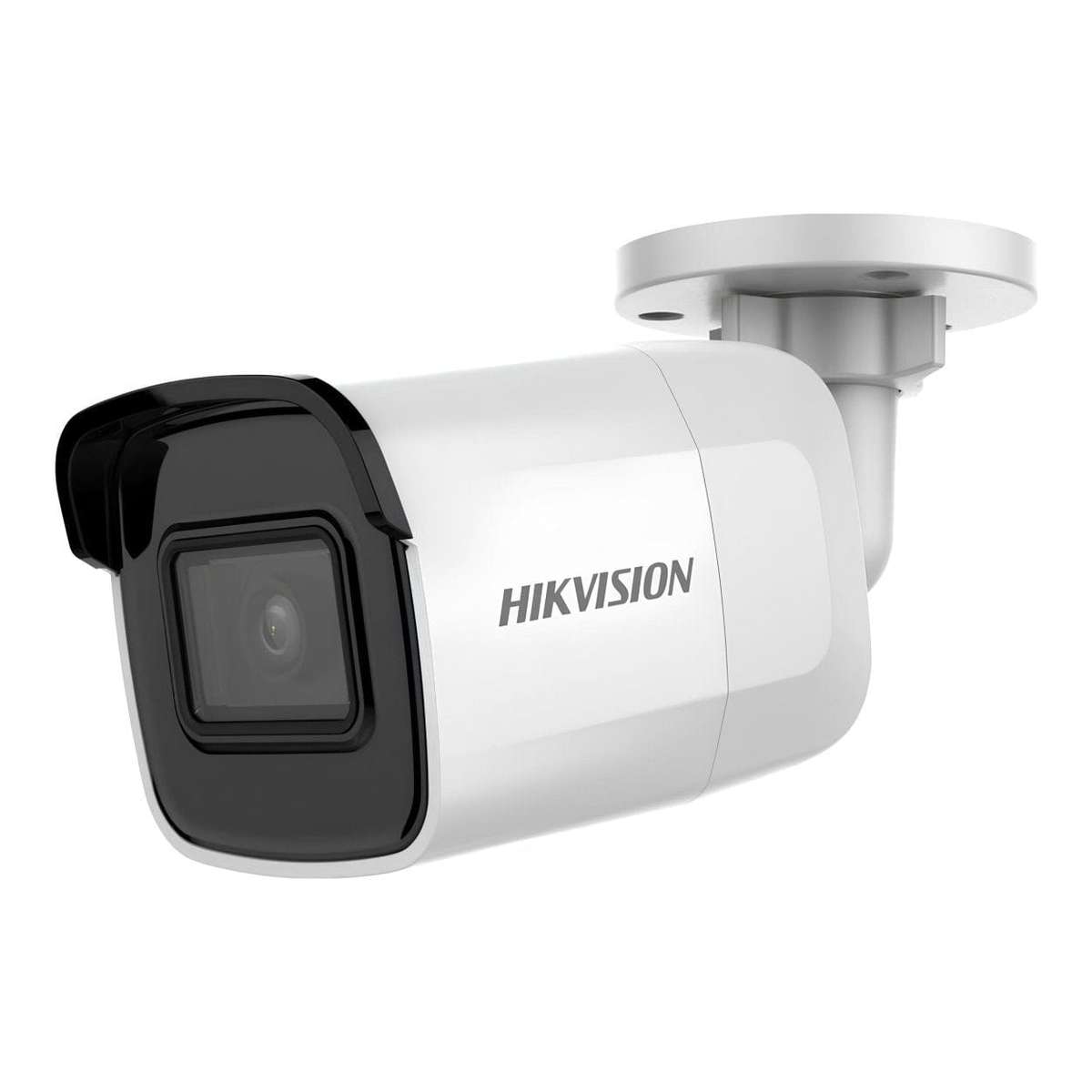

Hikvision 2MP 2.8mm Hybrid Light Fixed Mini Bullet Network Camera DS-2CD2021G0-LIU(2.8mm)
Features
Technical Specifications:
Camera
Image Sensor : 1/2.9" Progressive Scan CMOS
Max. Resolution : 1920 × 1080
Shutter Time : 1/3 s to 1/100,000 s
Min. Illumination : Color: 0.005 Lux - (F1.6, AGC ON),B/W: 0 Lux with IR
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8mm
Focal Length & FOV : 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
Lens Mount : M12
Iris Type : Fixed
Aperture : F1.6
DORI
DORI : 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
Illuminator
Supplement Light Type : IR,White Light
Supplement Light Range : Up to 30 m
Smart Supplement Light : Yes
IR Wavelength : 850 nm
Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate : 32 Kbps to 8 Mbps
H.264 Type : Baseline Profile,Main Profile,High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR,VBR
Region of Interest (ROI) : 1 fixed region for main stream
Audio
Audio Type : Mono sound
Environment Noise Filtering : Yes
Audio Sampling Rate : 8 kHz/16 kHz
Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
Network
Security : Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video
Interface, security audit log, host authentication (MAC address)
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP,
SMTP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Client : iVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) : Digital WDR
SNR : 52 dB
Day/Night Switch : Day,Night,Auto,Schedule
Image Enhancement : BLC,HLC,3D DNR
Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable
by client software or web browser
Privacy Mask : 4 programmable polygon privacy masks
Interface
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone : Yes
Event
Basic Event : Motion detection,video tampering alarm,exception
Linkage : Upload to FTP, send email, notify surveillance center, trigger capture
General
Power
Material : Metal & Plastic
Dimension : 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
Package Dimension : 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight : Approx. 265 g (0.6 lb.)
With Package Weight : Approx. 495 g (1.1 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language : English, Ukrainian
General Function : Heartbeat,anti-banding,mirror,password protection,password reset via email
