Brand New & Sealed with Manufacturer Warranty

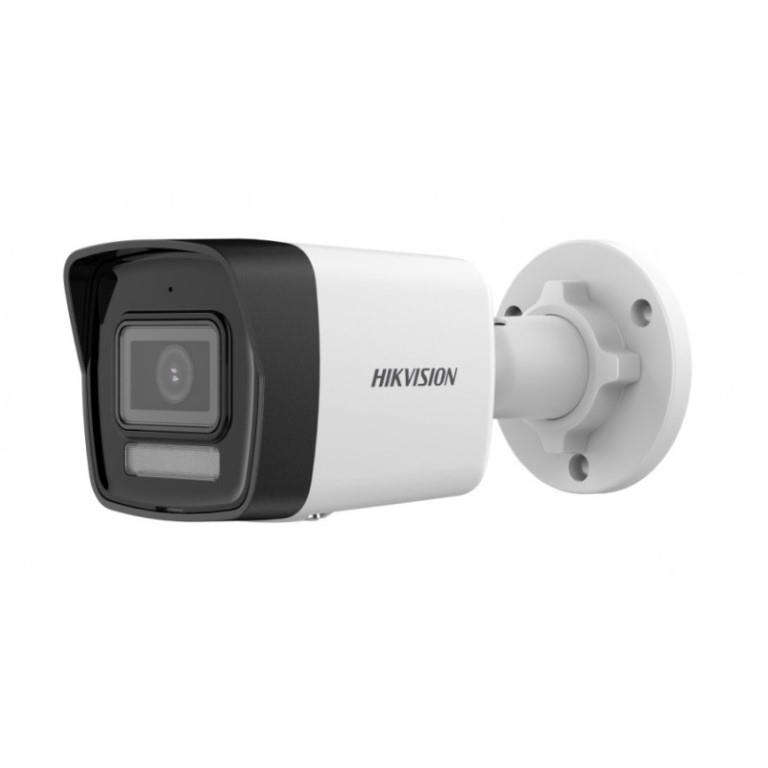

Hikvision 2MP 4mm Hybrid Light Fixed Mini Bullet Network Camera DS-2CD2021G0-LIU(4mm)
Features
Technical Specifications:
Camera
Image Sensor: 1/2.7" Progressive Scan CMOS
Max. Resolution: 1920 × 1080
Min. Illumination: Color: 0.005 Lux - (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR Cut Filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Lens
Focus: Fixed
Focal Length & FOV: 2.8 mm: horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9°; 4 mm: horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°; 6 mm: horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°
Lens Mount: M12
Aperture: F1.6
Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 30 m
IR Wavelength: 850 nm
Video
Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Region of Interest (ROI): Support 1 fixed region for main stream
Network
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface, ISAPI
User/Host: Up to 32 users; 3 levels: administrator, operator, and user
Network Storage: Support Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, 3D DNR
Wide Dynamic Range (WDR): 120 dB
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in Micro SD slot, up to 256 GB
Reset Key: Yes
Event
Smart Event: Line crossing detection, intrusion detection
Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
General
Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material: Metal, Plastic
Dimension: 69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7")
Package Dimension: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7")
Weight: Approx. 350 g (0.8 lb.); With Package Weight: Approx. 450 g (1.0 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity: 95% or less (non-condensing)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013)
