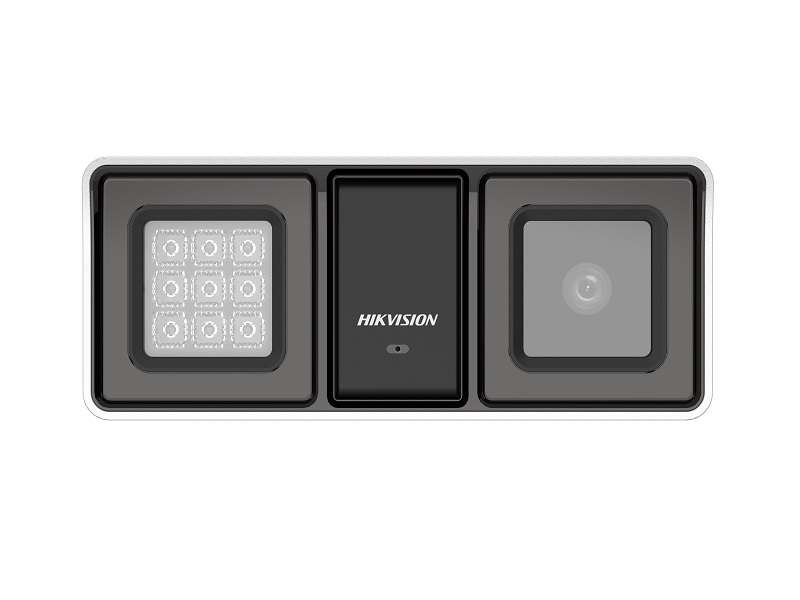

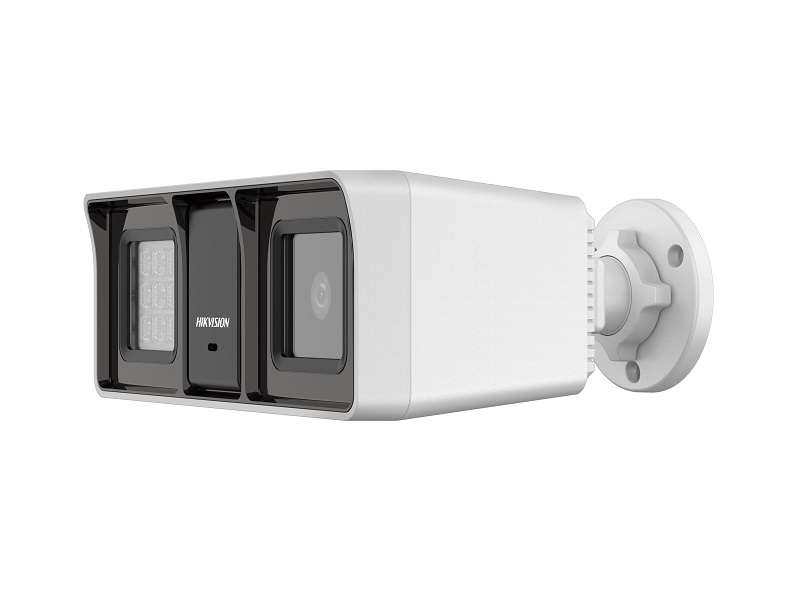

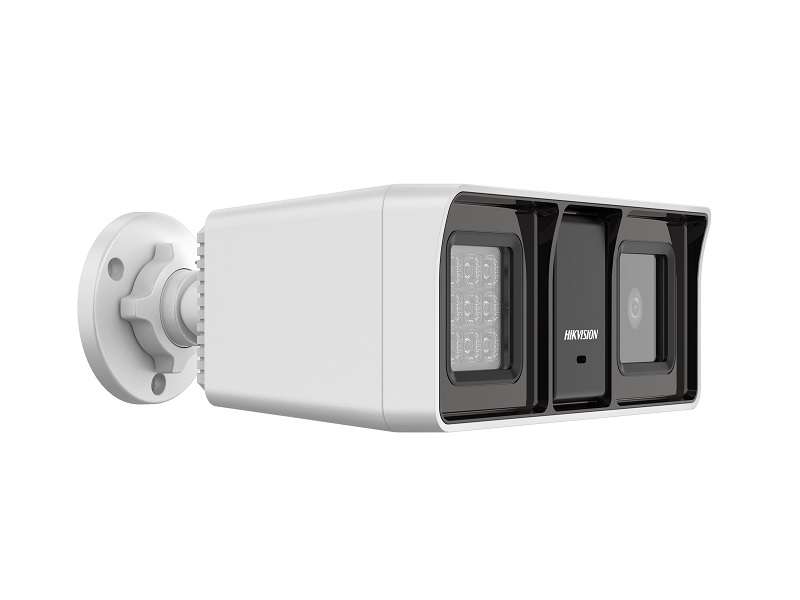

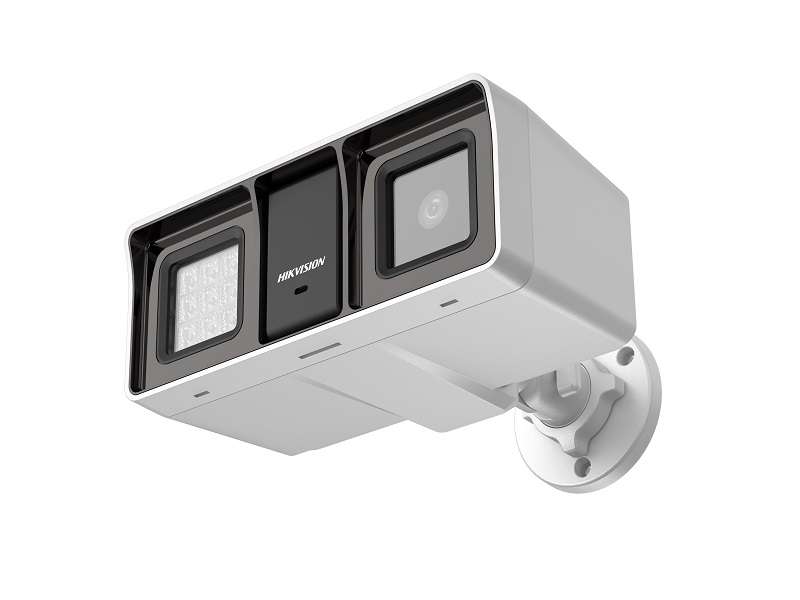

2MP Smart Hybrid Light Audio Fixed Bullet Camera
High quality imaging with 2 MP, 1920 `d7 1080 resolution
2.8 mm, 3.6 mm and 6 mm fixed focal lens
Up to 60 m IR distance for bright night imaging
Up to 60 m white light distance for bright night imaging
High quality audio with audio over coaxial cable, built-in mic
One port for four switchable signals (TVI/AHD/CVI/CVBS`a3`a9
Water and dust resistant (IP67)
Smart-Hybrid light, optimize your security with flexible lighting options
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) `d7 1080 (V)
Min. Illumination
0.01 Lux @ (F2.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0 to 360`b0, Tilt: 0 to 180`b0, Rotation: 0 to 360`b0
Signal System
PAL/NTSC
Lens
Lens Type
Fixed focal lens, 2.8 mm, 3.6 mm and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV: 101`b0, vertical FOV: 56`b0, diagonal FOV: 118`b0
3.6 mm, horizontal FOV: 78`b0, vertical FOV: 42`b0, diagonal FOV: 92`b0
6 mm, horizontal FOV: 49.2`b0, vertical FOV:28.3 `b0, diagonal FOV: 56.1`b0
Lens Mount
M12
Microphone
Pickup Distance
In a radius of up to 5 m
Amount
1
Illuminator
Supplement Light Type
Smart, IR, White Light
Supplement Light Range
IR : Up to 60 m
White Light : Up to 60 m
Image Settings
Anti-Banding, Brightness, Sharpness, Smart IR
Frame Rate
TVI: 1080P @ 30 fps, 1080P @ 25 fps
AHD: 1080P @ 30 fps, 1080P @ 25 fps
CVI: 1080P @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC
Day/Night Mode
Auto/Color
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
DWDR/BLC/HLC/Global
White Balance
Auto/Manual
AGC
Yes
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Power
12 VDC `b1 25%, max.9.8 W,*You are recommended to use one power adapter to supply the power for one camera.
Material
Front cover: Metal
Main body: Plastic
Dimension
192.6 mm `d7 178.3 mm `d7 71 mm (7.58" `d7 7.02" `d7 2.8")
Approx. 738 g (1.63 lb.)
Operating Condition
-40 `b0C to 60 `b0C (-40 `b0F to 140 `b0F), humidity: 90% or less (non-condensation)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP67
