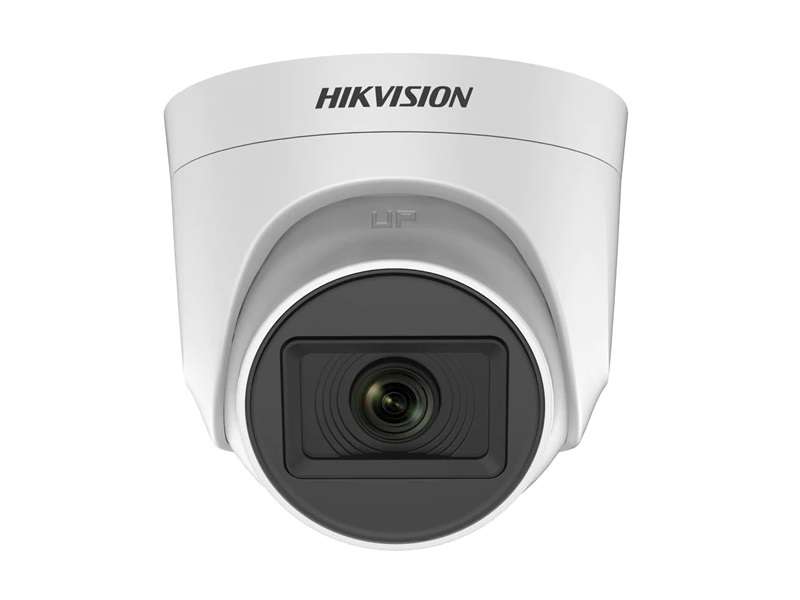

2 MP Indoor Fixed Turret Camera
High quality imaging with 2 MP, 1920 `d7 1080 resolution
2.8 mm, 3.6 mm fixed lens
Up to 20 m IR distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Camera
Model
DS-2CE76D0T-EXIPF
Product Name
2MP Indoor EXIR Fixed Turret Camera
Image Sensor
2 MP CMOS
Signal System
PAL/NTSC
Resolution
1920 (H) `d7 1080 (V)
Frame Rate
TVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination
0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens
2.8 mm, 3.6 mm Fixed Lens
Field Of View
2.8 mm, horizontal FOV: 96.5`b0, vertical FOV: 48.9`b0, diagonal FOV: 120.5`b0
3.6 mm, horizontal FOV: 76.9`b0, vertical FOV: 40.6`b0, diagonal FOV: 92.0`b0
Lens Mount
M12
Day & Night
IR Cut Filter
WDR (Wide Dynamic Range)
Digital WDR
Angle Adjustment
Pan: 0`b0 to 360`b0, Tilt: 0`b0 to 75`b0, Rotation: 0`b0 to 360`b0
Image Mode
STD/HIGH-SAT
AGC
Yes
Day/Night Mode
Auto/Color/BW (Black and White)
White Balance
Auto
AE (Auto Exposure) Mode
BLC;Global;DWDR
Noise Reduction
2D DNR
Language
English
Function
Sharpness;Smart IR;Mirror;Brightness
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions
-40`b0C to 60`b0C (-40`b0F to 140`b0F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC `b1 25%
Consumption
Max. 3.3 W
Material
Plastic
IR Range
Up to 20 m
Communication
HIKVISION-C
Dimension
`d6 84.6 mm `d7 78.9 mm (`d6 3.33" `d7 3.11")
Weight
Approx. 195g (0.43 lb.)
