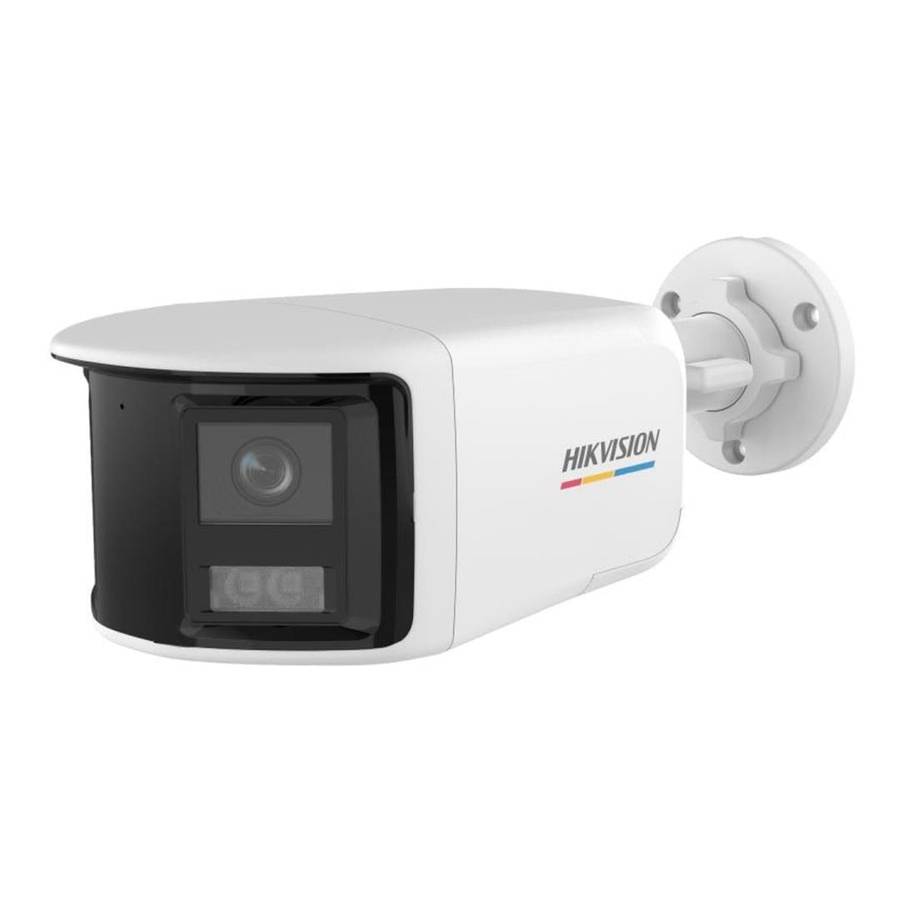

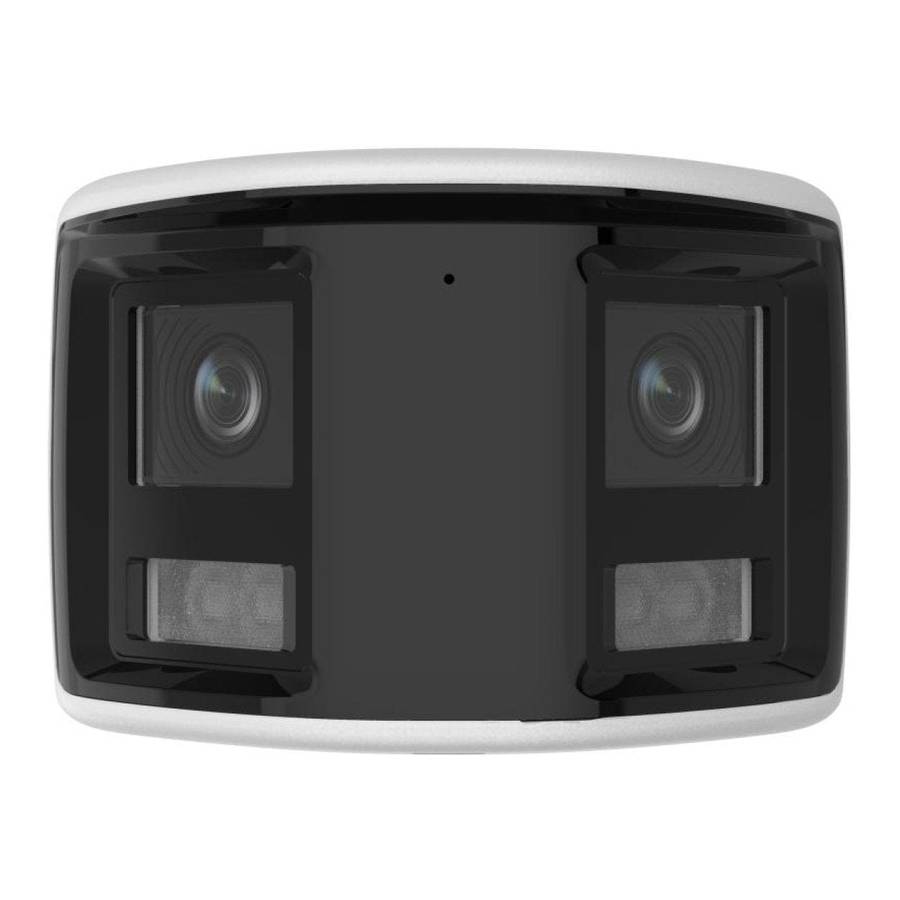

Hikvision 3K ColorVu Dual-Lens Fixed Bullet Camera DS-2CE12KF3TP-DLS
The camera features a 3K CMOS sensor with a maximum resolution of 3328 × 1504 and supports shutter speeds from 1/20 s to 1/50,000 s, including a slow shutter mode up to 16×. It delivers excellent low-light performance with a minimum illumination of 0.0005 Lux (F1.0, AGC ON) and 0 Lux when using white light.
Features:
Equipped with a 2.8 mm fixed focal lens, the camera provides a wide field of view (180° horizontal, 75° vertical). Its pan, tilt, and rotation ranges allow flexible positioning (Pan: 0°—360°, Tilt: 0°—180°, Rotate: 0°—360°). IR and white-light illumination support up to 40 m, with smart supplementary lighting for optimal visibility in various conditions.
The camera includes advanced image processing features such as WDR 130 dB, 3D DNR noise reduction, BLC/HLC, and multiple image parameter settings (brightness, contrast, sharpness, Smart IR, Anti-Banding, AGC). Day/Night mode and auto/manual white balance enhance clarity in varying lighting. Privacy is protected with four programmable masks.
For connectivity, it provides one HD analog output and a built-in microphone. Motion detection supports four programmable areas. The device operates under extreme conditions (-40°C to 60°C, up to 90% non-condensing humidity) and has an IP67-rated weatherproof metal front cover and plastic main body.
Power is 12 VDC ±25% with a maximum consumption of 7.2 W, with guidance on adapter requirements for high-impedance cables. The camera uses HIKVISION-C communication protocol and weighs approximately 630 g, with dimensions of 234.46 × 103.58 × 76.01 mm.
Technical Specifications:
Camera
Max. Resolution: 3328 × 1504
Shutter Time: 1/20 s to 1/50,000 s
Image Sensor: 3K CMOS
Slow Shutter: Max. 16×
Min. Illumination: 0.0005 Lux - F1.0, AGC ON; 0 Lux with white light
Angle Adjustment: Pan 0°—360°, Tilt 0°—180°, Rotate 0°—360°
Lens
Type: 2.8 mm fixed focal lens
Focal Length & FOV: 2.8 mm, Horizontal 180°, Vertical 75°
Mount: M12
Illuminator
Supplement Light Range: IR up to 40 m, White Light up to 40 m
Smart Supplement Light: Yes
Frame Rate: 3K -20 dual
Privacy Mask: 4 programmable
WDR: 130 dB
Image Parameters Switch: STD / HIGH-SAT / HIGHLIGHT
Day/Night Mode: Auto
White Balance: Auto / Manual
Image Enhancement: WDR, BLC, HLC, Global
Noise Reduction: 3D DNR
Image Settings: Brightness, Contrast, Smart IR, Sharpness, Anti-Banding, AGC
Interface
Video Output: 1 HD analog output
Built-in Microphone: Yes
Event
Motion Detection: 4 programmable areas
General
Power: 12 VDC ±25%, max. 7.2 W (recommend one adapter per camera; 15 VDC required for high-impedance cable like 18 m extension)
Language: English
Operating Condition: -40 °C to 60 °C, Humidity 90% (non-condensing)
Material: Front cover Metal, Main body Plastic
Communication: HIKVISION-C
Dimensions: 234.46 × 103.58 × 76.01 mm (9.23" × 4.08" × 2.99")
Weight: Approx. 630 g (1.39 lb.)
Protection: IP67
