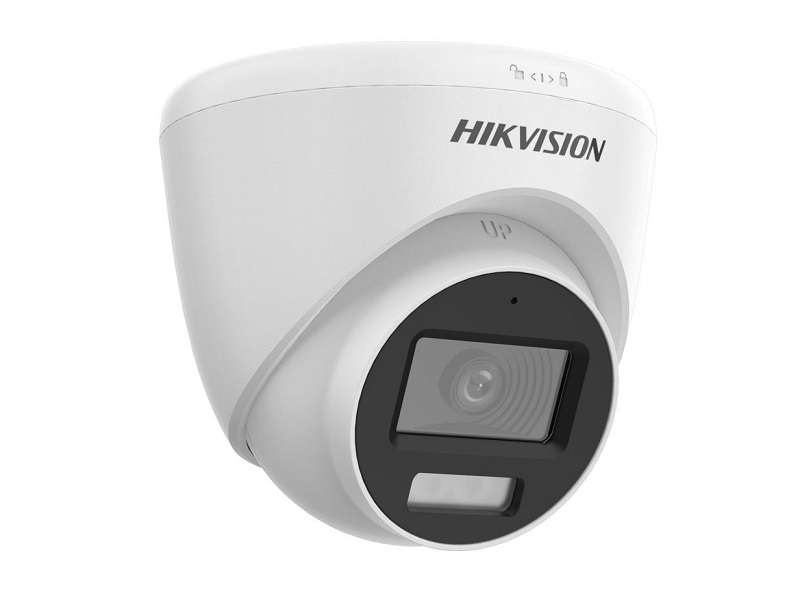

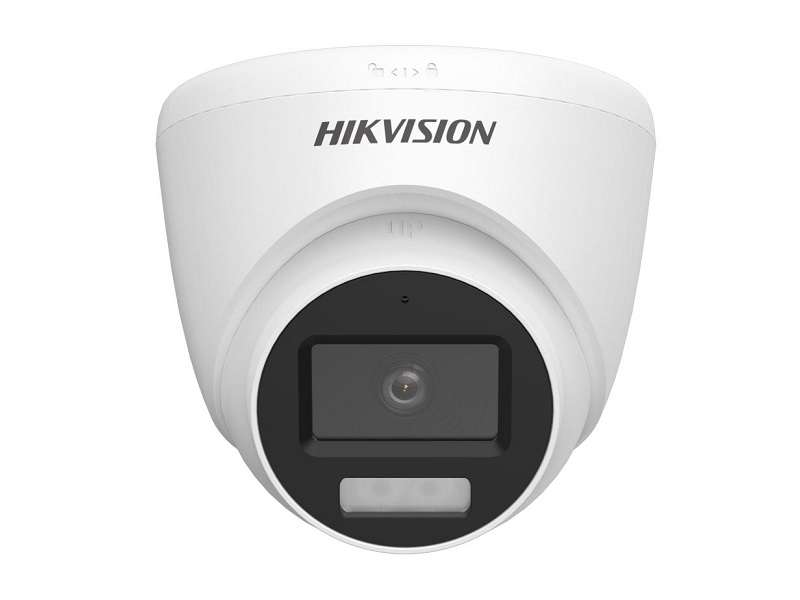

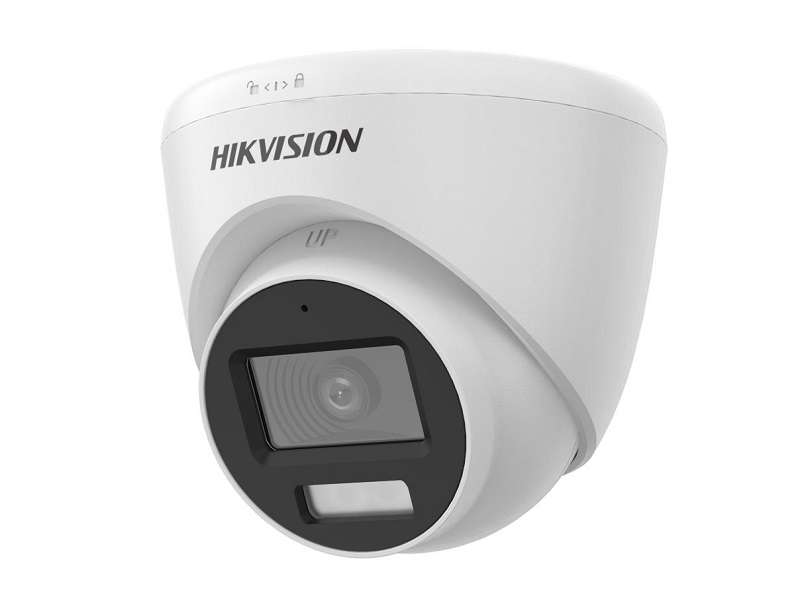

3K Smart Hybrid Light Audio Fixed Turret Camera
High quality imaging with 3K, 2960 `d7 1665 resolution
2.8 mm and 3.6 mm fixed focal lens
Up to 40 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS`a3`a9
Water and dust resistant (IP67)
High quality audio with audio over coaxial cable, built-in mic
Smart-Hybrid light, optimize your security with flexible lighting options
Camera
Image Sensor
3K CMOS
Max. Resolution
2960 (H) `d7 1665 (V)
Min. Illumination
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & Night
ICR
Angle Adjustment
Pan: 0 to 360`b0, Tilt: 0 to 75`b0, Rotation: 0 to 360`b0
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 105`b0, vertical FOV: 62`b0, diagonal FOV: 132`b0
3.6 mm, horizontal FOV: 92`b0, vertical FOV: 48`b0, diagonal FOV: 112`b0
Lens Mount
M12
Microphone
Pickup Distance
In a radius of up to 5 m
Amount
1
Illuminator
Supplement Light Type
Smart, IR, White Light
Supplement Light Range
IR : Up to 40 m
White Light : Up to 20 m
Image Settings
Brightness, Sharpness, Smart IR
Frame Rate
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC
Day/Night Mode
Auto/Color
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
DWDR/BLC/HLC/Global
White Balance
Auto/Manual
AGC
Yes
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Material
Body`a3`baMetal
Enclosure`a3`ba Plastic
Dimension
97.9 mm `d7 `d8110 mm (3.85" `d7 `d84.33")
Weight
Approx. 340 g (0.75 lb.)
Operating Condition
-40 `b0C to 60 `b0C (-40 `b0F to 140 `b0F), humidity: 90% or less (non-condensation)
Communication
HIKVISION-C
Language
English
Power Supply
12 VDC `b1 25%
*You are recommended to use one power adapter to supply the power for one camera.
Consumption
Max. 3.3 W
Approval
Protection
IP67
