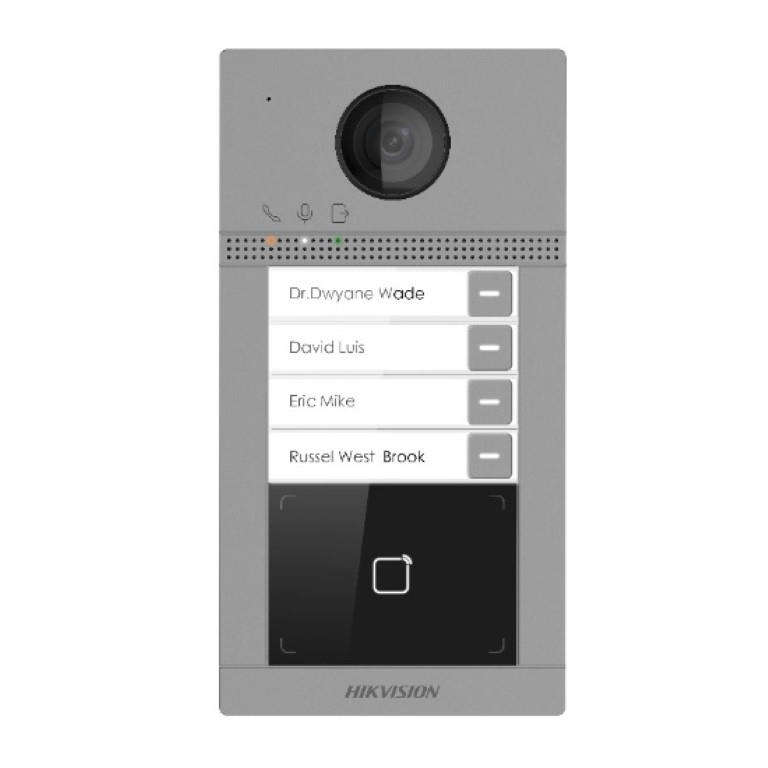

Hikvision 4-button Metal Villa Door Station

• Support Wifi, convenient setting up and no wiring required
• Support web configuration
• Aluminum alloy, Nice industry design, IP65, IK08, 3 indicator integrated
• Internal Mifare card reader, 4-ch Indoor station access control
• Noise suppression and echo cancellation
• 2MP HD Camera with IR supplement
• Standard PoE/12 VDC

Video Parameters

Supplement Light: IR supplement

Lens: 1

FOV: Horizontal: 129° Vertical: 75°

Pixel:

• Main stream : 1920 × 1080
• Sub stream : 720 × 480

Audio Parameters

Audio Quality: Noise suppression and echo cancellation

Network Parameters

Communication Protocol: TCP/IP, RSTP

Wired Network: 10/100 Mbps self-adaptive Ethernet

Device Interfaces:

Network Interface: 1

Exit Button: 2

Lock Control: 2

Door Contact Input: 2

Power Interface: 1

General

Button: 4

Installation: Flush mounting, Surface Mounting

Indicator: 3

Protective Level: IP65, IK08

Power Supply Method:

• IEEE802.3af, standard PoE
• 12 VDC

Working Temperature: -40° C to +55° C(-40° F to 131° F)

Working Humidity: 10% to 95%

Dimensions: 174 mm × 91 mm × 29 mm

Application Environment: Outdoor

Power Consumption:  10 W

Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
