Hikvision 4-Channel ColorVu CCTV Kit a full-featured, easy-to-install surveillance solution built for continuous full-color video and intelligent motion detection. This kit features 2MP Smart Hybrid Light ColorVu mini bullet cameras that deliver stunning 1080p resolution, even in total darkness, thanks to advanced F1.0 aperture and Smart Hybrid white light/IR technology with up to 20m visibility. Enhanced by 3D DNR for sharp, noise-free images and built-in microphones for audio over coaxial cable, these cameras are IP67-rated for water and dust resistance perfect for both indoor and outdoor use.
The included 4-channel DVR is powered by eSSD technology, offering a built-in 1TB solid-state drive for faster performance, ultra-low power consumption, and long-term reliability. This comprehensive kit is bundled with all essential accessories for a complete setup: ZATECH 20-meter ready-made cables, a ZATECH junction box for clean camera wiring, a ZATECH 4-channel power supply, and a DCW4P distributor for efficient and organized power management. Ideal for homes, small businesses, shops, and offices, this system combines cutting-edge technology with simple installation to deliver professional-grade, intelligent security.
Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360 ,Tilt: 0 to 90 ,Rotate: 0 to 360
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV2.8 mm, horizontal FOV: 105 , vertical FOV: 56 , diagonal FOV: 126 3.6 mm, horizontal FOV: 84 , vertical FOV: 46 , diagonal FOV: 98
- Lens MountM12
- Microphone
- Pickup DistanceIn a radius of up to 5 m
- Amount1
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m
- Image
- Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
- Image SettingsBrightness, Sharpness, Anti-banding, AGC
- Frame RateTVI: 1080p @25 fps/30 fpsCVI: 1080p @25 fps/30 fpsAHD: 1080p @25 fps/30 fpsCVBS: PAL/NTSC
- Day/Night ModeAuto/Color
- Wide Dynamic Range (WDR)Digital WDR
- Noise Reduction3D DNR/2D DNR
- Image EnhancementDWDR,BLC,HLC,Global
- White BalanceAuto, Manual
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
eDVR
- Motion Detection 2.0
- Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
- Video and Audio
- IP Video Input1-chUp to 1080p resolutionSupport H.265+/H.265 IP cameras
- Analog Video Input4-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputSupport
- HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input4-ch via coaxial cable
- Audio Output1-ch via HDMI
- Synchronous playback4-ch
- Recording
- Video CompressionH.265 Pro/H.265
- Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
- Frame RateMain stream:1080p Lite/720p/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N)Note:1080p Lite/720p is 15 fps by defaultSub-stream:4CIF@15 fps; CIF/QVGA@25 fps (P)/30 fps (N)
- Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
- Stream TypeVideo, Video & AudioNote: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Total Bandwidth64 MbpsIncoming bandwidth: 4 Mbps
- Remote Connection32
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP , HTTPS
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- CapacityBuilt-in 1024 GB eSSD (960 GB available)Note:The device can store about 8 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only.
- USB InterfaceRear panel: 2 × USB 2.0
- Alarm In/OutN/A

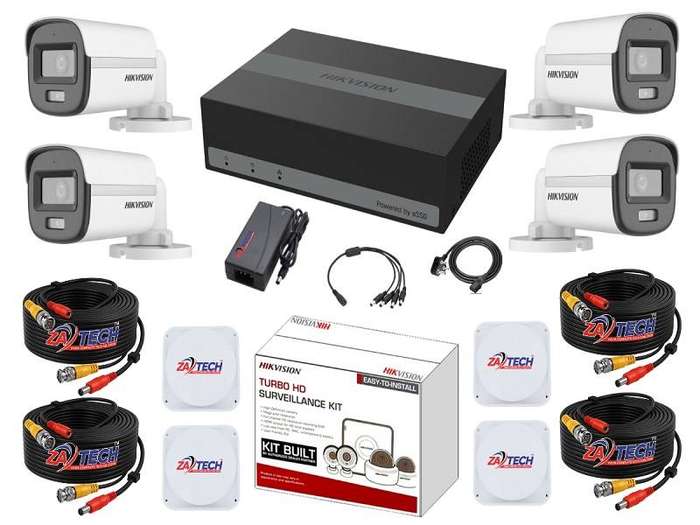

Whats in the box
4 x 2 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera
1 x 4-ch 1080pLite 1U H.265 eSSD DVR
4 x Zatech 20M meter ready-made cables
4 x Zatech Junction Box
1 x Zatech power supply
1 x DCW4p
