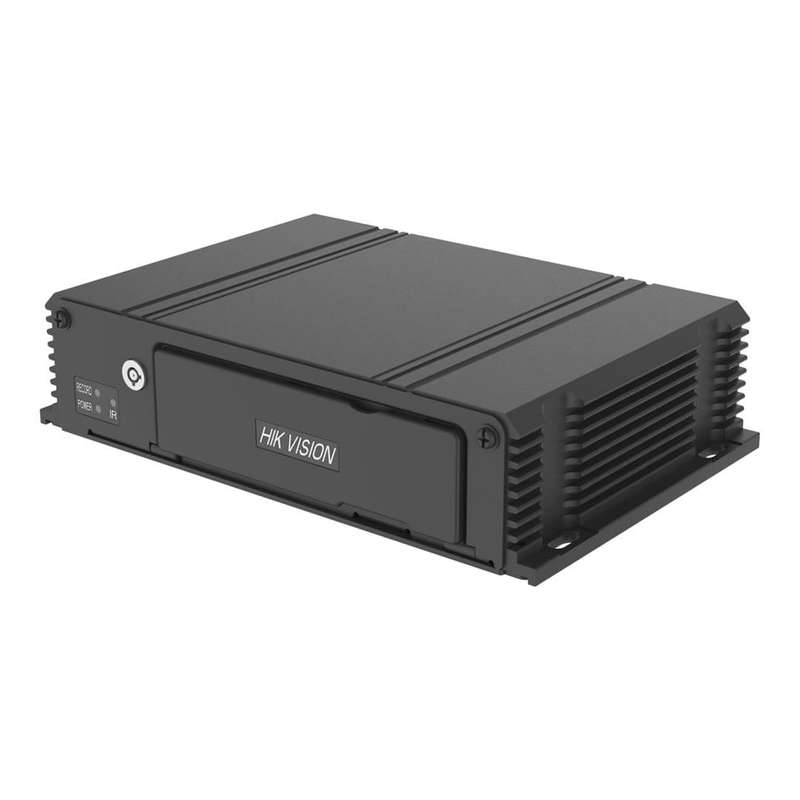

Hikvision 4-ch Mobile DVR AE-MD5043-SD/GLF/WI58

Features

• Access of 4x HD TVI cameras with up to 1080P resolution.
• 2x SD cards accessible. Up to 512 GB capacity for each.
• Support recording backup on redundant SD cards.
• User-friendly GUI providing easy and flexible operations.
• Built-in 4G module and Wi-Fi module providing flexible data transmission solutions. Only for product models that support 4G & Wi-Fi.
• Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
• Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
• Specialized aviation connectors ensuring signal stability.
• Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
• Build-in super-capacitor prevents the mobile DVR from damage caused by sudden power outage.
• Wide-range power input (+9 VDC to +36 VDC).
• Power-off protection prevents key data loss.
• Aluminum die-cast chassis with no fan design well adaptable to working environment.
• Software-based firewall supported.
• Support accessing via WEB browser.

Technical Specification

Video/Audio Input

• Analog Camera: 4-ch HIK wiring sequence analog camera, Max. 1080P
• Audio Input: Support up to 3 channels of camera audio (channel 2~4) and 1 channel of two-way audio
• Two-way Audio: 1x, integrated in EXT.DEV interface

Video/Audio Output

• Audio Output: 1
• Video Output: Main output: 1, integrated in EXT.DEV interface

Wireless Network

• WI58 module: 1x FAKRA antenna, 1x Wi-Fi SMA antenna
• WI-FI Mode: WEP, WPA-personal, WPA2-personal

3G/4G Dialing: 1x 4G card slot, 1x FAKRA antenna

Storage

• SD Card Storage: 2x SD card slots, each up to 512 GB

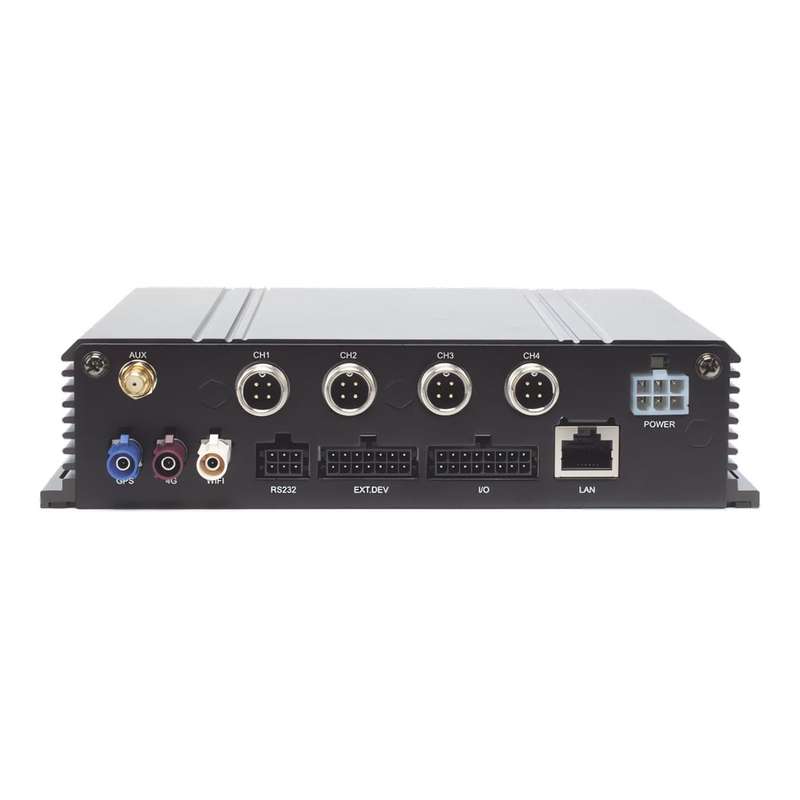

Auxiliary Interface

• Network Interface: Rear panel: 1x 10M/100M RJ45
• Alarm Input: 4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
• Alarm Output: 2 relay signal outputs
• Sensor-in: 4x high/low level signal inputs
• Serial Port: 1x RS-232, 1x RS-485 (integrated in EXT.DEV interface)
• USB Interface: Front panel: 1x USB 2.0

Positioning

• GNSS (Global Navigation Satellite System): GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1x FAKRA antenna

Sensor

• G-Sensor: Built-in
