Hikvision 4-Channel ColorVu CCTV Kit with 1TB HDD, ZATECH RG59 Cable Roll

Protect your property with the Hikvision 4-Channel ColorVu CCTV Kit a powerful surveillance system built for vibrant, 24/7 color video and intelligent security. This all-in-one kit includes 2MP Smart Hybrid Light ColorVu mini bullet cameras that capture crisp 1920 × 1080 resolution video. With a large F1.0 aperture and Smart Hybrid Light, these cameras deliver bright full-color images in complete darkness, reaching up to 20 meters using both white and IR light. They also feature 3D DNR for reduced image noise, and a built-in microphone for audio over coaxial cable. Supporting four switchable video signals (TVI/AHD/CVI/CVBS), the cameras are IP67-rated for water and dust resistance, making them ideal for both indoor and outdoor use.

The included 4-channel H.265 DVR offers advanced video compression (H.265 Pro+/Pro), supports HDTVI/AHD/CVI/CVBS/IP inputs,Long-distance transmission of up to 1200 meters is supported for HDTVI 720p signals. This complete kit includes a 1TB Western Digital hard drive for continuous recording, a ZATECH RG59 100m cable roll for flexible camera installations, a Hikvision 4-channel power supply, and DCW/DC connectors for secure and easy setup. Its a reliable, high-performance security solution perfect for homes, offices, and retail spaces.

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360 ,Tilt: 0 to 90 ,Rotate: 0 to 360
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 105 , vertical FOV: 56 , diagonal FOV: 126 3.6 mm, horizontal FOV: 84 , vertical FOV: 46 , diagonal FOV: 98
• Lens MountM12
• Microphone
• Pickup DistanceIn a radius of up to 5 m
• Amount1
• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Anti-banding, AGC
• Frame RateTVI: 1080p @25 fps/30 fpsCVI: 1080p @25 fps/30 fpsAHD: 1080p @25 fps/30 fpsCVBS: PAL/NTSC
• Day/Night ModeAuto/Color
• Wide Dynamic Range (WDR)Digital WDR
• Noise Reduction3D DNR/2D DNR
• Image EnhancementDWDR,BLC,HLC,Global
• White BalanceAuto, Manual
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

DVR

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
• Video and Audio
• IP Video Input1-ch (up to 5-ch)Up to 1080p resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input4-chBNC interface (1.0 Vp-p, 75 ), supporting coaxitron connection
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input1-ch RCA (2.0 Vp-p, 1 K )4-ch via coaxial cable
• Audio Output1-ch, RCA (Linear, 1 K )
• Two-Way AudioReuse the first audio input
• Synchronous playback4-ch
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIF
• Frame RateMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth64 Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP , HTTPS
• Remote Connection32
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 4 TB capacity for each disk
• USB InterfaceRear panel: 2 × USB 2.0
• Alarm In/OutN/A

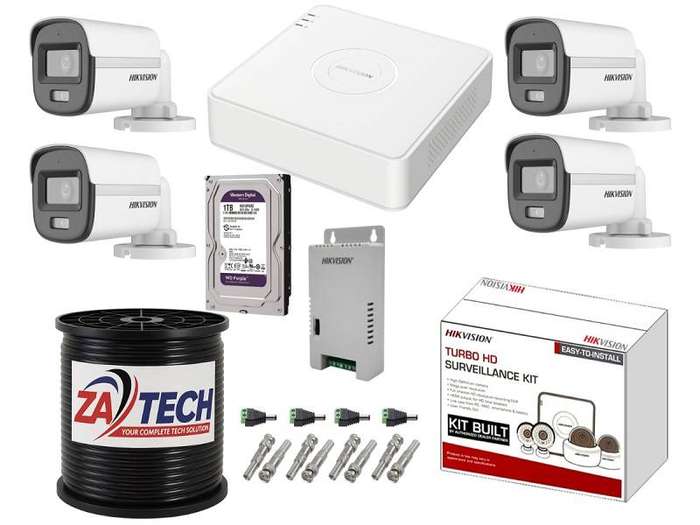

Whats in the box
1 x 2 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera
1 x 4-ch 720p Mini 1U H.265 DVR
1 x 1 TB HDD
1 x Zatech RG59 100m cable roll
1 x Hikvision power supply
8 x BNC connector
4 x DC connector
