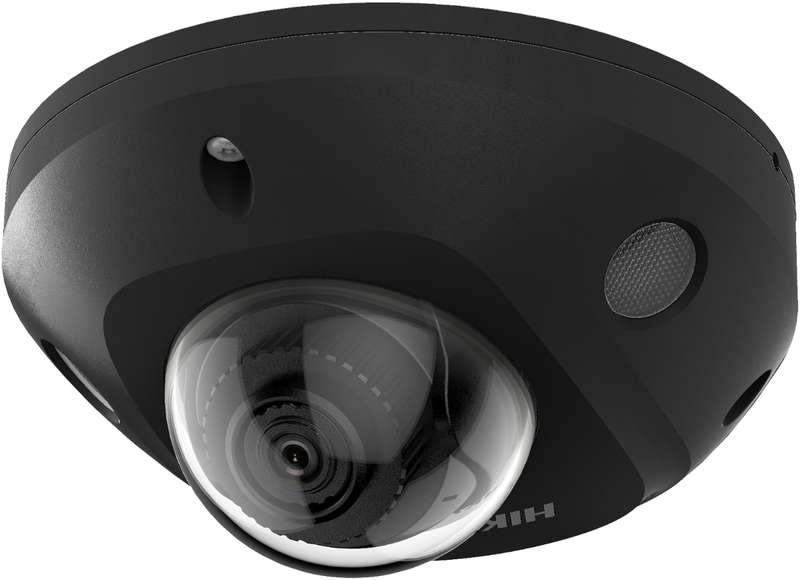

Hikvision 4 MP AcuSense Built-In Mic fixed Mini Dome Network camera with 2.8mm Lens, 1/3" Progressive Scan CMOS image sensor, 2688 x 1520 Maximum Resolution, M12 Lens Mount, Up to 30m IR light range, H.265 / H.264 / H.265+ / H.264+ Video Compression, 120 dB wide Dynamic range (WDR), BLC, HLC, 3D DNR, 1x RJ45 10M/100M self-adaptive Ethernet Port, Built-In Memory card slot support MicroSD card, Built-In Microphone, 1x Input (Line in) audio, 1x Output (Line out) audio, 1x Input & 1x Output alarm,Overview:DS-2CD2546G2-I(S) - 4 MP Acusense Built-in Mic Fixed Mini Dome Network CameraHigh quality imaging with 4 MP resolutionExcellent low-light performance with powered-by-DarkFighter technologyFocusing on human and vehicle classification based on deep learningClear imaging against strong back light due to 120 dB WDR technologyEfficient H.265+ compression technology-S: audio and alarm interface available-W: Realizing Wi-Fi connection and easy installationWater and dust resistant IP67 and vandal proof IK08Specifications:CameraImage Sensor 1/3" Progressive Scan CMOSMax. Resolution 2688 x 1520Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IRShutter Time 1/3 s to 1 / / / 100,000 sDay & Night IR cut filterAngle Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°LensLens Type Fixed focal lens, 2.8 and 4 mm optionalFocal Length & FOV 2.8 mm, horizontal FOV 102.7°, vertical FOV 55.2°, diagonal FOV 122.5°4 mm, horizontal FOV 82.8°, vertical FOV 45.3°, diagonal FOV 97.7°Lens Mount M12Iris Type FixedAperture F1.4Depth of Field 2.8 mm: 1.6 m to 4 mm: 2.1 m to DORIDORI 2.8 mm:D: 64 mO: 26 mR: 13 mI: 6 m4 mmD: 77 mO: 31 mR: 16 mI: 8 mIlluminatorSupplement Light Type IRSupplement Light Range Up to 30 mSmart Supplement Light YesIR Wavelength 850 nmVideoMain Stream 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)Sub-Stream 50 Hz: 25 fps (640 x 480, 640 x 360)60 Hz: 30 fps (640 x 480, 640 x 360)Third Stream 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)*Third stream is supported under certain settings.Video Compression Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.Video Bit Rate 32 Kbps to 8 MbpsH.264 Type Baseline Profile/Main Profile/High ProfileH.265 Type Main ProfileBit Rate Control CBR/VBRScalable Video Coding (SVC) H.264 and H.265 encodingRegion of Interest (ROI) 1 fixed region for main stream and sub-streamAudioAudio Type -IS/IWS: Mono soundAudio Compression -IS / IWS: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AACAudio Bit Rate -IS / IWS: 64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC)Audio Sampling Rate -IS/IWS: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHzEnvironment Noise Filtering -IS/IWS: YesNetworkProtocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1 (except for -W model), QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARPSimultaneous Live View Up to 6 channelsAPI Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDKUser/Host Up to 32 users. 3 user levels: administrator, operator and userSecurity Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video InterfaceNetwork Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supportedClient iVMS-4200, Hik-Connect, Hik-CentralWeb Browser Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+Wi-FiEncryption Mode -W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSKWi-Fi Protocol -W:802.11b: CCK, QPSK, BPSK802.11g/n: OFDMFrequency Range -W: 2.4 GHz to 2.4835 GHzChannel Bandwidth -W: 20/40 MHzModulation -W:802.11b: CCK, QPSK, BPSK802.11g/n: OFDMTransfer Rate -W:802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 300 MbpsWireless Range -W: Up to 80 m (The performance varies based on actual environment)ImageImage Parameters Switch YesImage Settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browserDay/Night Switch Day, Night, Auto, ScheduleWide Dynamic Range (WDR) 120 dBSNR 52 dBImage Enhancement BLC, HLC, 3D DNRInterfaceEthernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet portOn-Board Storage Built-in memory card slot, support microSD card, up to 256 GBBuilt-in Microphone YesAudio -IS/IWS:1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K, interface type: non-equilibrium1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 , interface type: non-equilibriumAlarm -IS/IWS:1 input, 1 output (max. 12 VDC, 20 mA)Reset Key YesEventBasic Event Motion detection (human and vehicle targets classification), video tampering alarm, exceptionSmart Event Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))Scene change detectionLinkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send emailDeep Learning FunctionFace Capture YesGeneralPower -IS:12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W-IWS:12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 WMaterial Base: aluminum, cover: plasticDimension Ø110 mm x 57.4 mm (Ø 4.3" x 2.3")Package Dimension 134 mm x 134 mm x 108 mm (5.3" x 5.3" x 4.3")Weight Approx. 380 g (0.8 lb.)With Package Weight Approx. 620 g (1.4 lb.)Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianGeneral Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counterApprovalRF -W:FCC ID (FCC Part 15.247(BT or 2.4G))CE-RED (EN 301489-1 V2.1.1(BT or 2.4G), EN 301489-17 V3.1.1(BT or 2.4G), EN 300328 V2.1.1(BT or 2.4G), EN 62311:2008(BT or 2.4G))EMC FCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)
