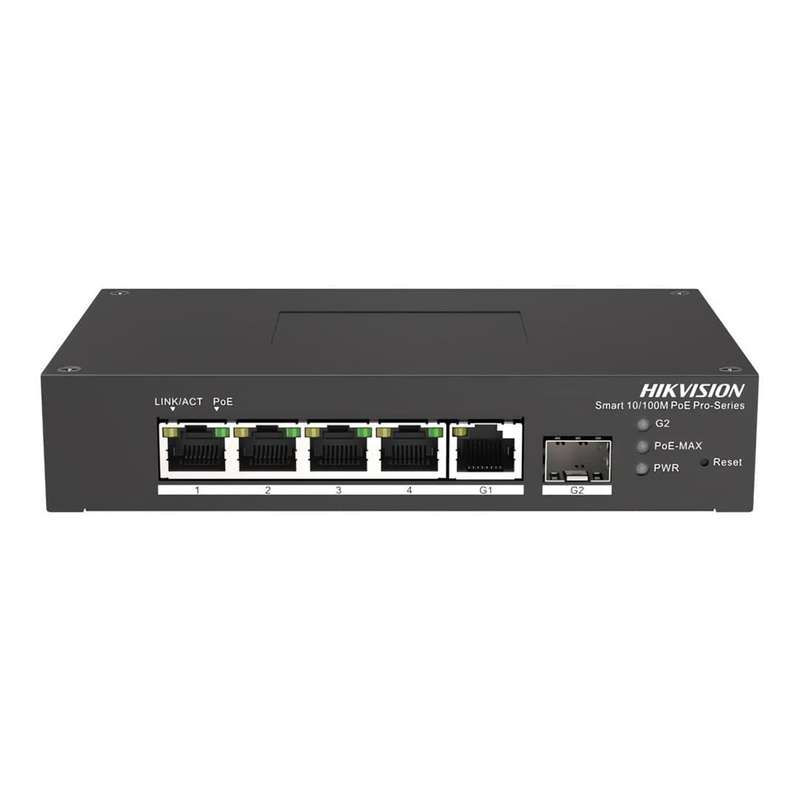

Hikvision 4-port Fast Ethernet Smart Managed Harsh PoE Switch DS-3T1306P-SI/HS

Discover 22,000+ In-Stock Products!

https://www.bobshop-/store/FirstShop

Brand New & Sealed with Manufacturer Warranty!

Available: Mon—Fri, 08:00—17:00 - Closed on weekends & public holidays

Hikvision 4-port Fast Ethernet Smart Managed Harsh PoE Switch DS-3T1306P-SI/HS

Smart managed switches are developed by Hikvision, featuring easy management and maintenance. You can easily deploy, monitor, and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network, and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.

Features

• Visualized topology management.
• Network health monitor.
• Layer 2 features: PoE watchdog, STP/RSTP, VLAN, SNMP, QoS, ERPS, etc.
• -30 °C to 65 °C wide temperature range in harsh environment.

Technical Specification

Product: Hikvision 4-port Fast Ethernet Smart Managed Harsh PoE Switch

Ports: 4x 10/100 Mbps PoE port , 1x Gigabit RJ45 port , 1x Gigabit fiber optical port

MAC Address Table: 2 K

Switching Capacity

• Whole-Device Performance: 14 Gbps
• Port Performance: 4.8 Gbps

Packet Forwarding Rate

• Whole-Device Performance: 10.42 Mpps
• Port Performance: 3.57 Mpps

Internal Cache: 1 Mbits

PoE Standard: IEEE 802.3af, IEEE 802.3at

PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Ports: Ports 1 to 4

Max. Port Power: 30 W

PoE Power Budget: 60 W

Dimensions (W × H × D): 158.00 mm × 101.20 mm × 31.60 mm

Surge Protection: 6 kV

Power Supply: 48VDC, 1.36A

Installation Mode: Desk-Mounted, Rail
