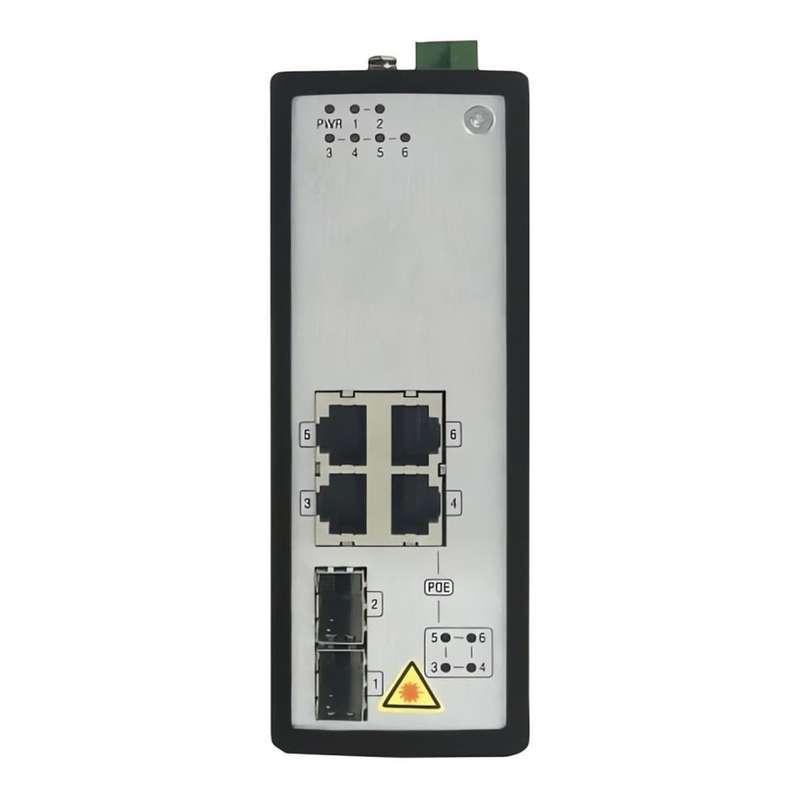

Hikvision 4-port GbE POE Unmanaged Industrial Switch with 2x SFP ports DS-3T0506P

The Hikvision DS-3T0506P unmanaged industrial switch can support two gigabit SFP slots and four Gigabit electrical ports. Designed for harsh industrial environments, it can provide an economical solution for your industrial Ethernet connection. The DS-3T0506P PoE model supports centralized power supply and each port provides 30 W power. The operating temperature of industrial switches ranges from -40 °C to 75°C. All models undergo rigorous aging tests to ensure they meet the specific needs of industrial automation control applications. In addition, the DS-3T0506P unmanaged switch features a rugged aluminum alloy housing that ensures suitability for industrial environments and an option for fiber connection.

Features

• Full gigabit port
• The backplane bandwidth is 20 Gbps
• Supports PoE power supply and IEEE 802.3AF/AT standards.
• The maximum output power of each PoE port is 30 W.
• PoE management: PoE device detection and PoE power management
• Adopt redundant dual power input design
• Die cast aluminum alloy housing.
• No fan, -40 °C to 75 °C operating ambient temperature.
• MTBF 400,000 hours.
• 6 KV Surge Protection.

Technical Specification

Ports: 4x Gigabit RJ45 port, 2x Gigabit fiber optical port

MAC Address Table: 4 K

Switching Capacity: 20 Gbps

PoE Power Supply

• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin: Mid-span: 1/2(+), 3/6(-)
• Max. Port Power: 30 W
• PoE Port: Ports 3 to 6
• PoE Power Budget: 120 W

Installation Mode: Desk-Mounted
