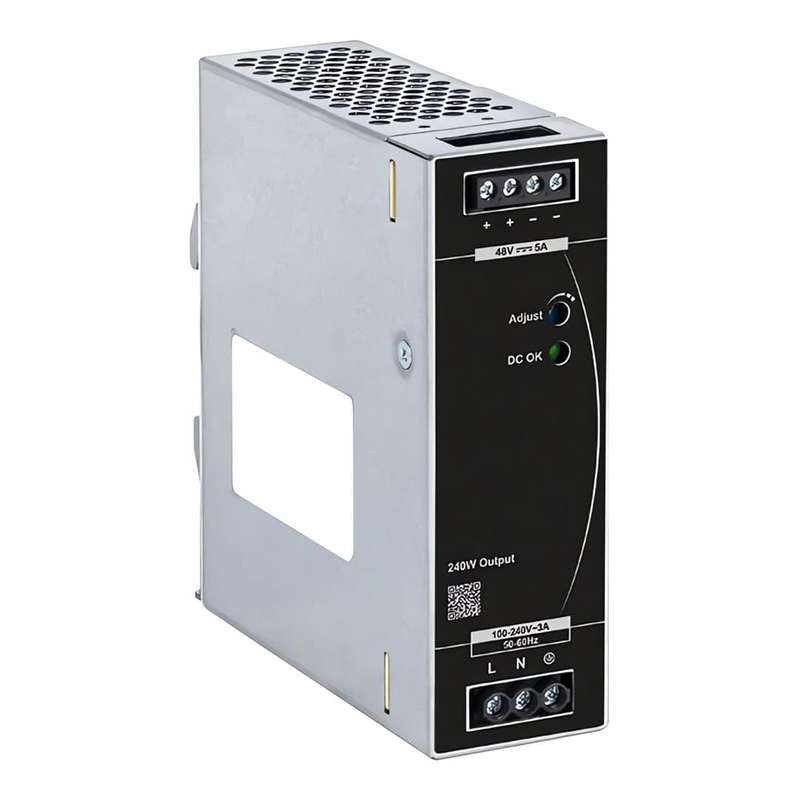

Hikvision 48V 240W Industrial DIN Rail Power Supply DRL-48V240W1EN
Features
Technical Specification
Output Voltage: 48V
Output Power: 240W
Output Current: 5A
Rise Time: 30ms typ. - 115Vac & 230Vac
Start-up Time: 500ms typ. - 115Vac & 230Vac
Hold-up Time: 20ms typ. - 115Vac (100% load) ; 20ms typ. - 230Vac (100% load)
Nominal Input Voltage: 100 - 240Vac
Input Voltage Range: 90 - 264Vac
Input Current: 2.5A typ. - 115Vac, 1.3A typ. - 230Vac
Max Inrush Current (Cold Start): 40A typ. - 230Vac
Dimensions (H x W x D): 123.6 x 40 x 116.8 mm
Unit Weight: 0.62 kg
Terminal Input: 3 Pins (Rated 300V/30A)
Terminal Output: 4 Pins (Rated 300V/20A)
Wire Input: AWG 18-12
Wire Output: AWG 18-12
