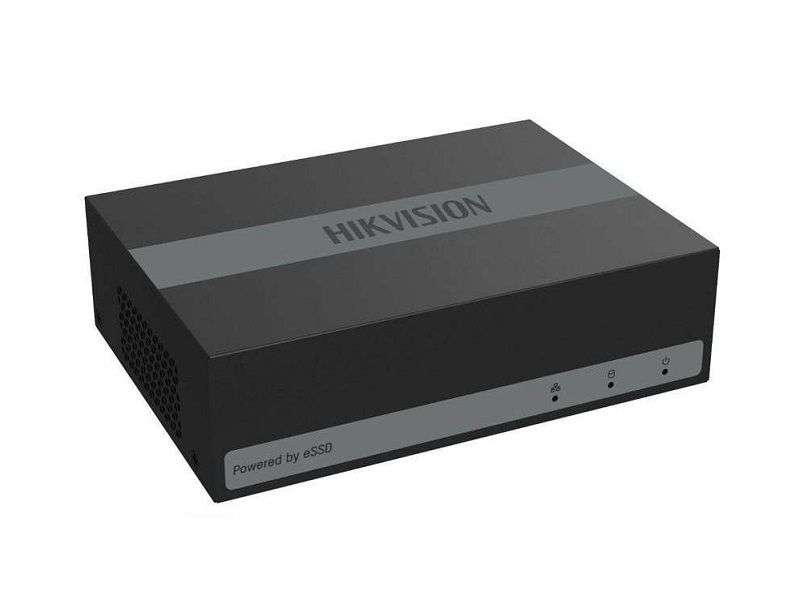

4-ch 1080p Lite 1U H.265 eSSD DVR
Powered by eSSD technology
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Scene-adaptive bitrate control video compression
Up to 1080p Lite@30 fps encoding capability
Low power consumption
Audio via coaxial cable
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Recording
Video Compression
H.265 Pro/H.265
Encoding Resolution
1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
Frame Rate
Main stream:
1080p Lite/720p/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N)
Note:
1080p Lite/720p is 15 fps by default
Sub-stream:
4CIF@15 fps; CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate
According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
Stream Type
Video, Video & Audio
Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Video And Audio
IP Video Input
1-ch
Up to 1080p resolution
Support H.265+/H.265 IP cameras
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
HDTVI Input
1080p25, 1080p30, 720p25, 720p30
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
Support
HDMI Output
1-ch, 1920 d7 1080/60Hz, 1280d7 1024/60Hz, 1280 d7 720/60Hz
VGA Output
1-ch, 1920d7 1080/60Hz, 1280 d7 1024/60Hz, 1280d7 720/60Hz
Video Output Mode
HDMI/VGA simultaneous output
Audio Input
4-ch via coaxial cable
Audio Output
1-ch via HDMI
Synchronous Playback
4-ch
Network
Total Bandwidth
64 Mbps
Incoming bandwidth: 4 Mbps
Remote Connection
32
Network Protocol
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP`99, HTTPS
Network Interface
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
Capacity
Built-in 330 GB eSSD (300 GB available)
Note:
The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only.
USB Interface
Rear panel: 2 d7 USB 2.0
Alarm In/Out
N/A
General
Power Supply
12 VDC, 1 A
Consumption
5.4 W (with eSSD)
Working Temperature
-10b0C to 45 b0C (14b0F to +113 b0F)
Working Humidity
10% to 90%
Dimension (Wd7 D d7 H)
151d7 121 d7 46 mm (5.94d7 4.76 `d7 1.81 inch)
Weight
0.5 kg (with eSSD, 1.1 lb.)
What's in the box
1 X DVR
