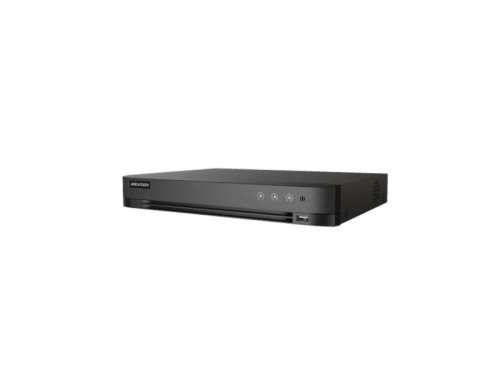

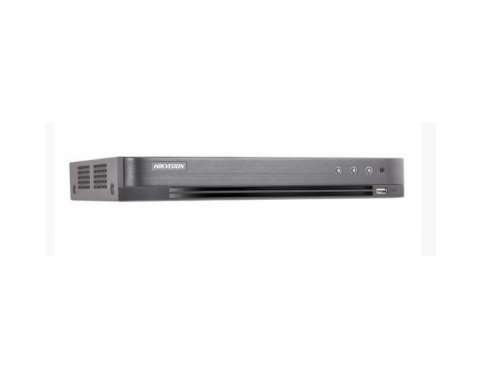

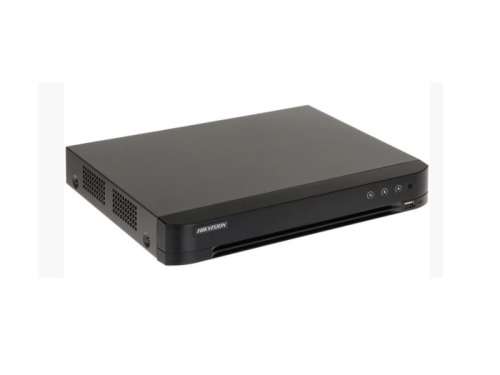

The IDS-7204HQHI-M1/S digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), IP - Hikvision and PAL interface is a professional device applicable in surveillance systems. The recorder supports AcuSense technology, allowing to filter false alarms based on the recognition of people and vehicles.
4 channels and 1 HDD 1U AcuSense DVR
False alarm reduction through human and vehicle target classification based on deep learning
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 6 network cameras can be connected.
AcuSense technology
H.265 video compression
Support Turbo HD video input
High definition real time recording
Easy event search during playback
Hdmi output at up to 4k resolution
Live view from smart device or internet
Two way audio
External storage devices backup: Backup to USB drive (pendrive)
Searching and playback the records: Records searching: timeline or file list. Playback: forward, fast, slow.
Playback max. 4 cameras in the same time
Network interface: 1 x RJ-45 - 10/100 Base-T
Bitrate: 32 ... 6144 kbps
Network functions: Network Client Software and IE browser: live view, playback and backup of the records, partial configuration of the recorder parameters
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Mobile phones support: Port no.: 8000 or access by a cloud (P2P)
Android: Darmowa aplikacja iVMS-4500 or Hik-Connect
iOS (iPhone): Darmowa aplikacja iVMS-4500 or Hik-Connect
Default IP address: DHCP or 192.168.1.64
Default admin user / password: admin / -
Web browser access ports: 80
PC client access ports: 554 RTSP, 8000
Mobile client access ports: 8000
Port ONVIF: 80
RTSP URL:
rtsp://user:password@192.168.1.64:554/Streaming/Channels/channel_no01/ - Main stream
rtsp://user:password@192.168.1.64:554/Streaming/Channels/channel_no02/ - Sub stream
Alarm inputs / outputs:
PTZ control: RS-485 PELCO-D/P
Control compatible with coax HD-TVI Hikvision
Motion Detection: Split the screen into zones : 22 x 18 motion zones
Main features:
DVR from the AcuSense series
Intelligent Image Analysis : intrusion, crossing the line (tripwire), face detection, Deep Learning technology
Filtering of false alarms based on the recognition of persons and vehicles
USB: 2 pcs USB 2.0
Mouse support:
IR remote controller in the set:
Power supply: 12 V DC / 1.5 A (power adapter included)
Color: Black
Weight: 1.17 kg
Dimensions: 315 x 248 x 45 mm
Supported languages: Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian
Manufacturer / Brand: Hikvision
