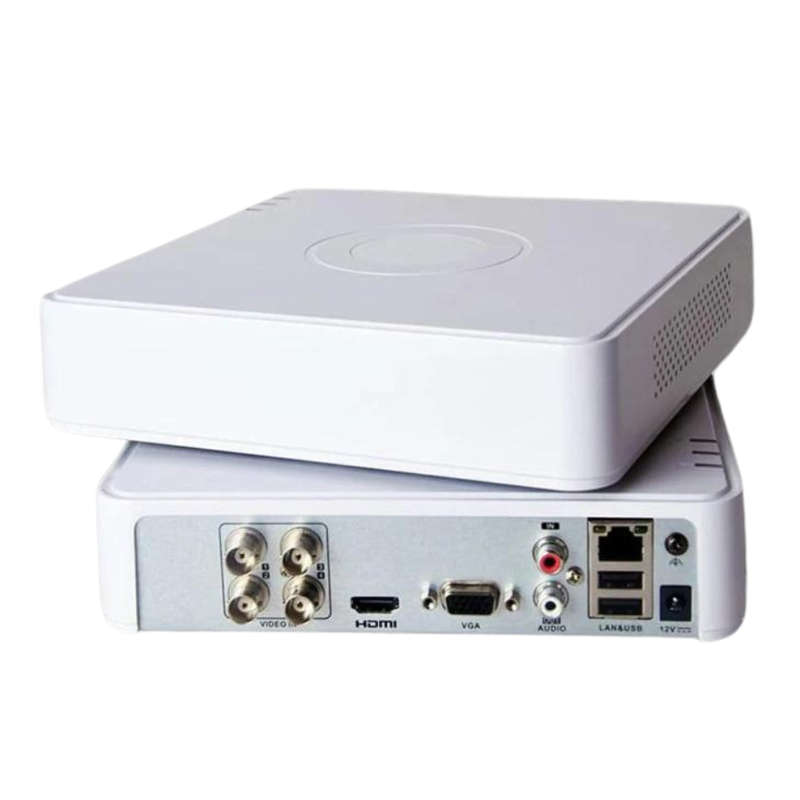

4-ch 1080p Lite Mini 1U H.265 DVR
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 5-ch IP camera input (up to 1080p)
Encoding ability up to 1080p lite @ 25/30 fps
Max. 1200 m for 720p HDTVI signal
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
4CIF/CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate
32 Kbps to 4 Mbps
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Video And Audio
IP Video Input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 `d9), supporting coaxitron connection
HDMI Output
1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
HDMI/VGA simultaneous output
VGA Output
1-ch, 1920 `d7 1080/60Hz, 1280 `d7 1024/60Hz, 1280 `d7 720/60Hz, 1024 `d7 768/60Hz
HDMI/VGA simultaneous output
CVBS Input
Support
Synchronous Playback
4-ch
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
Audio Output
1-ch, RCA (Linear, 1 K`d9)
Audio Input
1-ch RCA (2.0 Vp-p, 1 K`d9)
4-ch via coaxial cable
Two-Way Audio
Reuse the first audio input
Network
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP`99, HTTPS
Remote Connection
32
Network Interface
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 4 TB capacity for each disk
USB Interface
Rear panel: 2 `d7 USB 2.0
Alarm In/Out
N/A
General
Power Supply
12 VDC, 1.5 A
Consumption
16 W
Working Temperature
-10 `b0C to 55 `b0C (14 `b0F to +31 `b0F)
Working Humidity
10% to 90%
Dimension (W `d7 D `d7 H)
200 `d7 200 `d7 45 mm (7.9 `d7 7.9 `d7 1.8 inch)
0.8 kg (1.8 lb)
