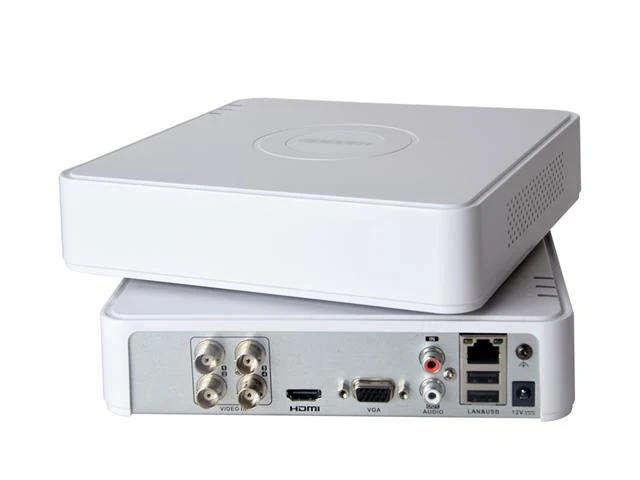

The DS-7104HGHI-M1 DVR is a compact and reliable device used to record and store video footage from connected security cameras. It offers advanced features for monitoring and managing surveillance systems effectively.
Features:
- High Definition Recording: The DVR supports high-definition video recording, allowing for clear and detailed footage from connected cameras. This ensures that users can capture important details with clarity.
-
Analog and HD-TVI Camera Support: It is compatible with both analog cameras and HD-TVI (High Definition Transport Video Interface) cameras, providing flexibility in camera selection and integration.
-
Multiple Channels: The DVR supports multiple channels, allowing users to connect and monitor several cameras simultaneously. This makes it suitable for small to medium-sized surveillance setups.
-
Remote Access: Users can remotely access the DVR through a network connection, enabling live viewing and playback of recorded footage from anywhere with internet access. This feature enhances monitoring capabilities and allows for quick response to security events.
-
Motion Detection and Alerts: The DVR is equipped with motion detection capabilities, which can trigger alerts or notifications when motion is detected in the monitored area. This helps in proactive security monitoring and event detection.
-
Easy Installation and Setup: The DVR is designed for easy installation and setup, making it suitable for both DIY and professional surveillance installations. Intuitive user interfaces and setup wizards streamline the initial configuration process.
-
User-Friendly Interface: The DVR features a user-friendly interface with intuitive navigation menus and controls, making it easy for users to access and manage surveillance settings and configurations.
Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 5-ch IP camera inputs (up to 2 MP)
Up to 1080p Lite@30 fps encoding capability
Max. 1200 m for 720p HDTVI signal
-Motion Detection 2.0
Human/Vehicle Analysis; Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
-Recording
Video Compression; H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF, For 720p stream access: 720p/WD1/4CIF/VGA/CIF, For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N), For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N), For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
What's in the box

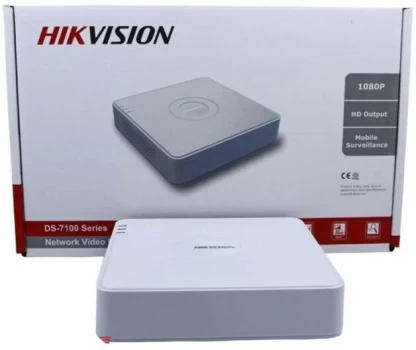

1 x DVR DS-7104HGHI-M1
1 x 12V Power Supply
1 x Mouse
1 x HDD Cable Set
1 x HDD Screws Set
1 x Manual
