Description:

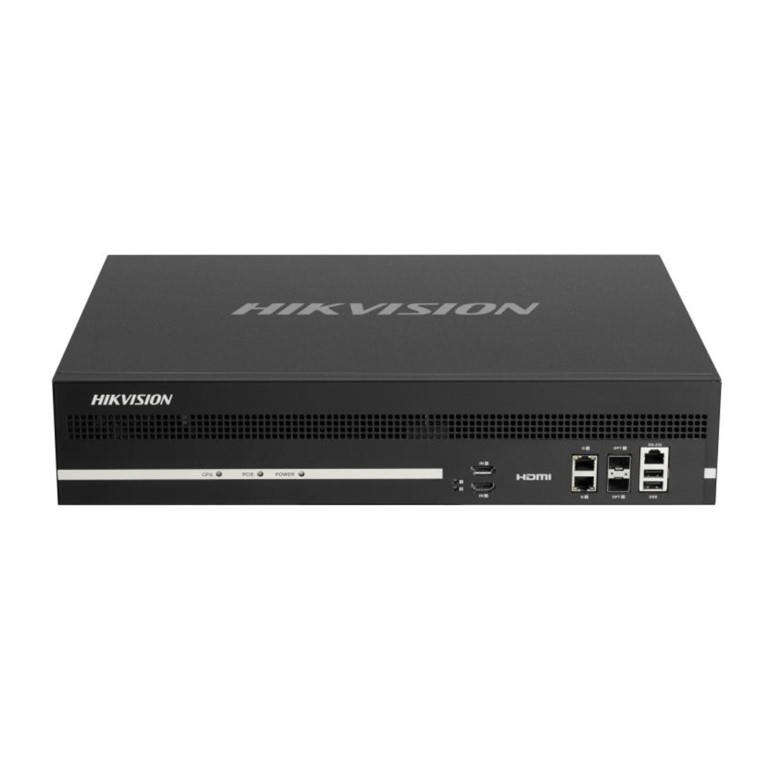

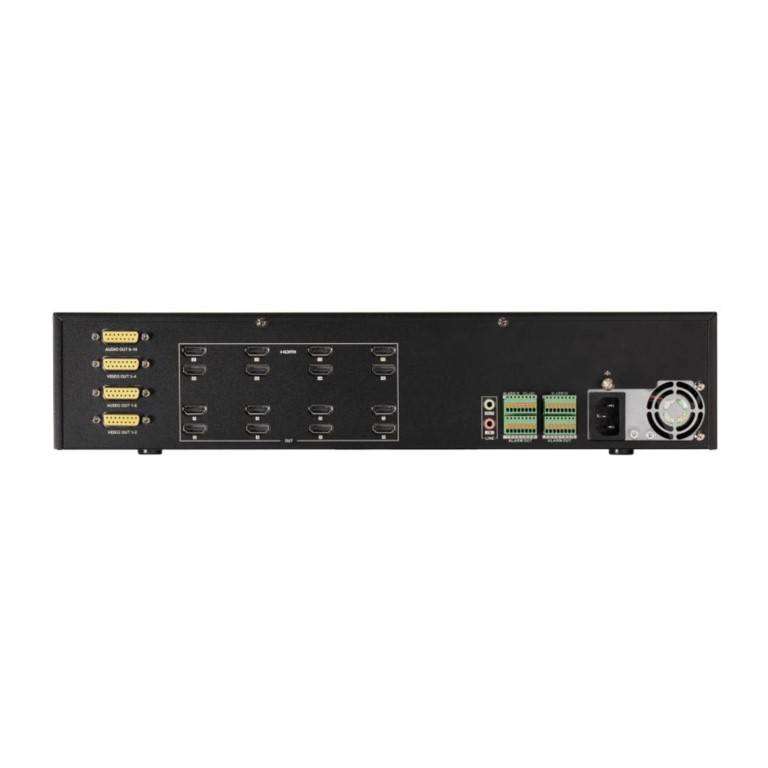

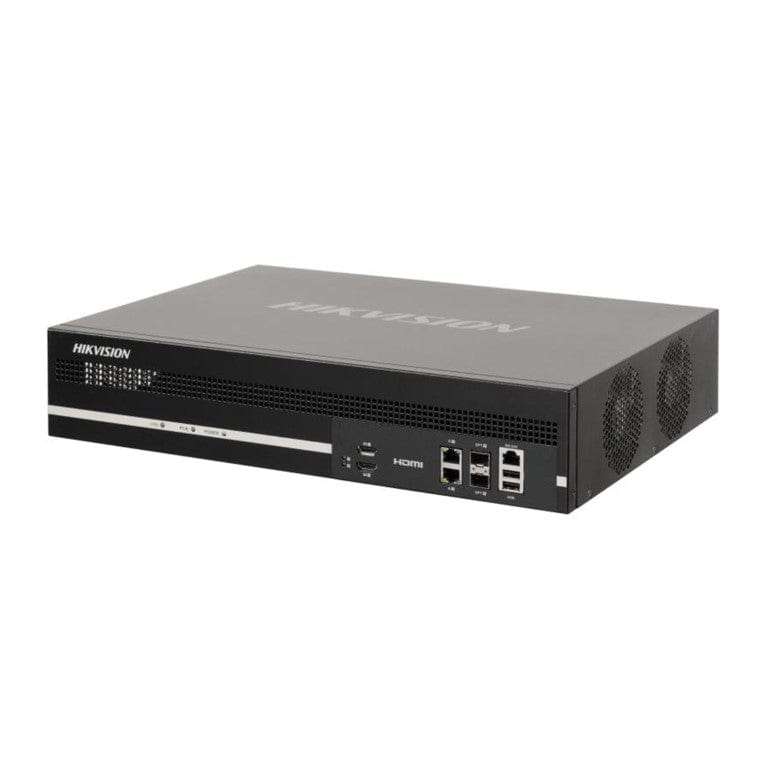

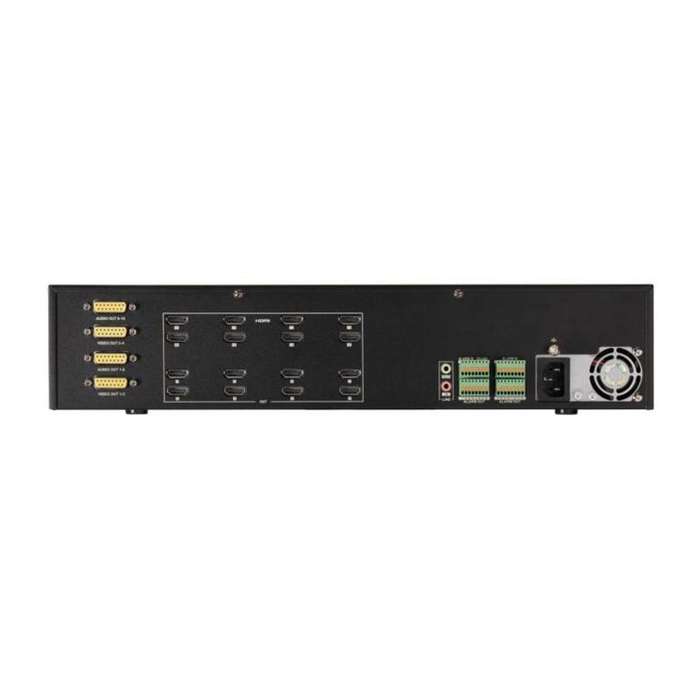

Hikvision 4K Video Decoder DS-6916UDI
DS-6900UDI Series decoders are developed on the basis of embedded hardware platform. DS-6916UDI supports HDMI 1.4, BNC (to DB15) output port decoding, and multiple video stream formats, like H.265, H.264, MJPEG, H.264+ and H.265+ with strong decoding performance. It supports H.265/H.264 decoding with resolution of no more than 3200 W and 4K ultra high definition outputs. It is a new generation of decoder launched by our company for HD network cameras, which can be widely used in various video security system projects.
Features
Video Input
Support computer, video conference terminals and other devices to serve as video input signal source
Support HDMI 4K signal inputs
Support network camera, NVR, and other devices to serve as network signal source
Support embedded HDMI audio input; audio input supports 16 bit and 48K Hz, two audio channels and stereo sound
Support 2-ch 1080p@50/60 or 1-ch 4K@30 encoding via HDMI 1.4 input interface
Video Output
Support 4K (3840 × 2160@30 Hz) UHD video output via HDMI 1.4 output interface
Support two audio output methods: embedded HDMI audio output and external audio output
Adopt frame synchronization technology to ensure complete synchronization of images from all output ports, complete pictures, smooth playback, and without lag, frame loss, tearing or splicing
Video Encoding and Decoding
Support H.264 and H.265 encoding of input boards, and sub-stream and mainstream encoding; the default encoding format is H.264
Support network cameras, NVR, and other network sources decoding of output boards, sub-stream and main stream decoding including H.264, H.265, Smart264, Smart265, MJPEG, HIK264 and main encapsulation formats such as PS, RTP, TS, ES
Support up to 256 video decoding channels and simultaneously decoding of 128-ch 200 W or 256-ch 720p video decoding on the wall
Support decoding streams of multiple resolution no more than 32 MP
G.722, G.711A, G.726, G.711U, MPEG2-L2, AAC, MP3, PCM audio compression
Support rotate mode of front-end cameras decoding and up to 2560 × 1440 decoding output
Two decoding modes: active decoding and passive decoding
Support encryption stream, multi-channel stream, and smart stream decoding
Support stream editing and switching, and auto switching to the sub stream when the divided window quantity reaches the upper limit
Support remote video files decoding output
Video Wall
Support single video wall splicing, window opening, window roaming, scene switching, and windows switching
Support up to 3 1080p or 1.5 4K signal source windows per screen and each signal source window can be divided into 1, 2, 4, 6, 8, 9, 12, 16, and 25 windows
Support up to 64 scenes. You can customize the video wall layout and save it as a scene
Support 256 auto-switching plans. You can customize the camera, scenes, and time for each plan
You can double click the roaming window to zoom in and zoom out for one roaming window or divided roaming sub-window
Support displaying output channel number
Support operating network signal sources on video wall in eight directions, including auto-scanning, adjusting aperture, changing the focal length, focusing, and calling preset
Support starting/stopping the live view of the window, starting/stopping decoding, starting/stopping switching windows, turning on/off the sound, displaying the window on the top/bottom layer, and other operations
Support video recording playback. You can start or stop playback and select the video recording time
Support using smart wall clients to cast the screen on the wall
Support the live view of network signal sources over RTP/RTSP
Device Access
Support docking with 32 MP PanoVu series cameras, fisheye cameras, and conventional front-end network cameras, DVR, NVR, and XVR
Support complete software development kit (SDK) for third-party developers
Support using the ONVIF and GB28181 protocol to access the decoder
Support LCD information interactive, including display information acquirement, image settings, series ports control, time synchronization, backlight parameters configuration and acquirement, output port auto-binding, error code reporting
Maintanence
Support using network keyboard or serial port keyboard to control the device, and support window switching, group operation and auto-switching, scene switching, PTZ control, and video wall playback via keyboard
Support the access and operation via PC client and Web client
Support Chrome 45+
Use the built-in gigabit switching network
Supports optoelectronic adaptation, link aggregation, and NAT
Support remote parameters configuration, getting system status and logs
Support daily maintenance such as remote restart, restore default settings and upgrading
Support auto fault detection and device exception alarm, including network disconnection, IP conflict, illegal access, temperature overshoot, fan status exception, decoding signal source exception and device exception
Support user permission management, allowing users with different permissions to use designated resources and operate designated video wall modules
Support visualization in operation and maintenance by displaying the network topology structure and keynote network status of main control units (MCU) and service boards
Support NTP time synchronization and manual time synchronization
Packing List
1x Decoder
2x DB15M to 4x BNC (4-ch CVBS Video Patch Wire)
2x DB15M to 8x BNC (8-ch Audio Patch Wire)
1x User Manual
1x Hanger
1x Power Cord
1x Mat
1x Grounding Wire
