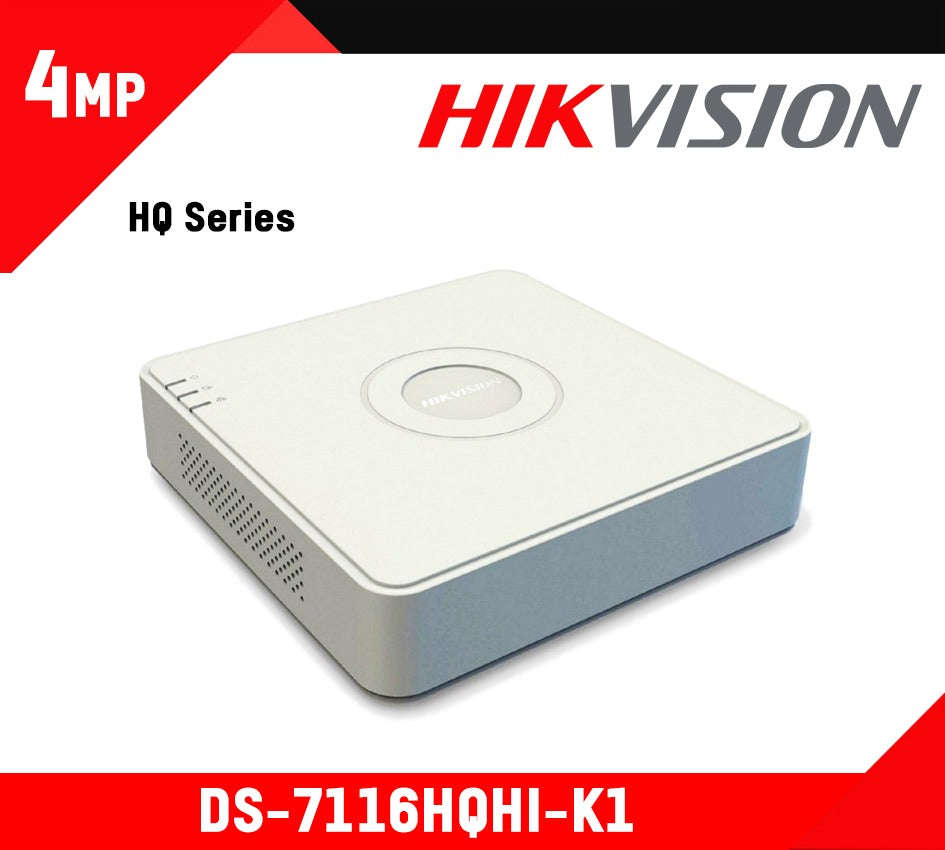

Hikvision 16 Channel DVR - White -4MP
Model: DS-7116HQHI-K1
Model DS-7116HQHI-K1
Audio Input: 1-ch
Video Compression: H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input: 16-ch,BNC interface (1.0Vp-p, 75 `d9)connection
Supported camera types: 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of
DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
Support CVI input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
support CVBS input
Video Input Interface: BNC (1.0 Vp-p, 75`d9)
Audio Compression: G.711u
Audio Input Interface: RCA (2.0 Vp-p, 1 k`d9)
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 K`d9) (using audio input)
HDMI/VGA Output: 1920 `d7 1080 / 60 Hz,1280 `d7 1024 / 60 Hz, 1280 `d7 720 / 60 Hz, 1024 `d7 768 / 60 Hz
Recording resolution: When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
Frame Rate: Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP@15fps
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps-6 Mbps
Stream Type: Video/Video&Audio
Audio Output: 1-ch RCA(Linear, 1k`d9)
Audio Bit Rate: 64kbps
Dual Stream: Support
Playback Resolution: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback: 16-ch
Remote connections: 128
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP`99, HTTPS, ONVIF
Interface Type: 1 SATA Interface
Capacity: Up to 6 TB capacity for each disk
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces
Power Supply: 12V DC
Consumption: 15 W(without hard disks)
Working Temperature: -10 `baC ~+55 `baC (14 `baF ~ 131 `baF)
Working Humidity: 10% ~ 90%
Chassis: Mini 1U chassis
Dimensions: 285 `d7 210 `d7 45 mm
(11.2`d7 8.3 `d7 1.8 inch)
Weight: 1 kg (2.2 lb)
