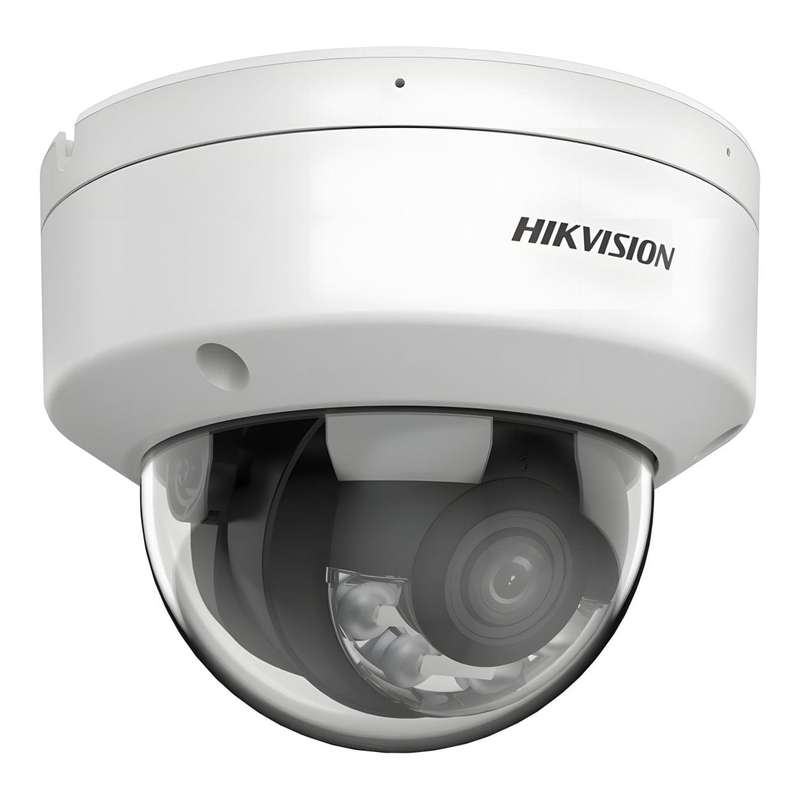

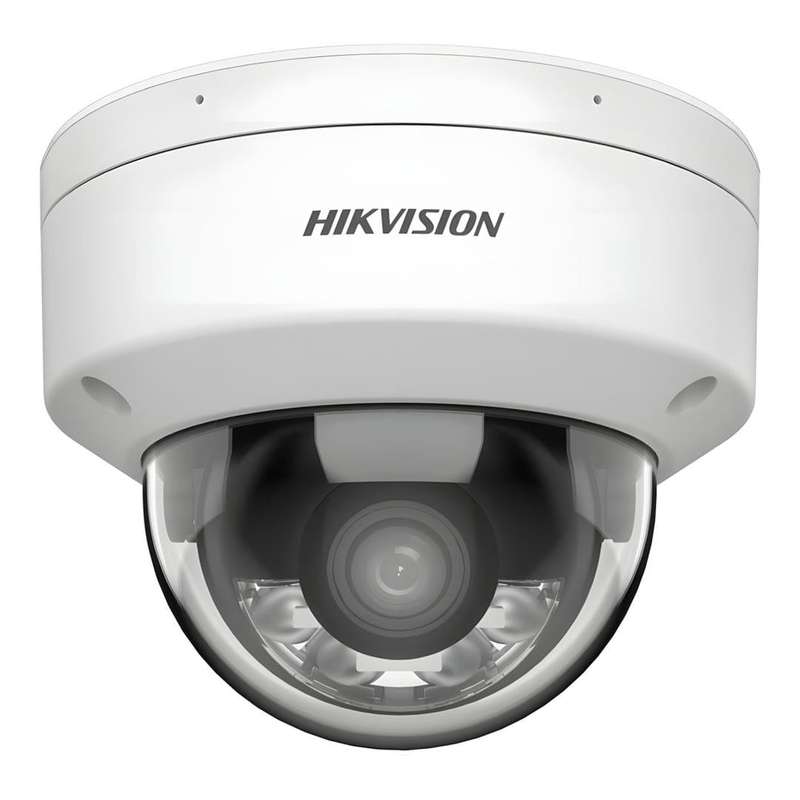

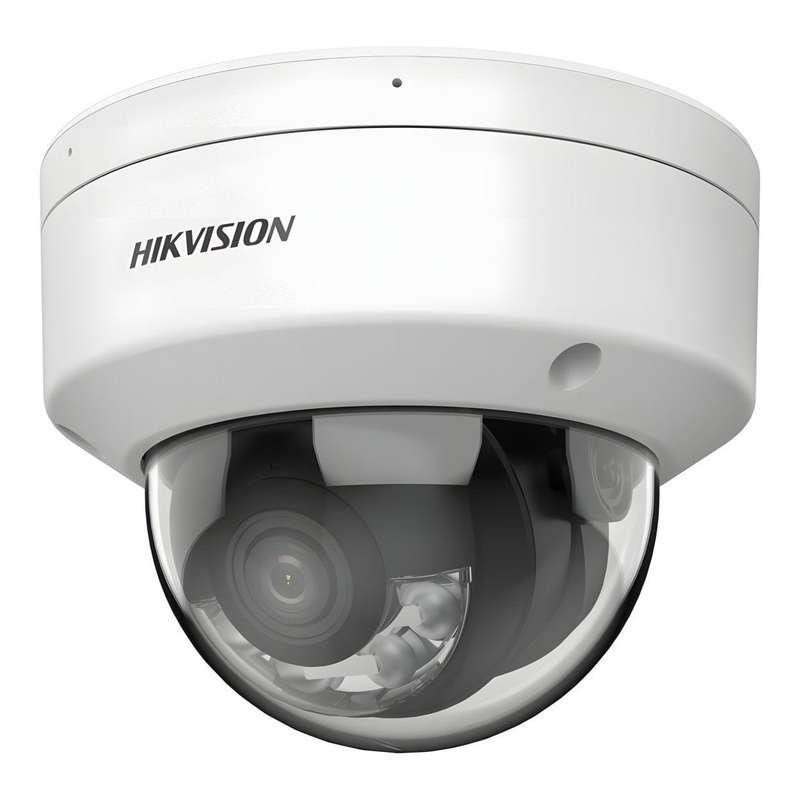

Hikvision 4MP 2.8mm Smart Hybrid Light with ColorVu Fixed Dome Network Camera DS-2CD2147G2H-LISU(2.8mm)

Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond.

By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios.

Features:

• High quality imaging with 4 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• -S: 1x input (line in)
• Water and dust resistant (IP67) and vandal-resistant (IK10)

Technical Specification:

Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.0005 Lux - (F1.0, AGC ON), 0 Lux with light
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Lens
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV:

• 2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7°
• 4 mm, horizontal FOV 89.2°, vertical FOV 45.5°, diagonal FOV 108.2°

Lens Mount: M16
Iris Type: Fixed
Aperture: F1.0
Depth of Field:

• 2.8 mm: 2.5 m to
• 4 mm: 3.1 m to

DORI
DORI:

• 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
• 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream:

• 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Note: The third stream is supported under certain settings.

Video Compression:

• Main stream: H.265 / H.264 / H.264+ / H.265+
• Sub-stream: H.265 / H.264 / MJPEG
• Third stream: H.265 / H.264

Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio
Audio Compression: -U: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Type: -U: Mono sound
Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 16 Kbps to 64 Kbps (AAC-LC), 32 to 192 Kbps (MP2L2), 8 to 320 Kbps (MP3)
Audio Sampling Rate: -U: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering: -U: Yes

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host: Up to 32 users; 3 user levels: administrator, operator, user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR). Memory card encryption and health detection supported with high-end Hikvision memory card.

Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser:

• Plug-in required: IE 10, IE 11
• Plug-in free: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
SNR: 52 dB
Wide Dynamic Range (WDR): 130 dB
Privacy Mask: 4 programmable polygon privacy masks

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD / microSDHC / microSDXC, up to 512 GB
Built-in Microphone: -U: Yes
Audio: -S: 1 input (line in) and 1 output (line out), two-core terminal block
Alarm: -S: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key: Yes

Event
Basic Event: Motion detection (support alarm triggering by specified target types: human and vehicle), video tampering alarm, exception
Linkage: Upload to FTP / NAS / memory card, notify surveillance center, trigger recording, trigger capture, send email
Smart Event: Scene change detection

Deep Learning Function
Face Capture: Yes
Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; support alarm triggered by specified target types (human and vehicle)

General
Power: 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 8.5 W
Material: Base and cover: aluminum alloy
Dimension: Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Package Dimension: 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Weight: Approx. 525 g (1.2 lb.)
With Package Weight: Approx. 750 g (1.7 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
Language: 33 langua...
